Skyjacker 8.5″ Suspension Lift Kit – F17852K

Skyjacker

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 8.5-inch suspension lift for 2017 Ford F-250 Super Duty
  • Class II 4-link system with front coil springs and rear lift blocks with U-bolts
  • Drop pitman arm and heavy-duty track bar relocation bracket included
  • New variable rate coils for improved ride quality

Description

Overview

The Skyjacker F17852K is an 8.5-inch suspension lift kit for the 2017 Ford F-250, using a Class II 4-link system. It is a redesign for the 2017 models. It includes front coil springs, rear lift blocks with U-bolts, and brackets that relocate the track bar, radius arm and steering stabilizer.

The kit uses new variable rate coils for improved ride quality, along with radius arm brackets that correct the geometry. A fully adjustable 4-link option is available with this kit.

Key features

  • 8.5-inch lift
  • Class II 4-link system
  • New variable rate coil springs
  • Heavy-duty track bar relocation bracket
  • Track bar, radius arm and steering stabilizer relocation brackets
  • Drop pitman arm included
  • Rear lift blocks and U-bolts
  • Fully adjustable 4-link option available

Class II 4-link geometry

A 4-link rear locates the axle with four control links, which keeps axle movement controlled under acceleration and braking. Changing the link angles can alter pinion angle and axle position, so the adjustable version is a common choice when the lift is this tall. Radius arm brackets and track bar relocation keep the axle centered under the body.

Variable rate coils are designed to change stiffness through their travel, which can give a smoother feel unloaded and firmer support when hauling. Drop pitman arms help set steering geometry after a lift, so the front end should be aligned once the height is set. Inspect link bushings, track bar mounts and bump stops during regular service, and check driveshaft angles after any link adjustment.

  • Link bushings and mounts checked for wear
  • Track bar bracket bolts checked for torque
  • Clearance checked at full steering lock

Specifications

Brand Skyjacker
Part number F17852K
UPC 700007998371
Lift 8.5-inch suspension lift kit
Suspension system Class II 4-link
Front springs Variable rate coil springs
Rear lift method Lift blocks and U-bolts
Pitman arm Drop pitman arm included

Vehicle fitment

This kit is for the 2017 Ford F-250, which is the F-250 Super Duty. It is an all new redesign for the 2017 models.

Other Ford F-250 years and trucks are not covered by this entry. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A lift this size changes the front and rear geometry, so the track bar, radius arm and steering stabilizer brackets are part of the installation. Align the front end and check the driveshaft angles after the 4-link is set. Check tire and fender clearance for the new height.

What’s included

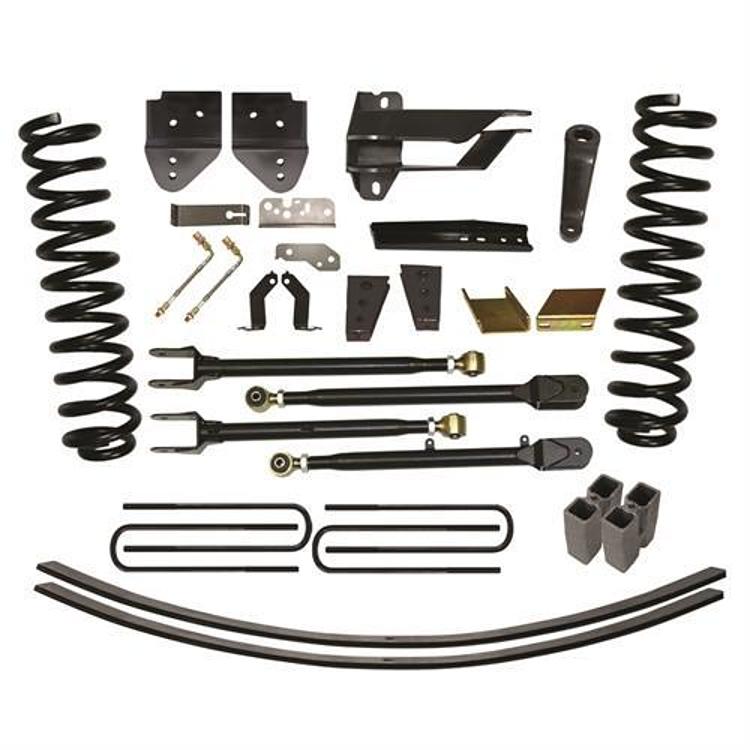

The kit includes front coil springs, track bar, radius arm and steering stabilizer relocation brackets, a heavy-duty track bar relocation bracket, a drop pitman arm, rear lift blocks and U-bolts.

SKU: SKYF17852K Category:

Specification

Shipping weight 272.60 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty likely fits2017All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the F17852K fit a 2017 Ford F-250?

Yes. This kit is for the 2017 Ford F-250, an all new redesign for 2017 models. Confirm your trim and drivetrain before ordering.

Does this kit include shocks?

The kit contents covered here are coil springs, brackets, a drop pitman arm and rear lift blocks with U-bolts. Check the full contents against your installation before ordering, including any shocks.

What is a Class II 4-link system?

A Class II 4-link is a rear suspension arrangement that uses four links to locate the axle. Fully adjustable 4-links are available as an option with this kit.

How often should 4-link bushings be inspected?

Inspect them after the first few drives and then at regular service intervals. Look for cracking, play in the links, and clunks when accelerating or braking, which can point to worn bushings.

Are bump stops worth checking after a lift?

Yes. Lifting changes how far the suspension travels before the bump stops make contact, so check clearance at full compression. Worn or cracked bump stops should be replaced before regular driving.
