Overview
The Rough Country 5-inch GM suspension lift kit with N3 front lift struts, part number R/C28101, fits the 2007–2013 Chevrolet Suburban 1500 and Tahoe and the 2007–2013 GMC Yukon and Yukon XL 1500. It includes lifted knuckles, front and rear high-clearance crossmembers and a set of lifted coil springs with front N3 lift coilover shocks.
The kit provides clearance for a 33-inch tire on the 5-inch option or a 35-inch tire on the 7.5-inch option. Both kits include sway-bar links, shock extensions, brake line brackets, a lower skid plate and grade 8 hardware. This lift is 5 inches, with a height range of 4 to 5.5 inches.
Sway-bar drop brackets and differential drop brackets keep the components aligned after lifting. The setup is designed to ride close to factory while giving the truck a more aggressive stance.
Key features
- Lifted knuckles
- 1/4-inch thick steel front and rear high-clearance crossmembers
- Lifted coil springs
- Front N3 lift coilover shocks
- Sway-bar links, shock extensions and brake line brackets
- Sway-bar drop brackets and differential drop brackets
Choosing a lift height
A lift changes the geometry of the front and rear suspension, so the right height depends on the tires you plan to run and how the truck is used. Taller tires need more clearance at full compression and in the wheel wells, while a moderate lift keeps the driveline angles closer to factory. Consider how often the truck carries loads or tows before choosing a height.
Lift kits with new knuckles and coil springs usually change the front end the most. Expect the steering feel and braking to shift slightly after installation, and plan for an alignment once the new parts are settled. Shock length matters as well, since a longer travel setup can change how the truck settles on pavement.
- Match tire diameter to the wheel well and fender trim
- Plan for an alignment after installation
- Recheck torque on lift hardware after the first few drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C28101 |
| Lift size | 5 inches |
| Front shocks | N3 lift coilover |
| Rear shocks | None listed |
| Rear lift component | Coil spring |
| Crossmembers | 1/4-inch steel, high clearance |
| Hardware | Grade 8 |
| Wheel size | 18 inches or larger |
| Lift height range | 4 to 5.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2013 Chevrolet Suburban 1500 in its LS, LT, LTZ and Z71 versions, the 2007–2013 Chevrolet Tahoe, the 2007–2013 GMC Yukon and the 2007–2013 GMC Yukon XL 1500.
Auto Ride, auto leveling, electric steering and AWD models are not covered. Model years outside 2007–2013 are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Minor cutting and drilling is required, and 18-inch or larger wheels are needed. Read the installation instructions for the proper tire and wheel combinations before installing the kit.

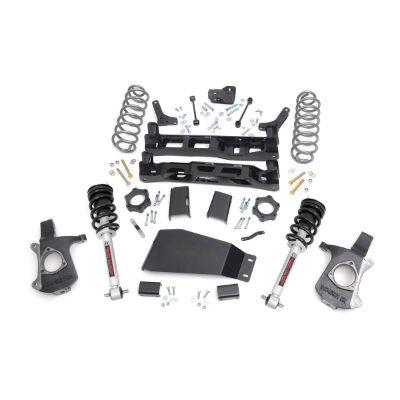

What’s included
Lifted knuckles, front and rear crossmembers, lifted coil springs, front N3 lift coilover shocks, sway-bar links, shock extensions, brake line brackets, a lower skid plate, grade 8 hardware and the drop brackets.
