Rubicon Express Degree Shim 2.5 Inch Wide X 6 Degree Steel – RE1468

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE1468 6 degree steel shim for leaf springs
  • Fits leaf springs that are 2.5 inches wide
  • Designed to become part of the spring pack rather than float on the perch
  • Can be installed at the front or rear to set pinion angles
  • Center pins not included; sold in pairs

Description

Overview

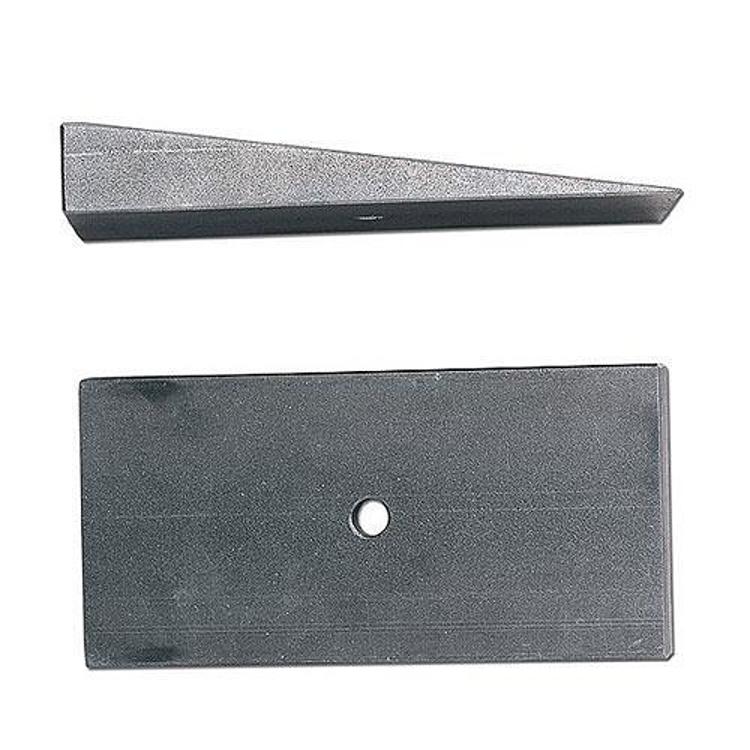

The Rubicon Express RE1468 is a 6 degree shim made from solid steel for leaf springs that are 2.5 inches wide. It sets the pinion angle and can be installed at the front or the rear of the vehicle.

The shim becomes part of the spring pack instead of floating between the pack and the spring perch. Many other shims float in that gap and reduce how far the center pin engages. This design resists coming loose or falling out, which helps on trail use.

Key features

  • Solid steel construction, which Rubicon Express builds for trail durability
  • 6 degree angle for setting pinion angles
  • Designed to become part of the spring pack rather than float on the perch
  • Can be installed at the front or the rear of the vehicle
  • Made for 2.5-inch-wide springs only
  • Sold in pairs

Setting pinion angle

Pinion angle affects driveline vibration, U-joint life and how the axle carries torque under load. A shim changes the angle by lifting one end of the spring, so the change should be checked with an angle gauge on the pinion yoke after the vehicle is at ride height. Small adjustments matter, and a repeat check after the first few drives catches any settling.

Because the shim sits inside the spring pack, the spring’s condition matters. Worn leaves, broken clips or a sagging spring can shift the angle again over time. When the pack is reassembled, look for worn center bolts and inspect the spring eye bushings. Replacing worn pack hardware along with the shim usually gives a more stable result on rough trails.

  • Measure the pinion angle with a gauge after installation
  • Inspect spring clips and center bolts during reassembly
  • Recheck the angle after the first few drives

Specifications

Brand Rubicon Express
Part number RE1468
UPC 614901438390
Angle 6 degrees
Spring width 2.5 inches
Material Solid steel
Center pins Not included
Quantity Sold in pairs

Vehicle fitment

Fit depends on spring width, so measure your leaf springs before ordering. This shim is made for 2.5-inch-wide springs only. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the shim is meant to sit inside the spring pack, the center pin has to engage it fully. Check that the pin reaches the shim before the spring is loaded.

What’s included

Degree shims, sold in pairs.

Not included: center pins.

SKU: R/ERE1468 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 6.00 × 4.00 × 4.00 in
brands

Questions & Answers

Does the RE1468 shim fit 2.5-inch-wide leaf springs?

Yes. It is made for leaf springs that are 2.5 inches wide, and it is for 2.5-inch-wide springs only. Measure your springs before ordering to confirm the width.

Does the RE1468 shim come with center pins?

No. Center pins are not included, so order them separately. The shim itself is sold in pairs, and the center pin has to engage the shim fully.

Can the RE1468 shim be used at the front and rear?

Yes. It can be installed at the front or the rear to set pinion angles. Once installed, it becomes part of the spring pack.

How do I check whether the center pin is engaging the shim?

Look at the pin and shim after the spring is assembled, before it is loaded. The pin should seat fully into the shim so the two stay aligned. If the pin sits high or sideways, disassemble and correct it before driving.

Should the pinion angle be rechecked after the shim is installed?

Yes. Recheck the angle after the vehicle is at ride height and again after the first few drives. Settling in the spring pack can change the angle, so a second check helps confirm the setting.
