Rubicon Express 3.5 Inch Extreme Duty 4-Link Front/Rear Radius Long Arm Lift Kit with Mono-Tube Shocks – JK4R43M

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch extreme-duty 4-link front and radius rear long arm lift with Mono-Tube shocks
  • Adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • Designed for installation without welding
  • Fits the 2007-2018 Jeep Wrangler (JK)

Description

Overview

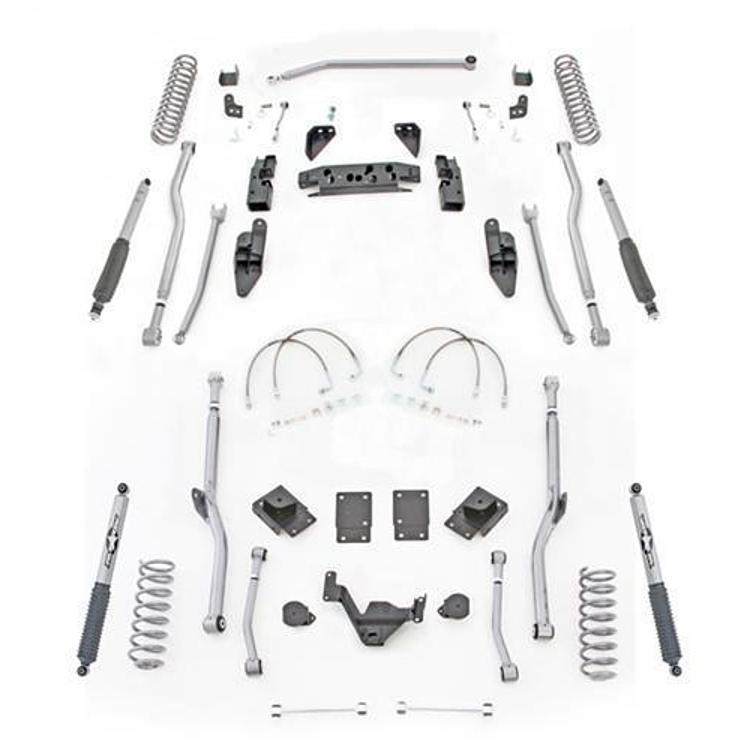

The Rubicon Express JK4R43M is a 3.5-inch extreme-duty long arm lift kit with a 4-link front, a radius rear and Mono-Tube shocks included. It fits the 2007-2018 Jeep Wrangler (JK) and belongs to Rubicon Express’s JK suspension line. It is the shock-equipped version of the JK4R43 and uses the same arm set.

The arm set uses adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints and PT-Meg Super-Ride bushings. The system delivers control and performance without limiting articulation. The full-width transmission crossmember adds durability and frame rigidity, and the install needs no welding. Optional belly pan and CNC-machined steering knuckle upgrades are available.

Key features

  • 3.5-inch lift height, within the 3 to 4.99-inch range
  • Extreme-duty 4-link front and radius rear long arm layout
  • Mono-Tube shocks included
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Optional belly pan and steering knuckle upgrades

Geometry and alignment

Changing the front and rear arm layout affects more than ride height. The pinion angle, caster and driveline angles all shift once the arms are installed, and those angles set how the driveline and axles work under load. A shop that can measure and adjust them after the install helps keep vibration and premature joint wear in check.

Shocks are a related choice in this build. The Mono-Tube shocks included with the kit should be checked for mounting clearance as well, since worn bushings or mounts can undermine any shock setup. When the work is complete, a test drive at low speed helps reveal vibration or steering changes that need a follow-up adjustment.

  • Measure pinion and driveline angles after the install
  • Inspect bushings and mounts before the first drive
  • Recheck hardware after the first few drives

Specifications

Brand Rubicon Express
Part number JK4R43M
UPC 70000651287
System type Extreme-duty 4-link front and radius rear long arm
Lift height 3.5 inches (chart range 3 to 4.99 inches)
Rear lift method Radius arm
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Shocks Mono-Tube, included

Vehicle fitment

The kit fits the 2007-2018 Jeep Wrangler (JK) Unlimited and 4-door versions of that generation.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The radius rear and 4-link front change control arm and pinion geometry, so the alignment and driveline angles should be checked after installation. The Mono-Tube shocks come with the kit, so the shock installation follows the rest of the job.

What’s included

The kit includes the adjustable chromoly control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, the full-width transmission crossmember and Mono-Tube shocks.

Installing the kit involves changing the arm geometry at both ends, which the brand describes as part of the system’s control and articulation design. Once the job is finished, the alignment and driveline angles should be checked to confirm the new geometry is correct.

SKU: R/EJK4R43M Category:

Specification

Shipping weight 289.55 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2018Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK4R43M include shocks?

Yes. Mono-Tube shocks are included, which is the difference from the JK4R43 that has no shocks. Mono-Tube shocks are included, which is the difference from the JK4R43.

Which years does the JK4R43M fit?

The 2007 through 2018 Jeep Wrangler (JK) generation is the only one covered. Check that your year, model and trim match before you order.

Does it need welding?

No. The install needs no welding, since the full-width transmission crossmember and arm layout are designed to bolt in. Plan to check alignment after the install, because the radius rear and 4-link front change the geometry.

What is the rear arm design?

The rear uses a radius arm, and the front uses a 4-link layout. Both are part of the same kit, so the arm set is installed as one complete system.

How do I tell if the driveline needs attention after a long arm install?

Look for vibration at highway speed, clunks under acceleration or braking, and uneven wear on U-joints. Those signs often mean the driveline angles need measuring or adjusting. Have the angles checked before the vibration becomes a bigger problem.

Are bushings worth replacing during this kind of job?

Often yes. Worn bushings allow movement that changes alignment and can shorten the life of nearby parts. Inspect them while the arms are off, and replace any that show cracks, splits or looseness.
