Overview
The Rubicon Express JK4344M is a 4.5-inch extreme-duty long arm lift kit with a 4-link front, a 3-link rear and Mono-Tube shocks included. It fits the 2007-2018 Jeep Wrangler (JK) and belongs to Rubicon Express’s JK suspension line. It is the shock-equipped version of the JK4344, and it uses the same adjustable chromoly control arms, Super-Flex spherical ball joints and PT-Meg Super-Ride bushings.
The full-width heavy-duty transmission crossmember adds durability and frame rigidity. Installation does not need welding. Optional belly pan and CNC-machined steering knuckle upgrades are available. The kit falls in the 3 to 4.99-inch lift range.
Key features
- 4.5-inch lift height, within the 3 to 4.99-inch range
- Extreme-duty 4-link front and 3-link rear long arm layout
- Adjustable chromoly upper and lower control arms
- Super-Flex spherical ball joints
- PT-Meg Super-Ride bushings
- Full-width transmission crossmember
- Mono-Tube shocks included
- Optional belly pan and steering knuckle upgrades
Mono-Tube shock care
Mono-Tube shocks use a single tube design and are often chosen for steady damping on rough trails. Their seals and valving need the same attention as any shock. Check for oil seepage around the shaft and body, since a leaking unit loses damping quickly and can rattle loose at the mount. A lifted Wrangler with longer arms puts more angle into the shock, so the mounts and bushings deserve a look too.
Inspection is simple. After a run through rocks or mud, look over the shock bodies, eyelets and bushings, and tighten any loose fasteners. Replace a shock that feels weak or does not rebound smoothly, and replace shocks in pairs on the same axle so the ride stays even. Keep a spare set of bushings on hand if you wheel often, since they wear faster in dusty conditions.
- Check shock bodies for oil seepage
- Inspect eyelets and bushings after rough trails
- Tighten mounting hardware after the first install
- Replace shocks in pairs on the same axle
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JK4344M |
| UPC | 70000651286 |
| System type | Extreme-duty 4-link front and 3-link rear long arm |
| Lift height | 4.5 inches (chart range 3 to 4.99 inches) |
| Control arms | Chromoly upper and lower, adjustable |
| Joints | Super-Flex spherical ball joints |
| Bushings | PT-Meg Super-Ride |
| Shocks | Mono-Tube, included |
Vehicle fitment
It fits the 2007-2018 Jeep Wrangler (JK).
The TJ, LJ and JL generations are not included in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 4-link front and 3-link rear arms change control arm angles and pinion geometry, so the alignment and driveline angles should be checked after the install. Since the shocks are included, the suspension is complete once the kit is in place.
What’s included

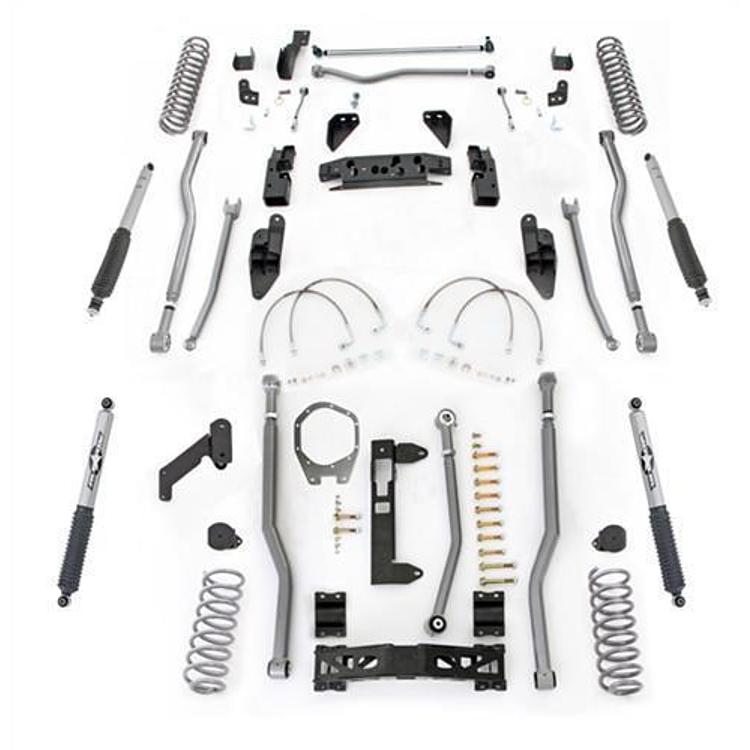

The kit includes the adjustable chromoly upper and lower control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, the full-width transmission crossmember and Mono-Tube shocks.
This 4.5-inch version uses the same adjustable chromoly control arms, Super-Flex spherical ball joints and PT-Meg Super-Ride bushings as the 3.5- and 5.5-inch kits in the series. The Mono-Tube shocks are included, so the lift is ready to install with the shocks already part of the package.
