Overview

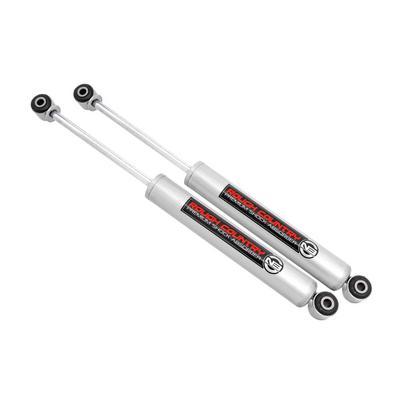

The Rough Country N3 rear shock R/C23220_I is a nitrogen-charged rear shock for 2009–2024 Ram 1500 trucks with a 3.5 to 5.5 inch lift. It uses eyelets at both ends and is sold as a pair.
The lift range is 3.5 to 5.5 inches, with a 3.5 to 5 inch figure also noted, so confirm your lift height before ordering. The extended length is 28.03 in and the collapsed length is 16.61 in. The shock has a 35mm piston, an 18mm chrome-hardened piston rod, a 54mm body and ten-stage variable valving.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal and rubber bushings
- Military spec damper fluid
Rear shock setup and ride height
Rear shocks control how the axle moves under the frame as the truck rolls over bumps and loads. Nitrogen-charged units resist foaming of the damping oil during repeated compression, which helps the feel stay consistent on long drives. Eyelet mounts are simple to service, and their bushings should be checked whenever the shocks come off.
Ride height matters because the shock length is tied to the lift. A truck lifted near the bottom of the range can use the shock differently than one near the top, so measure the rear height before ordering. When the shocks are installed, check that brake lines and the driveshaft clear the new units through full travel. A rear alignment check after installation is also a good idea.
- Measure rear ride height on level ground
- Confirm brake lines clear the shock body
- Check eyelet bushings for cracks
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23220_I |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | 3.5-5.5 in. (table lists 3.5-5 in.) |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Extended length | 28.03 in |
| Collapsed length | 16.61 in |
| Body diameter | 54mm |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec, rated to -40 C |
| Finish | Metallic silver paint |
| Warranty | The shock is covered by a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
The N3 shock fits 2009–2010 Dodge Ram 1500, 2011–2018 Ram 1500 and 2019–2024 Ram 1500 Classic trucks across their cab and trim packages. It is sized for a 3.5 to 5.5 inch lift.
The list covers Ram 1500 trucks only. Ram 2500 and Ram 3500 trucks and the 2008 and older Ram 1500 models are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the lift is a range rather than a single height, measure your truck’s current rear ride height before ordering. Check the rear alignment once the shocks are in place.
What’s included
Sold as a pair, with one N3 rear shock for each side.
