Overview

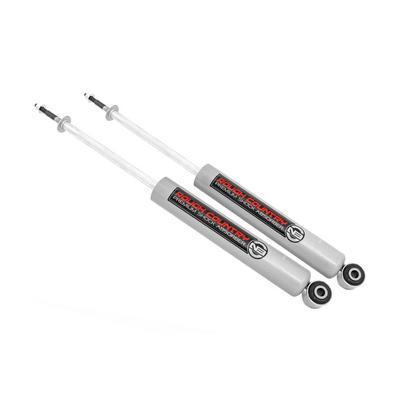

The Rough Country N3 rear shock R/C23208_A is a nitrogen-charged rear shock for 2007–2021 Toyota Tundra trucks with a 4 to 8 inch lift. It uses a stud at the top and an eyelet at the bottom, and it is sold as a pair.
This shock covers the higher end of the N3 rear lift range, with an extended length of 29.5 in and a compressed length of 17.24 in. It has a 35mm piston, an 18mm chrome-hardened piston rod and a 54mm shock body, plus ten-stage variable valving for damping control across the speed range.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal and rubber bushings
- Military spec damper fluid rated to -40 C
Stud and eyelet mounts
A stud top mount threads or bolts into a bracket and is secured with a nut, while an eyelet bottom mount pivots on a bolt through a bushing. Check that the truck’s upper and lower brackets match these mount types before installation, and inspect the nuts, bolts and bushings for wear.
Twin-tube shocks keep reserve fluid in an outer tube around the working cylinder. Fluid movement between the tubes controls damping, and steady temperatures help the shock hold its feel on long grades. On a 4 to 8 inch lift, the rear driveline angle can change, so check the pinion and driveshaft angle after installation and watch for vibration.
Heavy use on trails and towing wears damper fluid, bushings and seals faster than daily driving. Inspect the shock body for oil seepage, look for cracked bushings, and listen for knocking over bumps. Replacing shocks in pairs keeps the rear end balanced.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23208_A |
| Product line | N3 Performance |
| Shock type | Twin-tube |
| Position | Rear |
| Lift height | 4-8 in. |
| Top mount | Stud |
| Bottom mount | Eyelet |
| Body diameter | 54mm |
| Extended length | 29.5 in |
| Compressed length | 17.24 in |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec, rated to -40 C |
| Finish | Metallic silver paint |
| Warranty | The shock has a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
It is made for the 2007–2021 Toyota Tundra in its 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail models. It is sized for a 4 to 8 inch lift.
The list covers 2007–2021 Tundra trucks only, so 2022 and newer Tundras and the first-generation Tundra from 2000 to 2006 are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
At lifts of 4 to 8 inches, check the rear driveline angles and the ride height after installation. Confirm the stud top mount and eyelet bottom mount match your rear brackets before ordering.
What’s included
Sold as a pair, with one rear shock for each side.
