RockJock Johnny Joint Rear Trac Bar with RockJock Housing Bracket Kit – CE-9123N

RockJock 4x4

Shop Jeep Wrangler TJ Track Bars on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Johnny Joint rear trac bar with a heavy duty trac arm relocation bracket
  • 1-1/4 inch 4130 chrome moly tubing with 2 inch rod ends
  • Fitment list covers the 1997–2006 Jeep Wrangler (TJ) and 2004–2006 Wrangler (LJ) Unlimited
  • Part number CE-9123N

Description

Overview

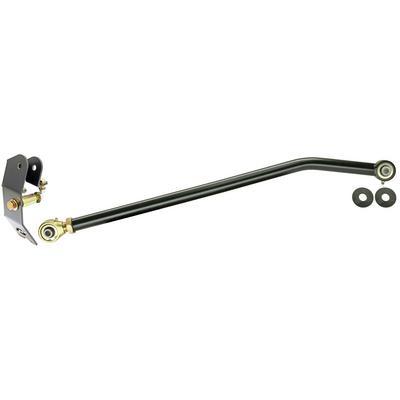

The RockJock 4×4 Johnny Joint rear trac bar with housing bracket kit, part CE-9123N, is a rear trac bar for the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ) Unlimited. A trac bar, also called a track bar, locates the axle side to side under the vehicle.

The rear unit pairs with RockJock’s front Johnny Joint trac bar and is designed to improve articulation on TJ and LJ models. The heavy duty trac arm relocation bracket bolts onto the rear axle housing and moves the trac bar pivot point, so the arm sits at the correct angle and position.

Key features

  • 1-1/4 inch heavy wall 4130 chrome moly tubing
  • 2 inch Johnny Joint rod ends at both ends
  • Heavy duty trac arm relocation bracket
  • Designed to pair with RockJock’s front Johnny Joint trac bar

Before you buy

A trac bar sets the axle’s side-to-side position, so the mounting points and joint angles matter as much as the tubing. Before buying, confirm the bracket and arm geometry suit your axle housing and steering linkage. When a front and rear unit are both planned, match the set so the axle stays centered through articulation.

Johnny Joints wear with use, especially on trail, so inspect the rod ends, bushings and hardware on a regular schedule. Play in a joint, cracked housings or bent arms are reasons to replace the part rather than adjust around it. Keep the rod ends greased if the design allows it.

  • Check bolts and the relocation bracket after the first trail runs
  • Look for play in the Johnny Joints
  • Compare trac bar length against axle position

Specifications

Brand RockJock 4×4
Part number CE-9123N
Position Rear
Tubing 1-1/4 inch heavy wall 4130 chrome moly
Rod ends 2 inch Johnny Joint, both ends
Housing bracket Heavy duty trac arm relocation bracket

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler (LJ) Unlimited and the 1997–2006 Jeep Wrangler (TJ).

The list does not cover the Wrangler JK or JL, or the Grand Cherokee. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The relocation bracket bolts onto the rear axle housing and sets the trac arm at the correct angle. Check the axle centering after installation, since a trac bar changes the axle’s side-to-side position.

What’s included

The rear trac bar and the heavy duty trac arm relocation bracket with the housing bracket kit.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the RockJock CE-9123N fit a 2005 Jeep Wrangler LJ Unlimited?

Yes. It fits the 2004–2006 Wrangler (LJ) Unlimited, which includes 2005 models. Confirm fit for your vehicle's year, model and trim before ordering.

Does this rear trac bar fit a Jeep Wrangler JK?

No. It fits TJ and LJ Wranglers only, not the JK generation. A JK owner needs a trac bar made for that generation.

What tubing is the trac bar made from?

It is made from 1-1/4 inch heavy wall 4130 chrome moly tubing, with 2 inch Johnny Joint rod ends at both ends.

Does the kit include the relocation bracket?

Yes. It includes the heavy duty trac arm relocation bracket, which bolts onto the rear axle housing and moves the trac bar pivot point so the arm sits at the proper angle.

How often should trac bar joints be inspected?

Check the Johnny Joints and mounting hardware regularly, especially after trail use, for play, cracks or loose bolts. Replace a joint that shows wear rather than tightening it past its design. Re-check the relocation bracket bolts after the first few trail runs.
