Overview

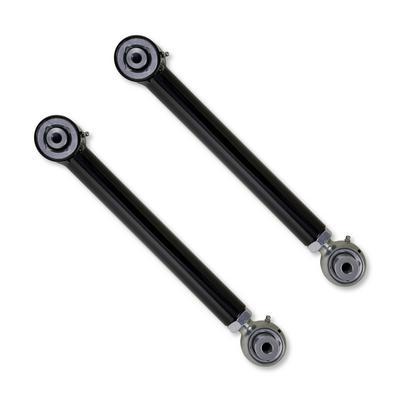

The Rock Krawler RKSRK00707B is an adjustable rear lower control arm for the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ) Unlimited. It is a tube-type arm made of solid alloy steel.
The arm has a rebuildable spherical joint at the axle end and a Pro Flex joint at the frame. Its length adjusts to position the axle and to set caster or pinion angle. The Pro Flex joint is designed to keep the ride quiet on the highway while the arm still articulates off-road.
Key features
- Adjustable length
- Rebuildable spherical joint at the axle
- Pro Flex joint at the frame
- Solid alloy steel tube
- Rear lower position
Adjusting arm length
An adjustable lower arm is used to bring the axle into the correct position and to set caster or pinion angle. Changing the length moves the axle relative to the frame, so it is best done in small steps with the alignment in mind. The adjustment is also a reason to recheck the lock nuts and joint condition after any change.
Measure the arm before and after each change so the setting can be repeated. Make sure the joint has room to pivot at full suspension travel, and that the arm does not bind against the frame or driveline. Lock the adjustment fully before driving, since a loose setting can shift the axle under load.
Once the length is set, have caster and pinion angle checked. Recheck the adjustment after the first few drives and after any rebuild of the spherical joint.
- Measure before and after each length change
- Confirm full-travel clearance at the frame
Specifications
| Brand | Rock Krawler |
|---|---|
| Part number | RKSRK00707B |
| Position | Rear lower |
| Type | Tube |
| Material | Solid alloy steel |
| Axle joint | Rebuildable spherical joint |
| Frame joint | Pro Flex joint |
Vehicle fitment
It fits the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Jeep Wrangler (LJ) Unlimited.
It is built for the TJ and LJ Wrangler. Make sure your TJ or LJ’s year, model and trim match before you buy.
Installation notes
Set the arm length and recheck caster or pinion angle after installation, because the length changes axle geometry.
What’s included
One adjustable rear lower control arm.
