Rock Hard 4X4 Parts Oil Pan/Transmission/Catalytic Converter Skid Plate (Black) – RH6003

Rock Hard 4x4 Parts

Shop Rock Hard 4X4 Parts Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Oil pan, transmission and catalytic converter skid for 2- and 4-door models
  • Fastened to the frame at both motor mounts and the rear crossover
  • Tapered bolt head protectors slide across rocks
  • Stock driveline clears the skid at 40 inches of flex
  • Made in the USA

Description

Overview

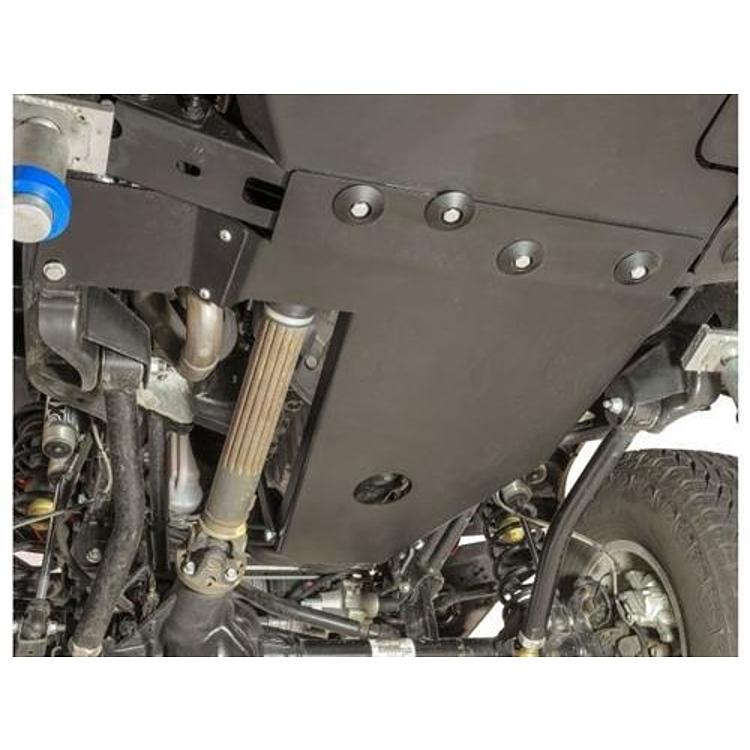

The Rock Hard 4×4 Parts Oil Pan, Transmission and Catalytic Converter Skid Plate, part number RH6003, protects the oil pan, the transmission and the catalytic converter. The short notes list it for 2- and 4-door models and say it is made in the USA.

The skid is fastened to the frame at both motor mount locations and at the main crossover at the rear. The bolts at the frame crossover are replaced with tapered bolt head protectors so they slide across rocks. An extension on the left-hand side protects the catalytic converter, which is normally exposed. The stock driveline clears the skid at 40 inches of flex.

Key features

  • Covers the oil pan, transmission and catalytic converter
  • Fastened at both motor mounts and the rear crossover
  • Tapered bolt head protectors at the frame crossover
  • Left-hand extension protects the catalytic converter
  • Stock driveline clears at 40 inches of flex
  • Made in the USA

Catalytic converter and exhaust clearance

The catalytic converter sits low under many Jeeps and is one of the parts most often damaged by rocks and stumps. Shielding it protects both the converter body and the exhaust connections around it. A skid that covers the converter area reduces direct impacts, but the exhaust still needs room to move on flexing suspension, so it is worth checking hangers and clamps after installation.

Driveline and exhaust clearance change as the suspension cycles. Take the vehicle through a slow articulation check on level ground, watching for contact between the skid, the driveshaft and the exhaust pipes. Rubber hangers that have stretched or split are common sources of rattles and should be replaced before they allow metal to touch metal.

  • Watch for exhaust contact during articulation
  • Replace split or stretched exhaust hangers
  • Recheck skid bolts after rough terrain

Specifications

Brand Rock Hard 4×4 Parts
Part number RH6003
UPC 70000444083
Position Oil pan, transmission and catalytic converter
Body style 2- and 4-door models
Mounting Both motor mounts and the rear crossover
Driveline clearance 40 inches of flex
Finish Black powder coat
Installation No cutting or drilling required

Vehicle fitment

The skid fits 2- and 4-door Jeep models. Confirm your generation and body style before ordering.

The driveline clearance figure is given for the stock driveline at 40 inches of flex, so lifted vehicles may need a different check. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The skid requires no cutting or drilling. It bolts at the motor mounts and the rear crossover, so check those points against your Jeep before installing.

What’s included

The oil pan, transmission and catalytic converter skid with its tapered bolt head protectors.

SKU: RFPRH-6003 Category:

Specification

Shipping weight 56.00 lbs
Package dimensions 42.00 × 29.00 × 5.00 in
brands

Questions & Answers

Does the RH6003 need drilling?

No. The product is listed with no cutting or drilling required, and it fastens at the existing motor mounts and the rear crossover.

Does the RH6003 protect the catalytic converter?

Yes. An extension on the left-hand side of the skid protects the catalytic converter, which is normally exposed. The extension covers that area so it stays protected from rocks and debris on the trail.

How much flex does the stock driveline clear?

The stock driveline clears the skid at 40 inches of flex. Lifted vehicles may need a different check, so confirm driveline clearance before using the skid off road.

Which Jeep models does the RH6003 fit?

The skid is made for 2- and 4-door Jeep models. Confirm your vehicle's year, model, trim and body style before ordering.

Should a skid be used with a lift?

Lift height changes how the skid, driveline and exhaust sit relative to obstacles, so recheck clearance after any lift. Slow articulation tests on level ground show contact points early. Adjust hangers or spacers as needed before trail use.
