Rock Hard 4X4 Parts Fuel Tank Skid Plate (Black) – RH6001

Rock Hard 4x4 Parts

Shop Rock Hard 4X4 Parts Skid Plates on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fuel tank skid from 3/16-inch steel plate, laser cut and CNC bent
  • Bolts under the tank without removing the factory shield
  • Uses factory bolts plus one or three added bolts, drilled for 3/8-inch bolts
  • Black powder coat, made in the USA

Description

Overview

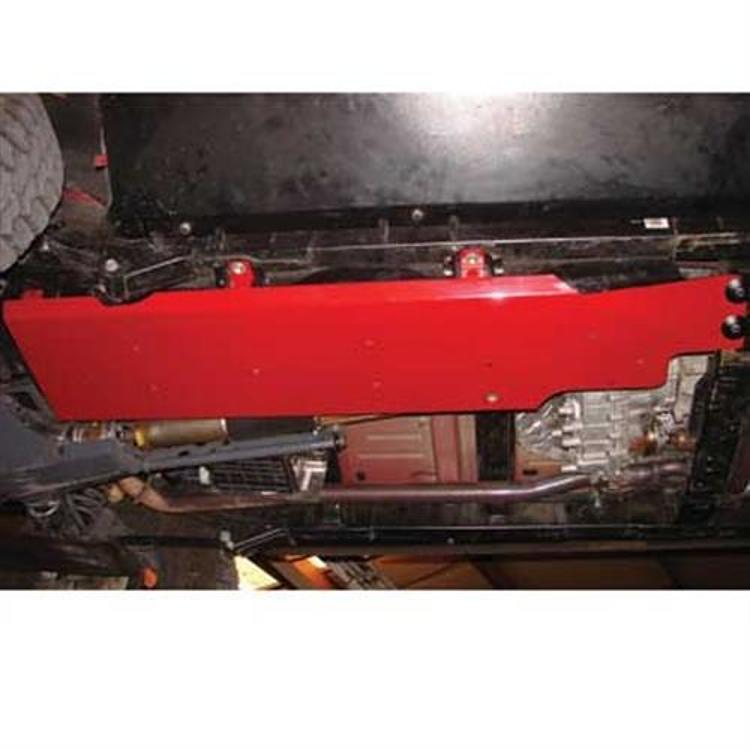

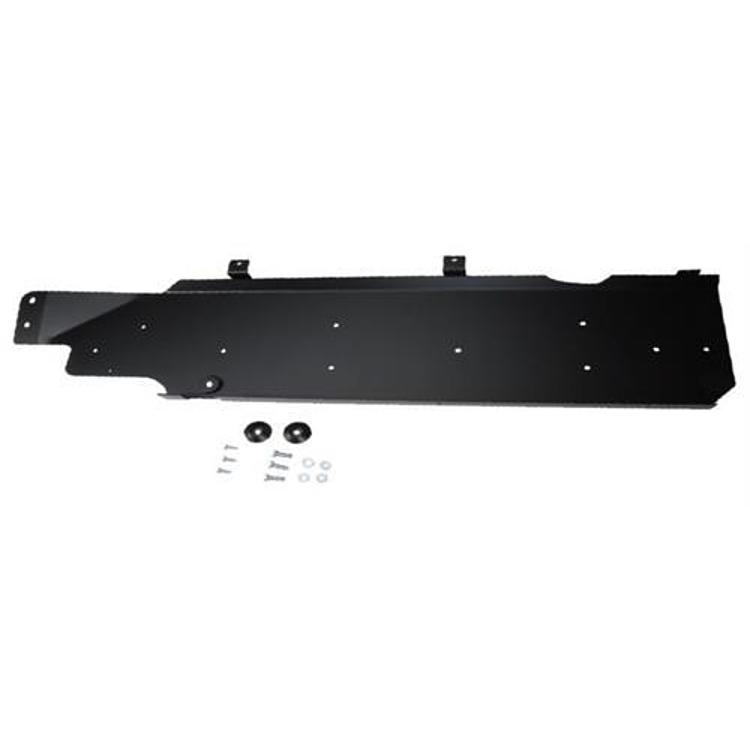

The Rock Hard 4×4 Parts Fuel Tank Skid Plate, part number RH-6001, is a fuel tank skid made from 3/16-inch steel plate. It is laser cut and CNC bent to fit, and it bolts underneath the tank. The factory shield stays in place during installation.

The skid uses the factory bolts, plus one additional bolt on 2-door models and three additional bolts on 4-door models. Drilling is required for the 3/8-inch bolts. It is made for both 2-door and 4-door body styles, so confirm your body style before ordering.

Key features

  • 3/16-inch steel plate, laser cut and CNC bent
  • Bolts underneath the tank
  • Factory shield stays in place
  • Uses factory bolts with added bolts for each body style
  • Black powder coat finish
  • Made in the USA

Bolt-on fuel tank guards

A bolt-on fuel tank guard sits under the tank, where it can meet rocks, ridges and stumps on rough terrain. Guards like this are usually designed to leave the factory shield in place, which keeps the original protection working alongside the new plate. Because the tank holds fuel, a secure, well-fitted guard is a sensible upgrade for drivers who spend time off road.

The number of mounting points affects how the guard carries load, so confirm the hardware count and bolt pattern before starting. Added bolts need clean holes and firm tightening, so keep drill bits sharp and deburr the holes before installing. After the first few trail outings, check the bolts, look over the tank straps, and inspect the powder coat for chips where rock contact is likely. Fuel lines and the filler neck should be checked for rubbing too.

  • Keep drill bits sharp for clean bolt holes
  • Deburr holes before fitting the bolts
  • Recheck bolts after the first trail runs
  • Look for fuel line rub near the guard edges

Specifications

Brand Rock Hard 4×4 Parts
Part number RH-6001
UPC 70000444075
Position Fuel tank
Material 3/16-inch steel plate
Finish Black powder coat
Added bolts One on 2-door, three on 4-door
Bolt holes Drilled for 3/8-inch bolts
Installation Cutting or drilling required

Vehicle fitment

The skid is made for 2-door and 4-door models. Confirm the body style and generation of your Jeep before ordering, since the number of added bolts depends on it.

Confirm the body style and generation of your Jeep before ordering, since the number of added bolts depends on it. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires cutting or drilling. The skid uses the factory bolts plus the additional bolts for your body style, and the 3/8-inch bolt holes need drilling.

What’s included

The fuel tank skid plate. Check the package contents, including the additional bolts, against your installation before starting.

SKU: RFPRH-6001 Category:

Specification

Shipping weight 65.00 lbs
Package dimensions 71.00 × 18.00 × 4.00 in
brands

Questions & Answers

Does the RH-6001 need the factory shield removed?

No. The skid bolts underneath the tank, so the factory shield does not have to be removed during the installation.

How many added bolts does the RH-6001 need?

The skid needs one additional bolt on 2-door models and three additional bolts on 4-door models, along with the factory bolts. The 3/8-inch holes need drilling.

Does the RH-6001 fit a 2-door Jeep?

Yes. It covers 2-door models with one added bolt, and 4-door models use three added bolts. Confirm your body style before ordering, since the bolt count depends on it.

What steel is the RH-6001 made from?

It is made from 3/16-inch steel plate that is laser cut and CNC bent to fit, with a black powder coat finish. The product is made in the USA.

How often should a fuel tank guard be checked?

Check it after each rough trail outing and after any hard rock strike. Look for loose bolts, bent edges and bare steel in the powder coat. Tighten hardware as needed and touch up chips promptly, since exposed metal can begin to rust quickly under mud and water.

Can the guard be used without the factory shield?

The guard is designed to work with the factory shield in place, so removing that shield is not part of the installation. Keep the original shield on and check that it is fitted correctly. If the shield is damaged, inspect and repair it before adding the guard, so the tank has full protection.
