Overview
The ReadyLift 66-2515 is a 2.5 in. front leveling kit for 2005 to 2007 Ford F-250 and F-350 Super Duty 4WD trucks. It includes 2.5 in. front coil spring spacers with sound isolators, shock extensions, a bump stop extension and a track bar relocation bracket. It is an upgrade to the 66-2095 leveling kit.
The steel coil spring spacers lift the front 2.5 inches. The sound isolators are included with the spacers. The shock extensions and the bump stop extension are included so the shocks and bump stops work at the new height.
The track bar relocation bracket keeps the track bar at a workable angle once the front is raised, which is why it is part of this kit. The shock relocation bracket is included as well.
The kit is built for F-250 and F-350 Super Duty models. Confirm fit for your truck’s year, model and trim before ordering.
Key features
- 2.5 in. front lift with steel coil spring spacers
- Sound isolators included
- Shock extensions and bump stop extension
- Track bar relocation bracket included
- Shock relocation bracket included
- Black finish
Leveling and bracket geometry
A front leveling kit raises the nose to match the rear, but it also moves the control arm and track bar angles. A relocation bracket helps the track bar keep a workable angle, which makes the steering feel more predictable after the lift.
Coil spring spacers change how the spring sits, and sound isolators help reduce noise and vibration from the spacer. Shock extensions keep the shocks working through their range at the new height, so check that they clear the springs and mounts.
After a leveling install on a heavy-duty truck, have the front alignment set and check the bump stops for contact. Heavier loads and towing make geometry changes more noticeable, so recheck the setup if the truck carries a regular load.
- Check shock extensions for clearance
- Look at the track bar angle after installation
- Set the alignment once the height is settled
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY66-2515 |
| Front lift height | 2.5 in. |
| Front lift method | Steel coil spring spacers |
| Track bar relocation bracket | Included |
| Shock relocation bracket | Included |
| Bump stops | Included, with extension |
| Rear lift | Front lift only |
| Finish | Black |
| Fit | Direct fit |
Vehicle fitment
The kit fits 2005 to 2007 Ford F-250 Super Duty and F-350 Super Duty models, including Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims.
Super Duty years outside 2005 to 2007 are not covered. Look at fit for your year, model and trim before ordering, especially for F-450 trucks.
Installation notes
The kit adds a 2.5 in. front lift and a relocation bracket, which both change the front geometry. Have the alignment checked after installation.
What’s included

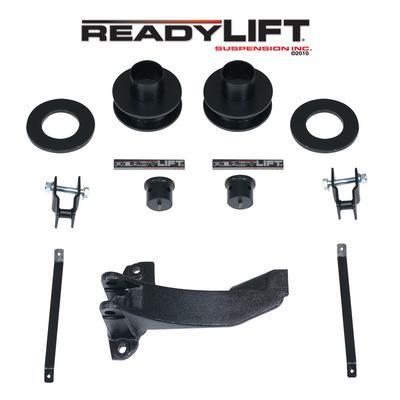

The 2.5 in. front coil spring spacers with sound isolators, shock extensions, bump stop extension, track bar relocation bracket and shock relocation bracket.
