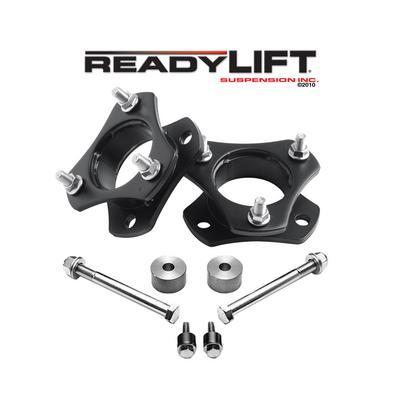

ReadyLift 3 Inch Front Leveling Kit – 66-5000

ReadyLift

$149.99In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3 inch front lift through steel strut extensions
  • Fits 2001–2007 Toyota Sequoia and 2000–2006 Toyota Tundra trucks
  • Smart Strut Technology mounts on top of the strut assembly
  • Steel construction, black finish
  • Clearance for tires up to 33 inch on the 1999–2006 Tundra

Description

Overview

It is a 3-inch front lift kit made of steel strut extensions. It fits the 2001–2007 Toyota Sequoia (Limited and SR5) and the 2000–2006 Toyota Tundra (Base, Limited and SR5), and it levels the front of the truck with the rear.

The strut extension uses Smart Strut Technology, which sits on top of the strut assembly instead of compressing the springs. The kit gives 3 inch of lift and room for tires up to 33 inch on the 1999–2006 Tundra 2WD and 4WD. It keeps a smooth factory ride without adding pressure to the stock suspension. Fit details differ by model year, so check the model year before ordering.

Key features

  • 3 inch of front lift from steel strut extensions
  • Smart Strut Technology mounts on top of the strut
  • No spring compression
  • Black steel finish
  • Front lift only, with no rear lift

Strut extensions and ride height

A strut extension sits between the top of the factory strut and its mount, so the front height rises without changing the spring. Because the spring is not compressed to make the change, the strut works in its normal range. Front-only lifts shift the angles of several parts, which is worth keeping in mind.

Sway bar links, brake hoses and front axle angles can be affected by a higher front end. Check these parts for length and clearance after installation, and listen for rubbing during full steering lock. Shock length should be checked as well, since the shock works through a different range at the new height.

Tire choice matters as much as the kit. Wheel offset, tire width and overall diameter all decide whether the tire rubs at full steering lock or under load. Inspect the inner fender and front bumper area after the first few trips to confirm there is no contact.

  • Check sway bar link length
  • Inspect brake hose routing
  • Verify steering clearance at full lock

Specifications

Brand ReadyLift
Part number RDY66-5000
Front lift height 3 inch
Lift method Strut extension (Smart Strut Technology)
Material Steel
Finish Black
Rear lift None, front lift only
Track bar drop Not included
Shock relocation bracket Not applicable
Bump stops None

Vehicle fitment

It fits the 2001–2007 Toyota Sequoia and the 2000–2006 Toyota Tundra in the trims covered. The 33 inch tire clearance applies to the 1999–2006 Tundra 2WD and 4WD.

The Tundra model years from 2007 onward and the 2008 and later Sequoia are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The strut extension fits on top of the factory strut, so the springs are not compressed. Check the front-to-rear height after installation to confirm the level stance, and allow for the 33 inch tire clearance to be checked against the wheel offset.

Fitment

VehicleYearsTrims
Toyota Sequoia2001–2007Limited, SR5
Toyota Tundra2000–2006Base, Limited, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 66-5000 fit a 2005 Toyota Sequoia?

Yes. The kit fits the 2001–2007 Toyota Sequoia, which includes 2005 model year trucks in the Limited and SR5 trims. Confirm the year, model and trim before ordering.

How much lift does the 66-5000 give?

It provides 3 inch of front lift from the steel strut extensions, which mount on top of the factory strut and keep the springs in place.

Will it fit 33 inch tires?

It gives clearance for tires up to 33 inch on the 1999–2006 Tundra 2WD and 4WD. Wheel offset also affects clearance, so check the fit with your wheel and tire combination before ordering.

Do strut extensions affect the sway bar or brake lines?

They can. A front lift changes the angle of suspension parts, so sway bar links and brake hoses should be checked for length and clearance after installation. Recheck steering and alignment once the new height is set, and look for any rubbing as the suspension moves.
