Pro Comp 3.5″ Lift Kit with PRO-VST 2.5″ Coilovers and Shocks with Rear Coil Spacers – K5101BX

Pro Comp Suspension

Shop Toyota 4Runner Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2003 to 2024 Toyota 4Runner and 2007 to 2014 Toyota FJ Cruiser
  • 3 to 3.5-inch lift with PRO-VST coilovers and shocks
  • Coil spring spacers at the rear
  • Sized for 33-inch tires

Description

Overview

The Pro Comp 3.5-inch Lift Kit with PRO-VST 2.5-inch Coilovers and Shocks, part number EXPK5101BX (kit K5101BX), is a 3 to 3.5-inch suspension lift for 2003 to 2024 Toyota 4Runner and 2007 to 2014 Toyota FJ Cruiser models. It fits the 4Runner across Limited, Nightshade, SR5, SR5 Premium, Sport, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Trail and Venture versions, and the FJ Cruiser Base, TRD Special Edition and Trail Teams Special Edition.

The specifications list a lift of 3 to 3.5 inches and a lift height range of 0 to 3.5 inches. Pro Comp lists 33 inches as the tire size. PRO-VST shocks are included at the front and rear, and the rear uses coil spring spacers.

The Explorer Pro coilover system swaps the factory springs and shocks for PRO-VST units tuned for this vehicle. The coilovers are intended for 17-inch wheels with 33-inch tires, and the geometry is corrected for the larger tire size with more suspension travel.

The 2.5-inch PRO-VST coilovers and shocks are presented by Pro Comp as offering strong highway ride quality with solid off-road performance. The company says no frame modifications are needed.

Key features

  • 3 to 3.5-inch suspension lift

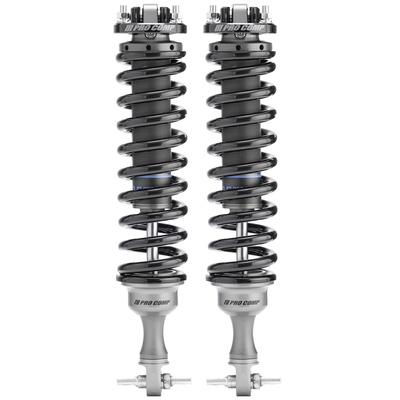

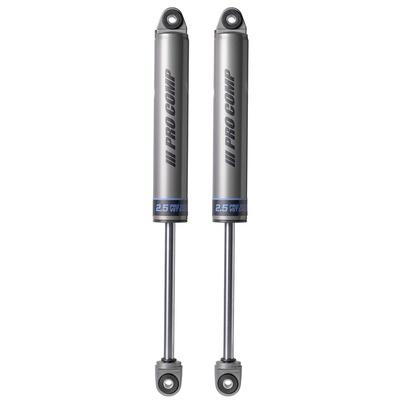

  • PRO-VST coilovers and shocks included, front and rear
  • Coil spring spacers at the rear
  • Tire size of 33 inches
  • Covers 4Runner models from 2003 to 2024

Coilover ride and tire clearance

Coilovers and shocks as a set replace the factory springs and dampers, so the ride height and damping change together. A truck with a taller stance and larger tires responds differently to crosswinds and steering input, and the new damping helps keep the body controlled over highway seams. Off road, the extra travel helps the tires follow uneven ground.

Tire clearance is worth checking at full steering lock and at full suspension compression, since a larger tire can rub the fender or a brake line. Rear coil spacers raise the back without changing the springs, so the front and rear heights can settle a little differently. Recheck front geometry after installation and watch for uneven tire wear.

  • Check tire rub at full steering lock
  • Re-torque coilover mounts after the first trail runs
  • Inspect rear spacers and their hardware at service intervals

Specifications

Brand Pro Comp Suspension
Part number EXPK5101BX
Kit code K5101BX
Suspension type Lift kit
Lift height 3 to 3.5 inches; range 0 to 3.5 inches
Tire size 33 inches
Rear lift component Coil spring spacers
Shocks included Yes
Front shocks PRO-VST
Rear shocks PRO-VST
Fit type Direct fit

Vehicle fitment

The kit fits the 2003 to 2024 Toyota 4Runner, including Limited, Nightshade, SR5, Sport, TRD Off-Road, TRD Pro and Venture versions, and the 2007 to 2014 Toyota FJ Cruiser in the Base, TRD Special Edition and Trail Teams Special Edition versions.

The list does not include 2002 and earlier 4Runner models, or 2015 and newer FJ Cruiser models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Coil spring spacers at the rear raise the rear without changing the springs, so measure front and rear after installation and have the alignment checked.

What’s included

The 3 to 3.5-inch lift kit with PRO-VST front and rear coilovers and shocks, plus the rear coil spring spacers.

SKU: EXPK5101BX Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2024Limited, Nightshade, SR5, SR5 Premium, Sport, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Trail, Venture
Toyota FJ Cruiser2007–2014Base, TRD Special Edition, Trail Teams Special Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K5101BX fit a 2020 Toyota 4Runner?

Yes. The kit fits 2003 to 2024 Toyota 4Runner models, and 2020 falls within that range. Confirm the trim before ordering.

Does it fit a 2012 FJ Cruiser?

Yes. The list includes the 2007 to 2014 Toyota FJ Cruiser in the Base, TRD Special Edition and Trail Teams Special Edition versions.

What tire size is listed?

The kit is sized for 33-inch tires, and it works best with 17-inch wheels. Check tire clearance in the wheel well and at full suspension travel before ordering wheels.

How often should coilover shock performance be checked?

Check the shocks for leaks, noise and uneven tire wear at each service. Ride that feels bouncy or wallowy can mean the damping is wearing out, so inspect the shocks whenever the ride changes.
