Overview
The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K1088B, is a suspension lift for the rear axle of dually trucks. The kit is for dually rear axles only. It fits the 2011-2018 Chevrolet Silverado 3500 HD (High Country, LT, LTZ and WT) and the 2011-2018 GMC Sierra 3500 HD (Base, Denali, SLE, SLT and WT).
The kit uses front and rear crossmembers, extended steering knuckles and extended-length brake lines, along with a block and U-bolt kit at the rear. ES9000 shocks are included at both ends. The lift height range is 5 to 6.99 inches.
Key features
- 6-inch stage 1 lift
- Front and rear crossmembers
- Extended steering knuckles
- Extended-length brake lines
- Block and U-bolt kit at the rear
- ES9000 front and rear shocks, included
- Dually rear axle only
Dually rear axle setups
A dually rear axle carries two wheels on each side, so the lift changes how the outer and inner tires clear the body and frame. The rear block and U-bolt kit raises the rear, and the spacing between tires should be checked after the install. Dually owners often notice clearance issues first at full steering lock or on uneven ground.
Front and rear crossmembers and extended steering knuckles change front geometry, so alignment should be checked along with tire spacing. Extended brake lines need to be routed cleanly, and the brakes should be tested at low speed before regular driving. Keep tire pressures consistent across the dual pairs.
- Check inner and outer tire spacing after installation
- Recheck U-bolt torque after the first drives
- Inspect brake lines for chafing and rub points
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1088B |
| UPC | 70000702750 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Rear lift | Block and U-bolt kit |
| Shocks | ES9000, front and rear |
| Application | Dually rear axle only |
| Fitment | Direct fit |
Vehicle fitment
Covered trucks are the 2011-2018 Chevrolet Silverado 3500 HD in High Country, LT, LTZ and WT trim, and the 2011-2018 GMC Sierra 3500 HD in Base, Denali, SLE, SLT and WT trim.
Single-rear-wheel trucks, 2500 HD and 1500-series trucks are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing the front knuckles and extending the brake lines changes steering and brake geometry, so have the alignment and brake operation checked after installation.
What’s included

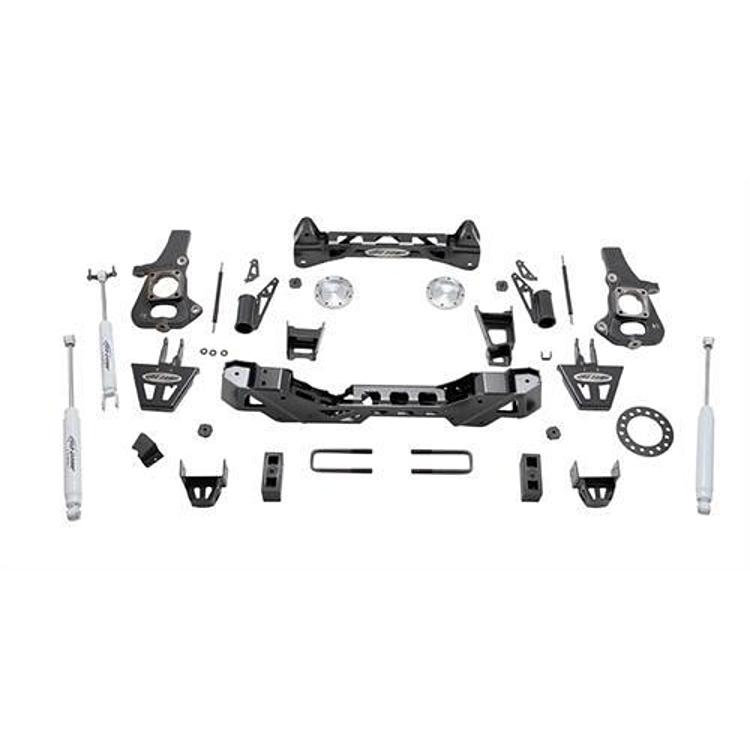

The kit includes front and rear crossmembers, extended steering knuckles, extended brake lines, a block and U-bolt kit for the rear, and ES9000 front and rear shocks.
