Overview
The Pro Comp K6006BP is a 6-inch Stage 1 suspension lift kit with Pro Runner rear shocks for the 2004–2015 and 2017–2018 Nissan Titan. It pairs high strength extended steering knuckles, which maintain OE geometry, with heavy duty one-piece front crossmembers that include bump stop pads.
The rear is lifted with 4-inch tall tapered lift blocks. 1-inch front bumper spacers provide clearance for 35-inch tall tires on 18 to 20 inch rims with up to 5 inch back spacing. The kit is FMVSS126 compliant for factory stability control and does not fit XD models.
Key features
- 6-inch lift height from a Stage 1 kit

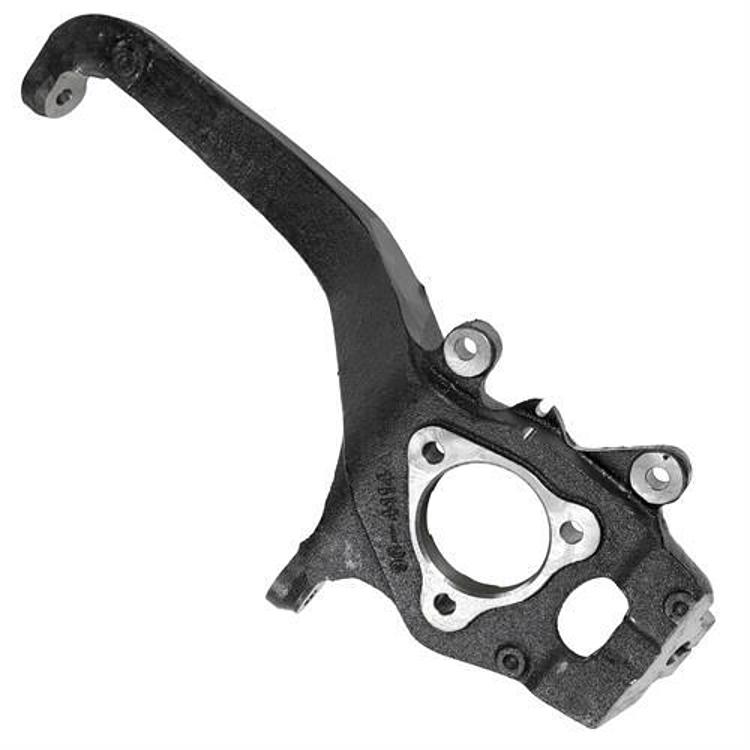

- High strength extended steering knuckles

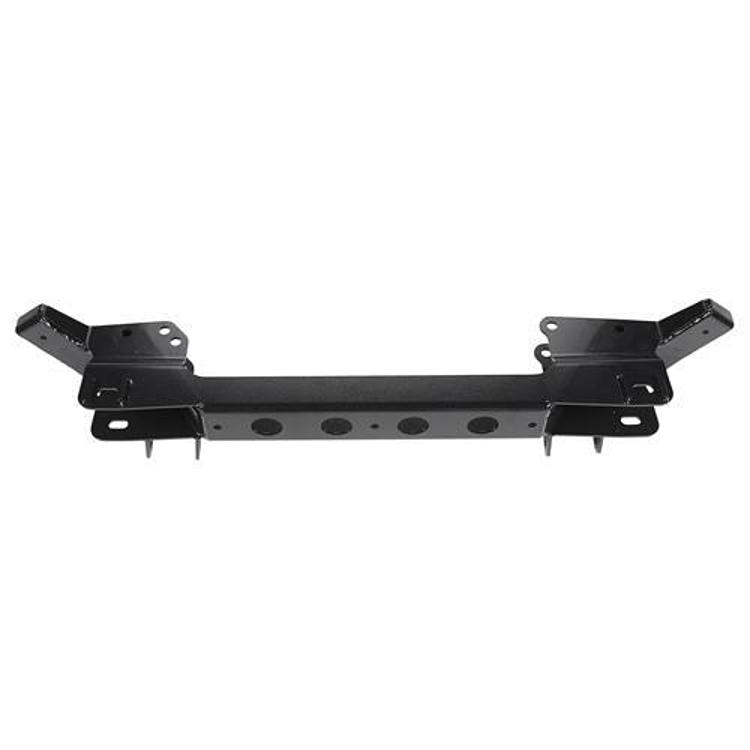

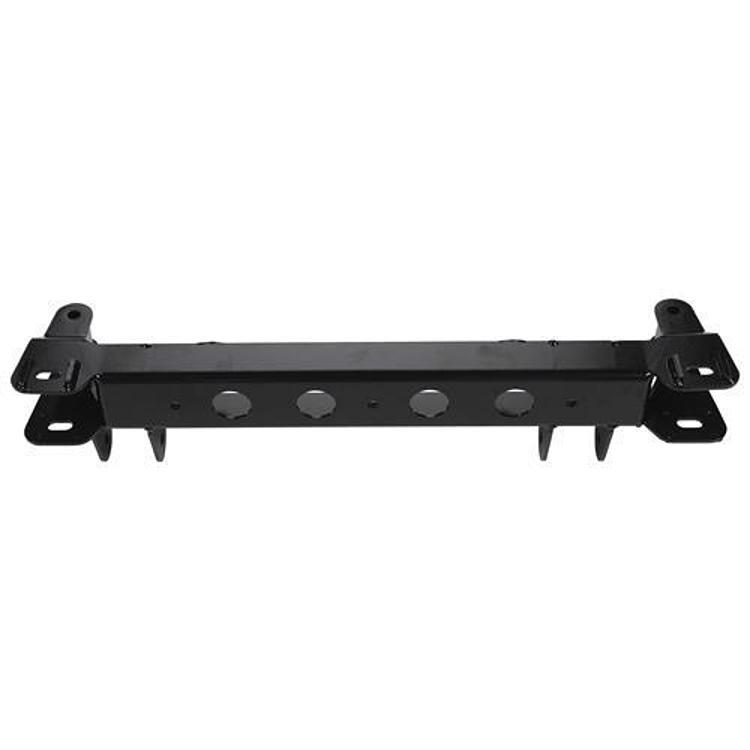

- Heavy duty one-piece front crossmembers
- Bump stop pads
- 4-inch tall tapered lift blocks

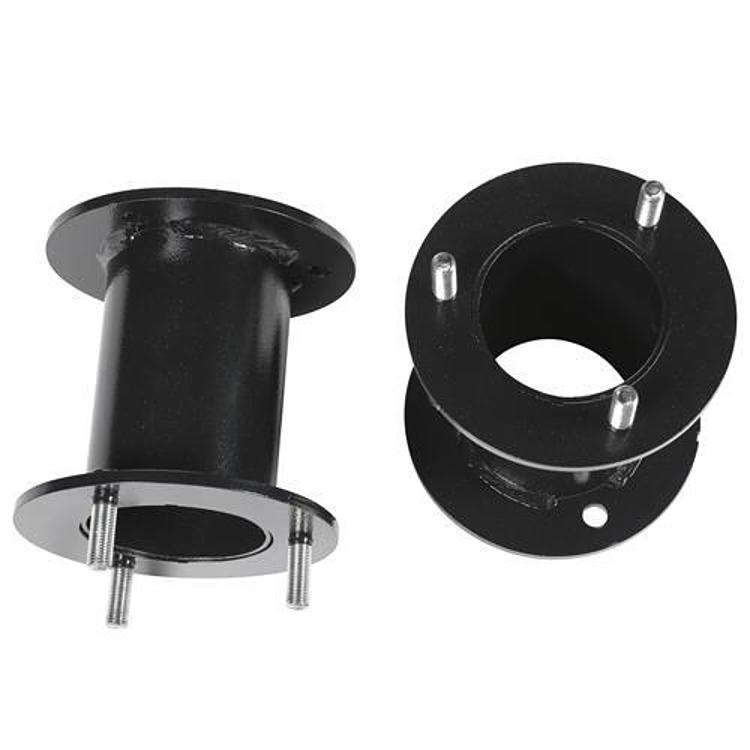

- 1-inch front bumper spacers
Choosing Pro Runner shocks

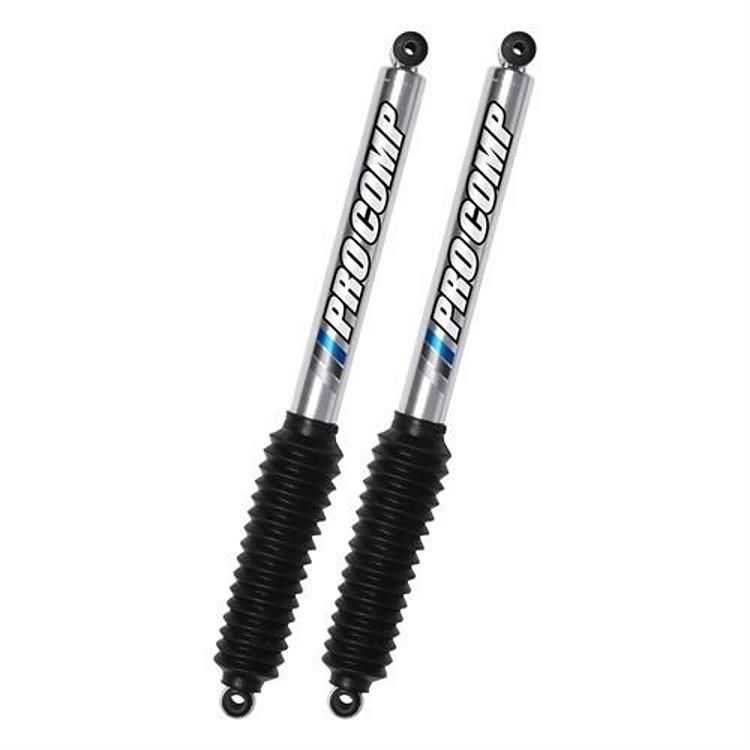

Rear shocks do a lot of the work once a truck is lifted with blocks. The shock length and mounting angle change slightly with a rear lift, so the shock should be matched to the new ride height rather than swapped in with the old length. The Pro Runner rear shocks are the rear shock included with this kit, and they suit drivers who want a controlled ride on mixed surfaces.
Front shocks are often replaced at the same time as the struts or coils. If the front geometry is changed with extended knuckles, the shock angle and length should be checked against the new setup. Worn shocks show up as bouncing after bumps, fluid on the body, or uneven tire wear.
Bump stops, sway bar end links and brake hoses are commonly inspected during a lift. Replacing worn end links at the same time helps keep the sway bar working correctly on the raised truck.
- Shock length matched to the new ride height
- Bump stop pads inspected for cracking
- Sway bar end links checked for play
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K6006BP |
| UPC | 700008461971 |
| Lift height | 6 inch (lift height range 4 to 6 inches) |
| Lift kit stage | Stage 1 |
| Rear lift | Block |
| Lift block height | 4 inch tapered |
| Rear shocks | Pro Runner |
| Front bumper spacers | 1 inch |
| Tire clearance | 35-inch tall tires on 18 to 20 inch rims with up to 5 inch back spacing |
Vehicle fitment
It is offered for the 2004–2015 and 2017–2018 Nissan Titan in the LE, PRO-4X, Platinum Reserve, S, SE, SL, SV and XE versions. The 2016 model year and XD models are not covered. Confirm your vehicle’s year, model and trim before ordering.
The listed years skip 2016, and XD models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Extended knuckles and the one-piece front crossmembers change the front geometry, so have the alignment checked and the brake lines inspected after installation.
What’s included

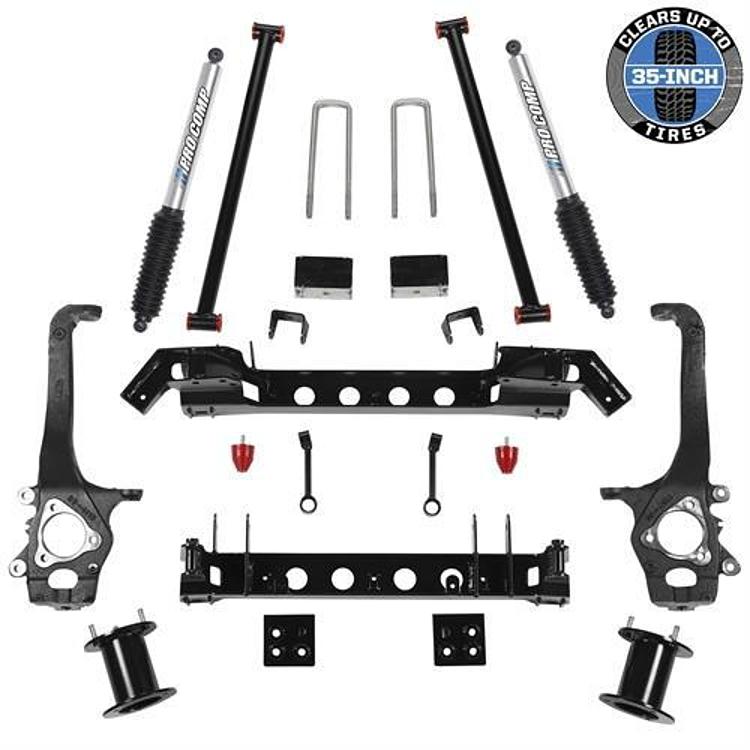

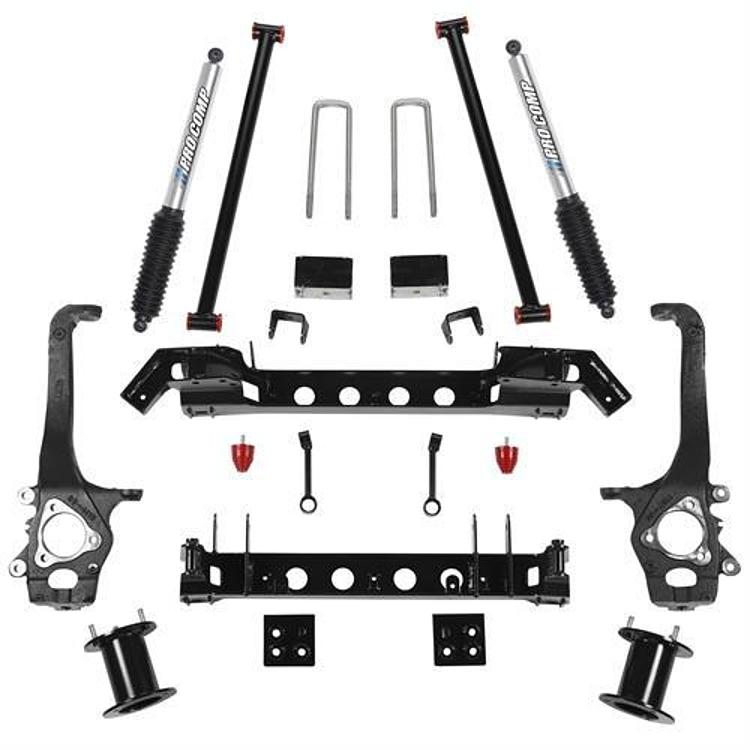

The kit includes the extended steering knuckles, the one-piece front crossmembers with bump stop pads, the 4-inch tapered lift blocks, the 1-inch front bumper spacers, and Pro Runner rear shocks.
