Pro Comp 3.5″ Lift Kit with PRO-VST 2.5″ Coilovers and Shocks with Rear Coil Spacers and Upper Control Arms – K5099BXU

Pro Comp Suspension

Shop Toyota 4Runner Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3 to 3.5-inch lift with 2.5-inch PRO-VST coilovers and shocks
  • Rear coil spacers and upper control arms included
  • Built for 33-inch tires
  • Fits 2003-2009 Toyota 4Runner and 2007-2009 FJ Cruiser

Description

Overview

The Pro Comp 3.5-inch Lift Kit with PRO-VST 2.5-inch Coilovers and Shocks with Rear Coil Spacers and Upper Control Arms, part number K5099BXU (EXPK5099BXU), is a lift for the Toyota 4Runner and FJ Cruiser. It fits 2003 to 2009 4Runner models and 2007 to 2009 FJ Cruiser models.

This kit is the narrower-year counterpart of the K5098BXU, which covers a longer 4Runner range. Both use PRO-VST front and rear shocks and 2.5-inch PRO-VST coilovers. The kit uses rear coil spacers and upper control arms, and the specifications match the spacers.

The PRO-VST system is tuned for 33-inch tires on 17-inch wheels. The lift is 3 to 3.5 inches, with a lift height range of 0 to 3.5 inches. It improves travel and rebound, and the upper control arms are American-made Pro Series parts with high-angle ball joints.

Key features

  • 3 to 3.5-inch lift
  • PRO-VST front and rear shocks, included
  • 2.5-inch PRO-VST coilovers
  • Rear coil spacers.
  • Upper control arms.
  • Tuned for 33-inch tires on 17-inch wheels

Before you buy

Lift kits built for a single year range often leave owners wondering how the kit will sit beside stock suspension parts that were never replaced. Springs, shocks and control arms share loads, so a change in one usually shows up in the others. Shocks carry much of the damping work, which makes their condition worth checking early.

When comparing kits, look at how the rear is handled, whether brake hoses and sway bar links are long enough for the new height, and whether the tire plan matches the tuning. A setup tuned for one tire diameter can feel different on another, and steering feel is often the first sign of a mismatch.

  • Measure brake hose length after the lift
  • Inspect sway bar end links for wear
  • Note any change in ride on the first highway drive

Specifications

Brand Pro Comp Suspension
Part number EXPK5099BXU (title K5099BXU)
Suspension type Lift kit
Lift 3 to 3.5 inches
Lift height range 0 to 3.5 inches

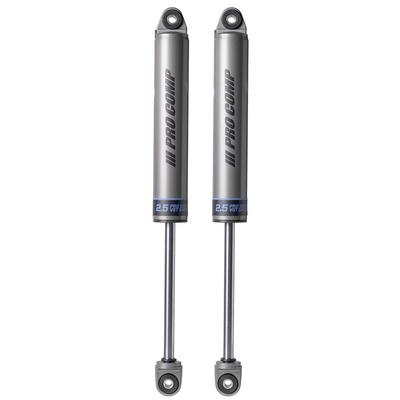

Shocks PRO-VST, front and rear, included

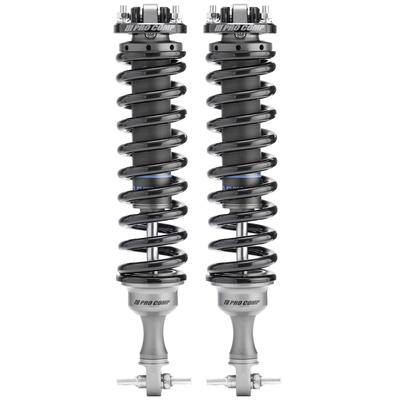

Coilovers 2.5-inch PRO-VST
Rear lift component Coil spring spacers
Tire size 33 inch
Fitment Direct fit

Vehicle fitment

It fits the 2003-2009 Toyota 4Runner and the 2007-2009 Toyota FJ Cruiser. The kit does not cover 2010 and newer 4Runner models or 2010 and newer FJ Cruisers.

The list does not include 2010 and newer 4Runner models or 2010 and newer FJ Cruisers, so those years are not confirmed. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit is a direct fit. Changes to ride height and suspension geometry mean the alignment should be checked and the driveline angles measured after the work is done.

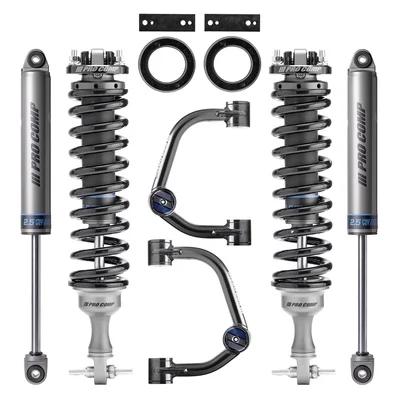

What’s included

The kit includes PRO-VST front and rear shocks, 2.5-inch coilovers, rear coil spacers and upper control arms. Confirm the hardware contents against your installation before starting.

SKU: EXPK5099BXU Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2009Limited, SR5, Sport
Toyota FJ Cruiser2007–2009Base, TRD Special Edition, Trail Teams Special Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K5099BXU fit a 2009 Toyota 4Runner?

Yes. The kit fits the 2003 to 2009 Toyota 4Runner, so a 2009 model is in range. Confirm the exact model before ordering.

How does the K5099BXU differ from the K5098BXU?

Both kits use PRO-VST shocks and 2.5-inch coilovers. The K5099BXU fits 2003 to 2009 4Runners and 2007 to 2009 FJ Cruisers, while the K5098BXU covers a longer 4Runner range.

Do the upper control arms come with this kit?

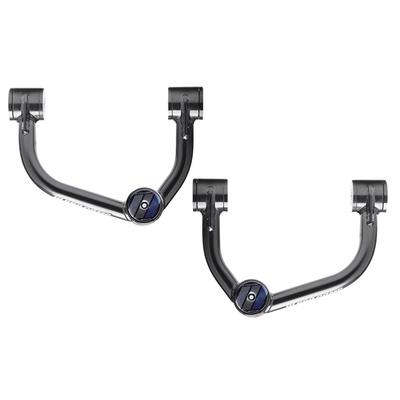

Yes. The kit includes upper control arms. They are American-made Pro Series arms with high-angle ball joints for better suspension travel and steering geometry.

What wheel and tire size is this lift built for?

Pro Comp designed the PRO-VST tuning for 17-inch wheels and 33-inch tires. The lift is 3 to 3.5 inches, with a lift height range of 0 to 3.5 inches.

Can stock bump stops stay in place with a lift?

They should be checked rather than assumed. A lift changes how far the suspension travels before the bump stop meets the axle or frame. Inspect the stops for cracking and wear, and confirm travel ends cleanly before the tire contacts the body.

What signs show shock absorbers are worn?

Common signs include bouncing after bumps, nose dive under braking, fluid seeping down the shock body and uneven tire wear. Shocks that have lost damping can also make steering feel loose on highway runs. Replacing them as a pair keeps both sides matched.
