Overview
The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK4110T (kit K4110T), is a stage 1 suspension lift for 1981 to 1989 Ford F-150 trucks. It fits the Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT and XLT Lariat versions.
The kit provides 4 inches of stage 1 lift. The specifications list a lift height range of 4 to 5.5 inches, a block or spacer rear and a block and U-bolt rear lift component. PRO-X shocks are included at the front and the rear.
Key features
- 4-inch stage 1 suspension lift

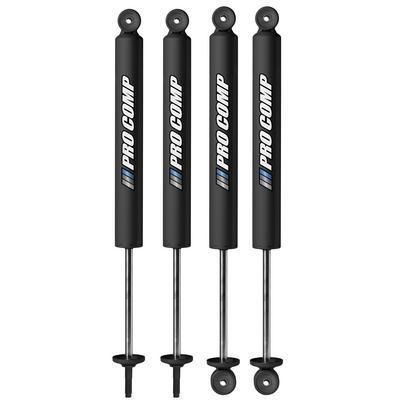

- PRO-X shocks at the front and rear, included
- Block or spacer rear with U-bolts
- Lift height range of 4 to 5.5 inches
Older F-150 driving notes
Trucks from the early 1980s often have worn steering and suspension bushings that were never replaced. A lift adds angle to the front and rear components, so those bushings are easier to overload. Inspect the front end before the install and replace anything that moves freely.
Brake lines and the parking brake cable deserve attention when the rear moves up. Stretch or chafing can appear weeks later, so check the lines for kinks and the cable for smooth travel after the first drives.
Fuel lines and the exhaust may also need clearance checks. Tuck them away from the new hardware and use new clamps where the old ones have hardened, since older rubber breaks down with age and heat.
- Inspect front bushings and tie rod ends
- Check brake lines for kinks after installation
- Verify exhaust and fuel line clearance
- Recheck U-bolts after the first few drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK4110T |
| Kit code | K4110T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt |
| Shocks included | Yes |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1981 to 1989 Ford F-150 in the Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT and XLT Lariat versions.
The list does not include the 1980 and earlier F-150 or the 1990 and newer models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rear block and U-bolt setup raises the rear height, so measure the truck after installation and have the alignment checked.
What’s included

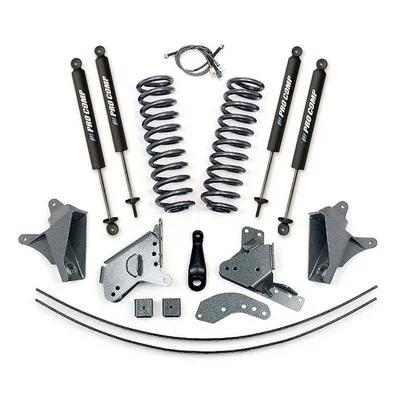

The 4-inch stage 1 lift kit with PRO-X front and rear shocks.
