Overview

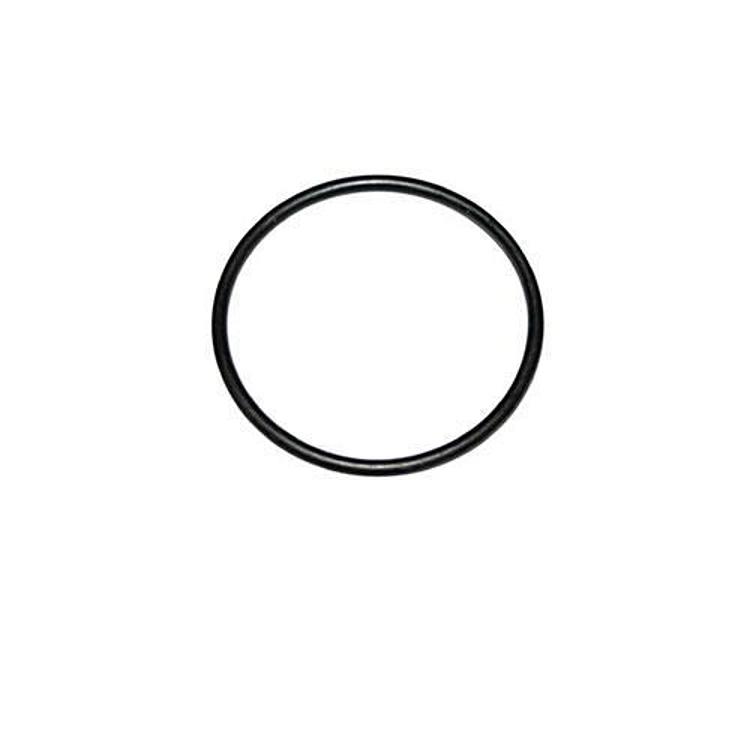

The Omix-Ada 17730.01 is a fuel sending unit O-ring gasket with an overall diameter of 2-5/8 inch and a thickness of 1/8 inch. It fits Jeep CJ5, CJ6, CJ7 and Scrambler models from 1970 to 1986.
Omix-Ada builds this gasket to original specifications and backs it with a limited five year warranty. Measure your original seal before fitting the new one, since diameter and thickness are the main dimensions.
Key features
- Overall diameter of 2-5/8 inch
- Thickness of 1/8 inch
- Direct OE replacement built to original specifications
- Backed by a limited five year warranty
Matching a sending unit seal
The sending unit gasket sits between the sending unit flange and the fuel tank, and it keeps fuel and vapor from escaping at that joint. Because the gasket is small, a poor fit can look fine at first and still leak once the tank warms and the fuel level changes.
Compare diameter and thickness with the old seal before buying, and check the groove or flange profile on the tank. Some owners replace the gasket when they replace the sending unit itself, since the old seal may have already taken a set. Keep the sealing surface clean and dry during installation.
- Clean the flange with a plastic scraper
- Check that the gasket sits flat in its groove
- Watch for odor or stains after the first fill
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 17730.01 |
| UPC | 804314018627 |
| Overall diameter | 2-5/8 inch |
| Thickness | 1/8 inch |
| Type | O-ring gasket |
| Warranty | Limited five year warranty |
Vehicle fitment
It fits 1970-1983 CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade); 1970-1971 CJ6 (Base); 1976-1986 CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade); and 1981-1985 Scrambler (Base, Laredo, Renegade, SL, SR).
It does not fit CJ5 or CJ6 models before 1970, or Wrangler YJ and TJ models. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package contains one O-ring gasket. Check the quantity against your installation before starting.
