Overview

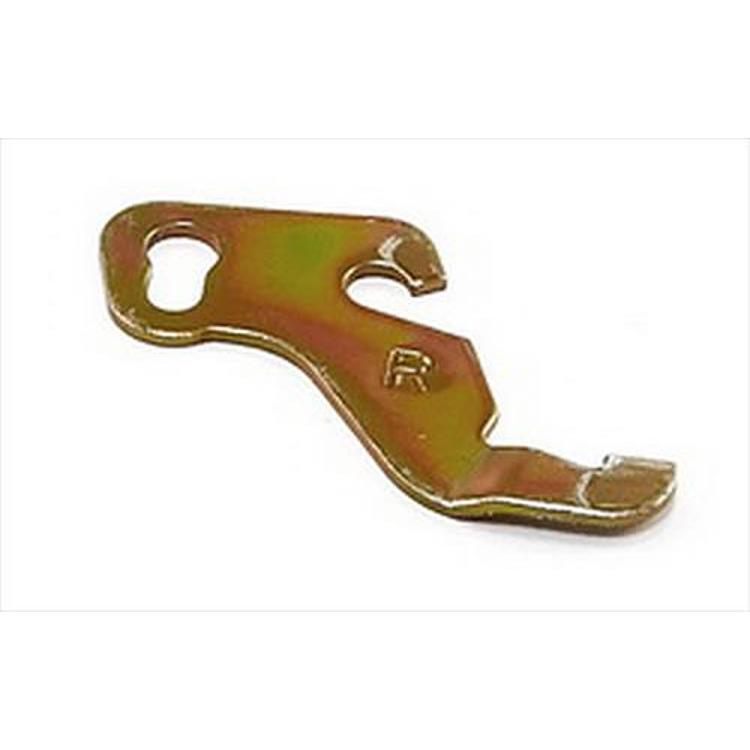

The Omix-ADA 16752.22 is a self-adjust brake shoe lever for the rear passenger-side drum brake on 1993–2001 Jeep Cherokee (XJ) and 1993–1998 Jeep Grand Cherokee (ZJ) models with 10 inch brakes.
Omix-ADA describes its parts as direct OE replacements built to the original specifications. This lever is a small adjuster component for restoring the self-adjusting action of a worn rear drum brake, and it is made for the right (passenger) side only.
Key features
- Self-adjust brake shoe lever for rear drum brakes
- Made for the passenger side, rear right position
- Sized for 10 inch brakes
- Direct-fit replacement design
- Limited five year warranty.
Restoring self adjust action
On 10 inch rear drums, the self adjust lever keeps the shoes at the right distance from the drum as the lining wears. When this action stops, the shoes can drag or the parking brake can feel slack, and many owners notice the problem only after the pedal starts to travel further. Restoring the adjuster usually means cleaning the mechanism and replacing any worn lever at the same time.
Work carefully around the adjuster spring and the star wheel, since they hold tension and can fly loose during removal. Check that the lever returns to its rest position after each adjustment test, and test the parking brake with the wheel turned by hand before lowering the vehicle.
- Clean the adjuster threads and pivot point
- Check the spring for stretch or cracks
- Test the parking brake after each adjustment
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16752.22 |
| UPC | 804314031176 |
| Part type | Drum brake adjusting lever (self adjust) |
| Brake size | 10 inch |
| Position | Rear right (passenger side) |
| Fit type | Direct fit |
| Warranty | Limited five year warranty. |
Vehicle fitment
It fits the 1993–2001 Jeep Cherokee (XJ) and the 1993–1998 Jeep Grand Cherokee (ZJ).
It fits those two model lines in the years shown. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Because this lever fits the passenger side only, a driver-side lever is a separate part.
What’s included
- One self-adjust brake shoe lever for the rear right drum brake
