Overview

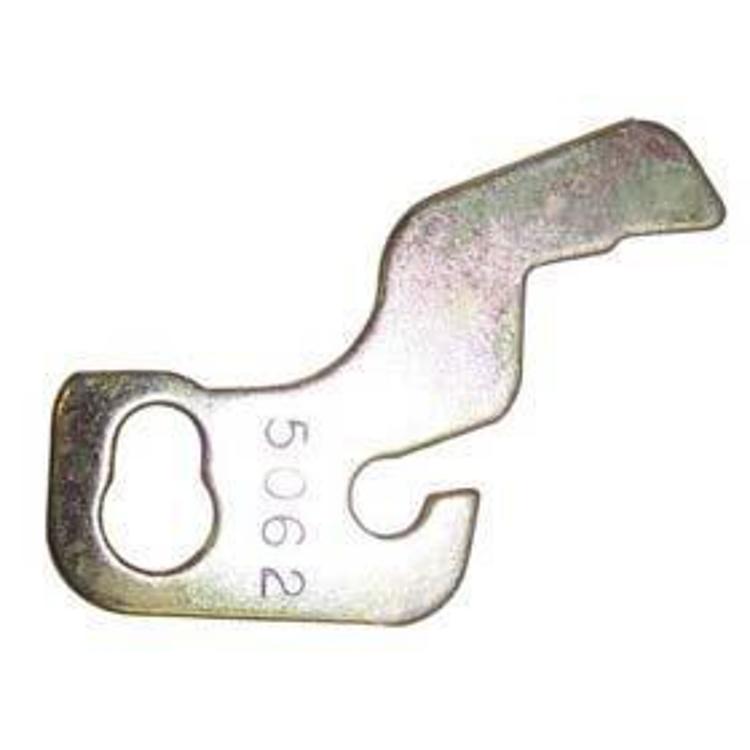

The Crown Automotive 4728546 is a passenger side drum brake self adjuster lever for 10 inch brakes on the 1991–2001 Jeep Cherokee (XJ) and the 1993–1994 Jeep Grand Cherokee (ZJ). It sits at the rear right.
Crown Automotive describes itself as a manufacturer and distributor of Jeep replacement parts for over 50 years.
Key features
- Self adjuster lever for drum brakes
- For 10 inch brakes
- Passenger side, rear right position
- Direct fit
Adjuster lever service
The self adjuster lever moves the adjuster wheel when the shoes wear, keeping the shoes close to the drum. When the lever binds or fails to engage, the shoes drift away from the drum and pedal travel grows. A worn lever can also let the adjuster slip, so the wear shows up as a high or spongy pedal.
Replacing the lever is usually done with the drum off, and the adjuster and spring should be checked at the same time. Confirm that the lever moves freely on its pivot and that the spring has its full tension. Because the passenger and driver levers are separate parts, the failed side is the one to replace, but the opposite lever should be inspected for matching wear.
- Pedal travel that keeps growing
- Adjuster that does not ratchet
- Stiff or seized lever pivot
- Worn drum contact on one side
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 4728546 |
| UPC | 848399007107 |
| Product type | Drum brake self adjuster lever |
| Brake size | 10 inch drum brakes |
| Position | Rear right (passenger side) |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1991–2001 Jeep Cherokee (XJ) and the 1993–1994 Jeep Grand Cherokee (ZJ).
The Grand Cherokee ZJ years after 1994 fall outside these fits, and the driver side lever is a separate part. Match your vehicle’s year, model and trim to these entries before buying.
