Overview

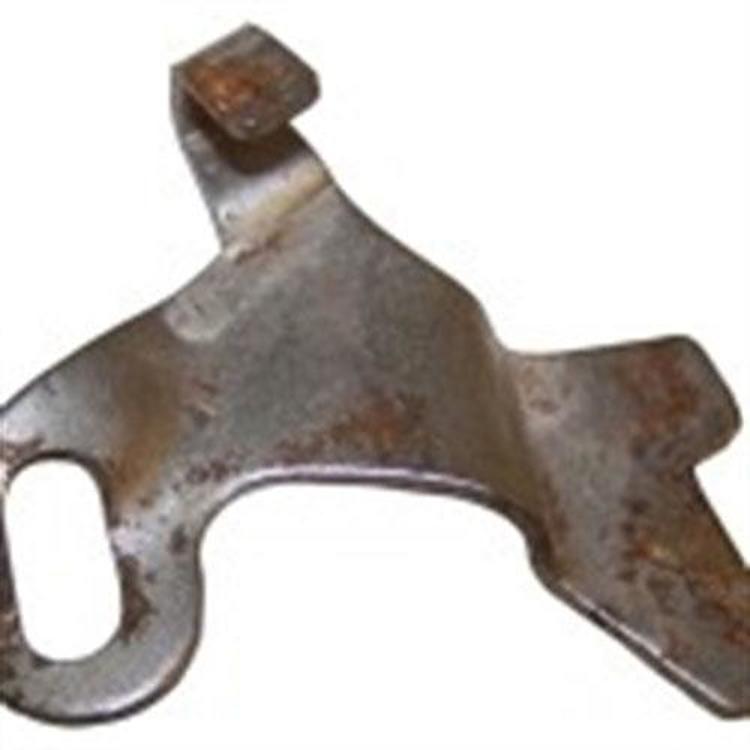

The Crown Automotive J0943141 is a drum brake adjuster lever for 11 inch drum brakes. It fits the Jeep CJ5, CJ6, CJ7, Commando, Gladiator, J-series trucks and Wagoneer (SJ) from 1964 to 1978. It is a passenger side part for the front or rear.
Key features
- Drum brake adjuster lever
- For 11 inch drum brakes
- Passenger side, front or rear
- Direct fit
Adjuster lever wear and inspection
The adjuster lever transfers movement from the cable or the actuator to the star wheel. It works under constant load, so it can wear at the pivot or bend if the drum has been dragging or the adjuster has been forced. A worn lever may fail to advance the shoes, which lets clearance grow and the pedal travel increase.
When the drums come off, look at the lever pivot for play, check the spring and make sure the tooth engages the star wheel cleanly. Clean old grease and debris from the assembly before reassembly, and keep lubricant light on the pivot and away from the shoe faces.
- Check the pivot for looseness
- Inspect the spring for fatigue
- Confirm the tooth seats on the star wheel
- Replace levers that are cracked or bent
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J0943141 |
| UPC | 848399055986 |
| Product type | Drum brake adjuster lever |
| Brake size | 11 inch drum brakes |
| Side | Passenger, front or rear |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1969–1978 Jeep CJ5, 1969–1975 CJ6 and 1976–1978 CJ7, the 1972–1973 Commando, the 1964–1969 Gladiator, J-200 through J-330 trucks from 1964–1965, the J-2500 through J-4800 series from 1965–1973 and the 1964–1973 Wagoneer (SJ).
CJ models outside 1969–1978 are not covered, and this lever is made for 11 inch drums only. Confirm your vehicle’s year, model and trim before ordering.
