Hutchinson D.O.T. Beadlock, 17x8.5 with 5 on 5 Bolt Pattern – Argent – 60637-023-1

Rock Monster

Shop Rock Monster Wheels 17x8.5 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×8.5 aluminum beadlock wheel with a 5 on 5 bolt pattern
  • Argent finish, 71 center bore, offset 0, backspacing 4.7
  • Internal beadlock design that keeps it street legal
  • Part number 60637-023-1; confirm fit for your vehicle before ordering

Description

Overview

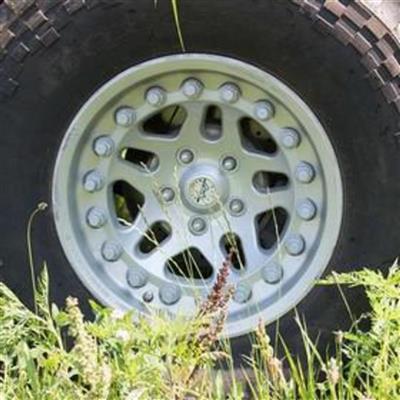

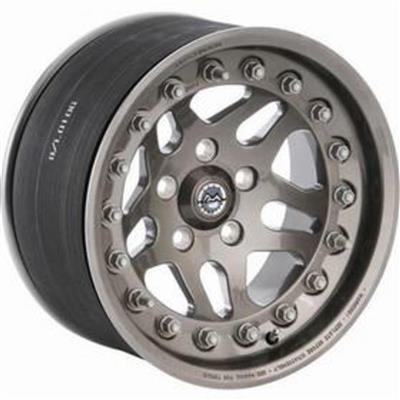

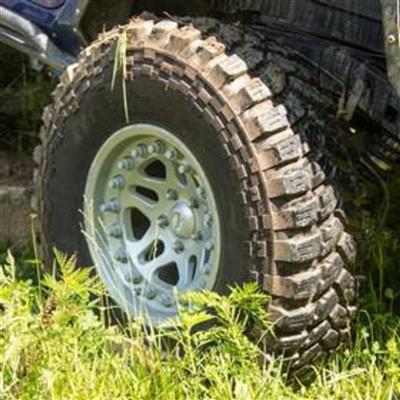

The Rock Monster Hutchinson D.O.T. Beadlock is a 17×8.5 aluminum wheel with a 5 on 5 bolt pattern and an argent finish, part number 60637-023-1. It is a beadlock wheel, built for off-road use where the tire runs at lower pressure.

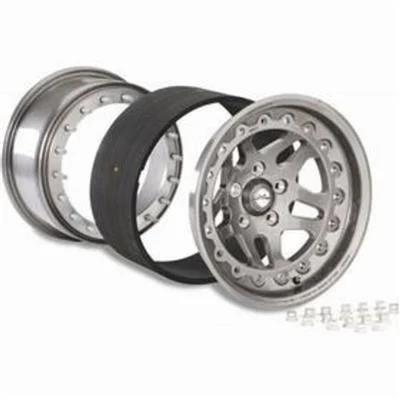

Lower tire pressure enlarges the tire footprint in sand, mud and snow, but that only works when a bead locking device holds the tire on the rim. This wheel uses internal beadlocks, which keep it street legal.

Key features

  • Beadlock style, designed to hold the tire bead at lower pressures
  • Internal beadlock design that keeps the wheel street legal
  • Aluminum construction with an argent finish
  • 17-inch diameter and 8.5-inch width
  • 5 on 5 bolt pattern with a center bore of 71
  • Offset of 0 and backspacing of 4.7

Choosing a beadlock wheel

A beadlock wheel only does its job when the locking hardware is set correctly. Before each trip off-road, check that the beads are seated and the tire is mounted evenly on the rim. Once the tire is seated, lower the pressure gradually and watch how the bead sits as the tire flexes over rocks and ruts.

Aluminum wheels handle repeated flexing well, but they can still bend or crack after hard impacts. After a rock strike or a rough landing, look for cracks around the bead seat and near the lug holes. Clean the bead seat and inspect the wheel whenever you remove the tire, and keep the valve stem and any locking hardware in good condition.

  • Re-torque lug nuts after the first few trail runs
  • Inspect bead seats after hard impacts
  • Clean mud and grit from the bead area before remounting

Specifications

Brand Rock Monster (wheels made by Hutchinson Wheels)
Part number 60637-023-1
Style Beadlock
Diameter 17 inches
Width 8.5 inches
Bolt pattern 5 on 5
Center bore 71
Offset 0
Backspacing 4.7
Construction Aluminum
Finish Argent
Series Rock Monster

Vehicle fitment

The manufacturer marks this wheel as universal fit, but a wheel has to match the vehicle it goes on. Check the bolt pattern, center bore, offset and backspacing in the table above against your vehicle before you order.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. Check the package contents for tires, valve stems and beadlock hardware before you start the install.

SKU: HUT60637-023-1 Categories: ,

Questions & Answers

Is the Rock Monster 17x8.5 beadlock wheel street legal?

Its internal beadlock design keeps the wheel street legal. Check your state's rules on wheels and tires before driving on public roads.

What bolt pattern and offset does the Hutchinson 60637-023-1 wheel use?

It uses a 5 on 5 bolt pattern, a center bore of 71, an offset of 0 and a backspacing of 4.7. The wheel is 17 inches in diameter and 8.5 inches wide.

Why does a beadlock matter off-road?

Running lower tire pressure gives a larger footprint in sand, mud and snow. That benefit only holds when the wheel has a bead locking device that keeps the tire seated on the rim.

Does this wheel fit any vehicle?

Confirm fit for your vehicle's year, model and trim before ordering. The bolt pattern, center bore, offset and backspacing must suit your vehicle, so check those figures before buying.

How do I tell if a beadlock is slipping?

Watch for the tire moving or losing pressure unexpectedly at low pressure, and look for uneven wear or a shifted bead line after a hard run. Stop, check the bead seat and reset the locks before continuing.
