Overview

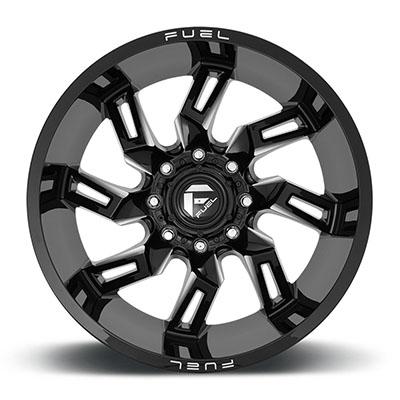

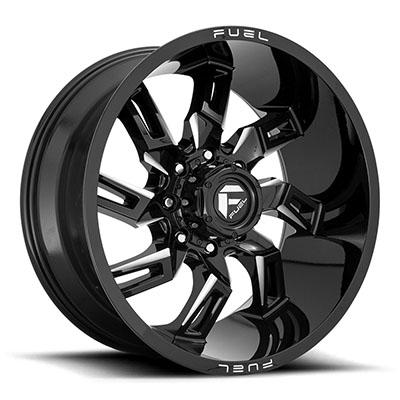

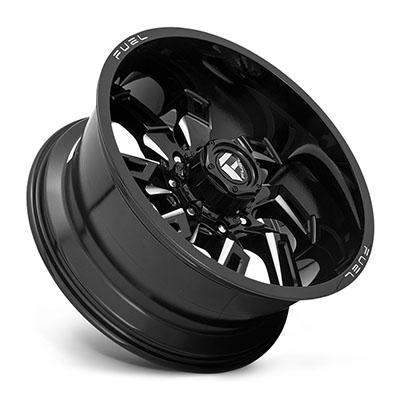

The FUEL Off-Road Lockdown D747 wheel, part number MHTD74720008447A, is a 20-inch by 10-inch aluminum wheel in gloss black milled finish. It is a directional design with a 6 on 5.5 bolt pattern, a 106 center bore, an offset of -18 and a backspacing of 6.21. Lockdown D747 is the series name.
The directional face is a fit point of its own, so check it alongside the 6 on 5.5 bolt pattern, 106 center bore and -18 offset. Confirm the wheel is mounted with the correct face direction on each side before tightening. This is a universal fit wheel.
Key features
- Gloss black milled aluminum finish
- Directional style
- 20-inch diameter and 10-inch width
- 6 on 5.5 bolt pattern with a 106 center bore
- Offset of -18 with a backspacing of 6.21
Directional wheels and rotation
A directional wheel is built to spin in one direction, so the design carries a rotation arrow and side-specific mounting. Its tread and face pattern are intended to move water and debris one way, which is why swapping sides can change how it performs in rain or mud. Confirm the arrow matches the forward direction before fitting the wheel to the hub.
Because the wheel is directional, tire rotation needs more planning than with a symmetric wheel. Keep each wheel on its own side where possible, and mark the inside and outside positions when removing them. Inspect the lip for scrapes after off-road trips, and check that the valve stem remains accessible after fitting.
- Confirm the rotation arrow before mounting
- Mark the inside and outside positions
- Inspect the lip after trail use
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74720008447A |
| Model number | D74720008447A |
| Series | D747 Lockdown |
| Style | Directional |
| Finish | Gloss black milled |
| Construction | Aluminum |
| Diameter | 20 inches |
| Width | 10 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | -18 |
| Backspacing | 6.21 |
| Fitment | Universal fit |
Vehicle fitment
No vehicle is named for this wheel. Match the 6 on 5.5 bolt pattern, 106 center bore and -18 offset to your hub, and keep the directional style in mind.
The Lockdown name identifies a wheel series, not a vehicle. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel.
Not included: No tires, lug nuts or center caps come with it.
