Overview

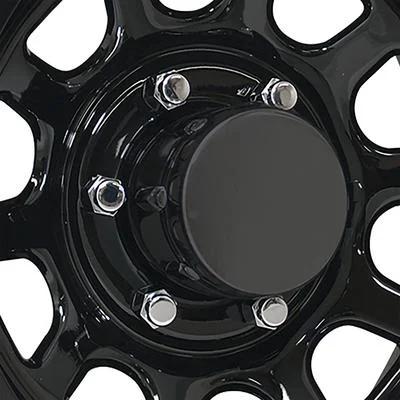

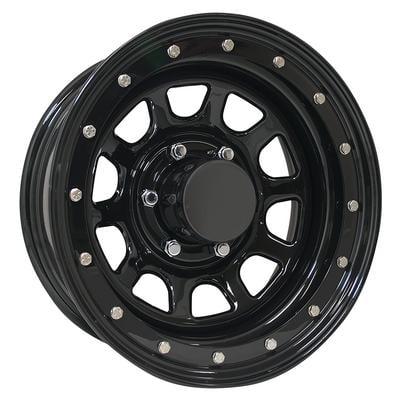

The Pro Comp PCW252-6183 is a 16-inch by 10-inch steel wheel from the Series 252 line, sold under the Street Lock name, with a 6 on 5.5 bolt pattern and a gloss black finish. Pro Comp describes its Rock Crawler Xtreme Series 252 wheels as made from quality materials with a durable gloss or flat black powder coating.
The wheel has a windowed style, a 108 center bore, a -38 offset and a 4 backspacing. The steel construction and gloss black powder coat make up the wheel’s finish.
Pro Comp labels the wheel universal fit, so the fit is set by the bolt pattern, center bore, offset and backspacing rather than by a named vehicle.
Key features
- Steel construction with a windowed style
- Gloss black powder coat finish
- 16-inch diameter and 10-inch width
- 6 on 5.5 bolt pattern and 108 center bore
Wider wheels and tire clearance
A 10-inch wide wheel gives a tire a wider footprint than a narrow wheel, and that changes how the tire sits on the sidewall and how much room it needs. Tire sizes that look right on paper can still rub a fender or a control arm once the wheel is mounted. Compare tire width and overall diameter with the wheel width before buying tires, and recheck clearance once the tires are on.
Gloss black powder coat looks sharp on a clean wheel but shows scuffs from rock contact sooner than some finishes. Clean the wheel with a mild soap and a soft brush, avoiding harsh solvents that can dull the coating. Inspect the lip and bead seat each time the tire is removed, looking for gouges that could prevent a good seal.
- Confirm tire width fits the wheel width
- Recheck clearance at full steering lock
- Clean with mild soap, not harsh solvents
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW252-6183 |
| Series | 252 Series, gloss black |
| Style | Windowed |
| Finish | Gloss black |
| Construction | Steel |
| Diameter | 16 inches |
| Width | 10 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -38 |
| Backspacing | 4 |
| Fitment label | Universal fit |
Vehicle fitment
This wheel is labeled universal fit, which names no vehicle. Match the 6 on 5.5 bolt pattern, 108 center bore, -38 offset and 4 backspacing to your hub and tire clearance before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Lug nuts must match the wheel’s seat type. Center caps and lug nuts are sold separately, so buy them before mounting the wheel.
What’s included
The wheel only.
Not included: Center caps and lug nuts, which are sold separately.
