Overview

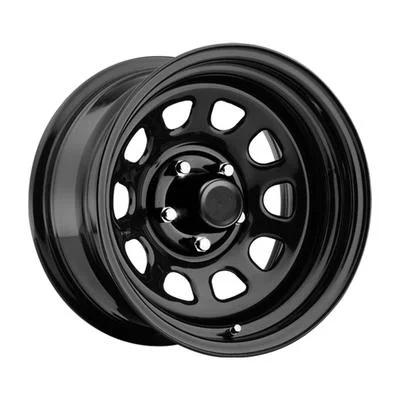

The Pro Comp 51 Series Rock Crawler 15×8 wheel, part number PCW51-5862, is a 15-inch steel wheel with an 8-inch width. It is one of the few in this series with a 5 on 4.75 bolt pattern, and its finish is gloss black in a windowed style.
The wheel has an 83 center bore, a 0 offset and a backspacing of 4.5. It is a steel wheel from the Rock Crawler line, which comes in several sizes and backspacings. It is universal fit and is not tied to a specific vehicle.
Key features
- Steel construction
- 15-inch diameter, 8-inch width
- 5 on 4.75 bolt pattern
- Center bore 83
- Offset 0 with backspacing 4.5
- Gloss black windowed style
Measuring an unusual bolt pattern
Bolt patterns describe the number of studs and the diameter of the circle they sit on, measured in inches. Two hubs can look similar yet use different circles, and a wheel that is slightly off will not seat correctly or will load only a few studs. Measure from the center of one stud to the far edge of the opposite stud, and compare the result with the pattern on the wheel before ordering.
Center-bore fit matters as much as the stud pattern. A hub-centric wheel relies on the bore to carry the vehicle weight, so a bore that is too large needs hub rings, which add a part and another point to check. Keep the lug nuts matched to the seat type on the wheel, because a mismatched seat can work loose on rough trails.
- Check the hub with a bolt-circle gauge or careful measurement
- Confirm the seat style of the lug nuts before buying
- Test-fit before the first off-road trip
- Keep the spare wheel the same pattern
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW51-5862 |
| Wheel diameter | 15 inches |
| Wheel width | 8 inches |
| Bolt pattern | 5 on 4.75 |
| Center bore | 83 |
| Offset | 0 |
| Backspacing | 4.5 |
| Style | Windowed |
| Finish | Gloss black |
| Construction | Steel |
| Series | 51 Series District |
Vehicle fitment
This steel wheel is universal fit and has no vehicle list. The 5 on 4.75 pattern is not a standard 5 on 4.5 or 5 on 5 layout, so confirm the hub before choosing this wheel.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the bolt pattern is 5 on 4.75, measure the hub bolt circle before mounting. The 0 offset keeps the wheel face centered, which should still be checked against caliper room.
This steel wheel is built for rough terrain use. The 83 center bore and 0 offset place the face near the centerline, and the 5 on 4.75 pattern must be measured on the hub before mounting.
What’s included
Not included: center caps and lug nuts, sold separately.
