G2 Toyota 8 Inch 5.29 High Pinion Third Member With Detroit Locker – 7-2043-529RL

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Toyota 8 inch high pinion third member, 5.29:1 gear ratio
  • Detroit Locker differential listed
  • High pinion layout aimed at ground clearance and driveshaft angles
  • No Toyota years or models are listed

Description

Overview

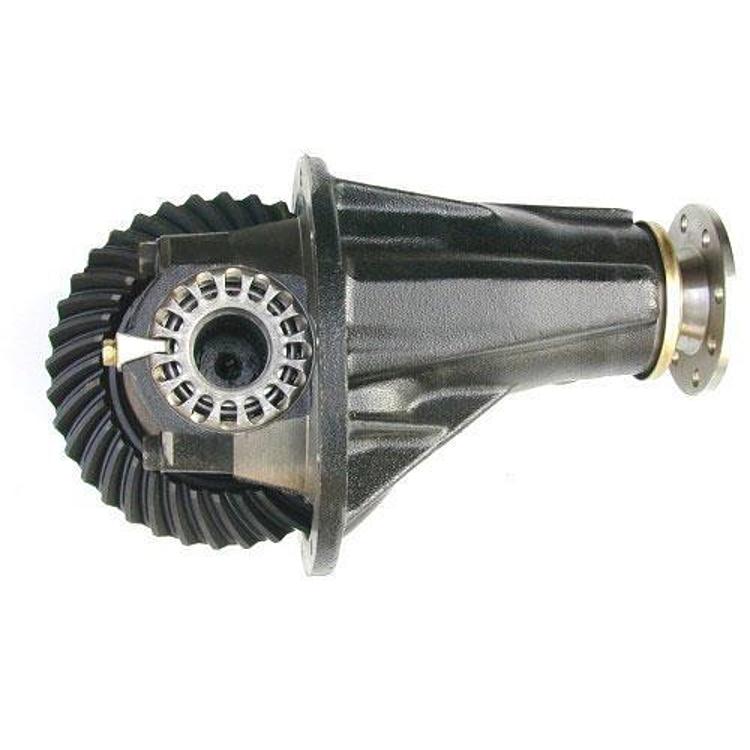

The G2 Toyota 8 inch high pinion third member, part number 7-2043-529RL, is a 5.29:1 third member assembly with a Detroit Locker differential. G2 designed the high pinion layout to increase ground clearance and improve driveshaft angles that are compromised by excessive lift.

The assembly is built in house by experienced builders using high-grade components. Confirm the application for your Toyota year and model before installation.

Key features

  • High pinion layout that raises ground clearance.
  • Aimed at driveshaft angles compromised by excessive lift
  • Detroit Locker differential
  • 5.29:1 gear ratio

Driveline angles after a lift

Raising a vehicle changes the angle between the transfer case and the axle, and steep angles increase vibration and wear on the U-joints. A high pinion moves the pinion upward, which can reduce the angle the driveshaft has to work through. It is one part of the driveline, so it does not replace correct shaft length or joint angles elsewhere.

Measure the pinion and transfer case angles with an inclinometer before and after installation. Look for drive vibration at highway speed, and check U-joints for play after the first drives. Pinion height also affects gear mesh, so the setup should be done by a qualified builder.

  • Measure pinion and transfer case angles
  • Check U-joints and slip yoke for wear
  • Confirm driveshaft length after the lift
  • Watch for vibration at highway speed

Specifications

Brand G2 Axle and Gear
Part number 7-2043-529RL
UPC 631410112092
Third member make Toyota
Housing Toyota 8 inch
Pinion High pinion
Differential Detroit Locker
Gear ratio 5.29:1

Vehicle fitment

The housing is a Toyota 8 inch design, so compare it to your own axle before installing.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A gear set needs professional setup and a break-in period. Because the high pinion is meant to correct driveshaft angles, check the driveline angles after installation.

What’s included

It is a complete third member assembly. Axle shafts, bolts and mounting hardware are not included.

SKU: G/27-2043-529RL Category:

Specification

Shipping weight 65.00 lbs
Package dimensions 18.00 × 12.00 × 12.00 in
brands

Questions & Answers

What is the difference between the 7-2043-529RL and the 7-2043-529L?

Both are 5.29:1 Toyota 8 inch units. The 529RL is a high pinion design with a Detroit Locker, while the 529L has a standard pinion, so compare pinion height against your driveline.

Will the high pinion third member fit my Toyota?

Confirm fit for your vehicle's year, model and trim before ordering. Check that the high pinion housing matches your Toyota 8 inch axle.

Does the high pinion help lifted vehicles?

G2 designed the high pinion layout to increase ground clearance and improve driveshaft angles that are compromised by excessive lift. Driveline angles should still be checked after installation.

What tools are needed to check driveline angles?

An inclinometer or digital angle finder is the usual tool. Measure the pinion and transfer case angles with the vehicle at ride height, then compare them.

Should the pinion seal be checked after installation?

Yes. Check the pinion seal and cover gasket for seepage after the first drives, and top up the lubricant to the correct fill level.
