G2 Ford 9 Inch 3.062 Inch Bore Aluminum 3rd Member Case – 66-2011BA

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Ford 9 inch rear third member case, 3.062 inch bore
  • Aluminum case for weight savings
  • Nodular iron is offered as the stronger option
  • No Ford model years are listed

Description

Overview

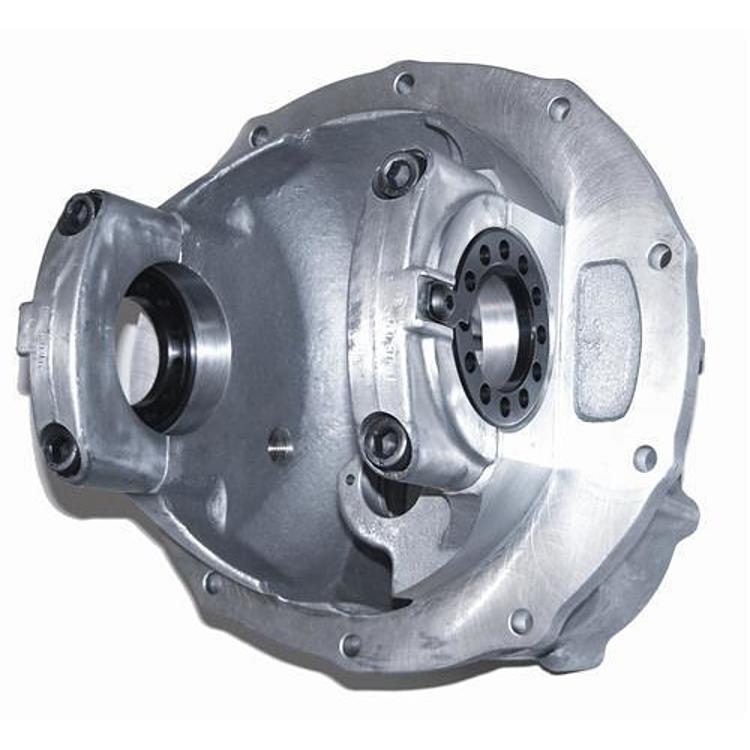

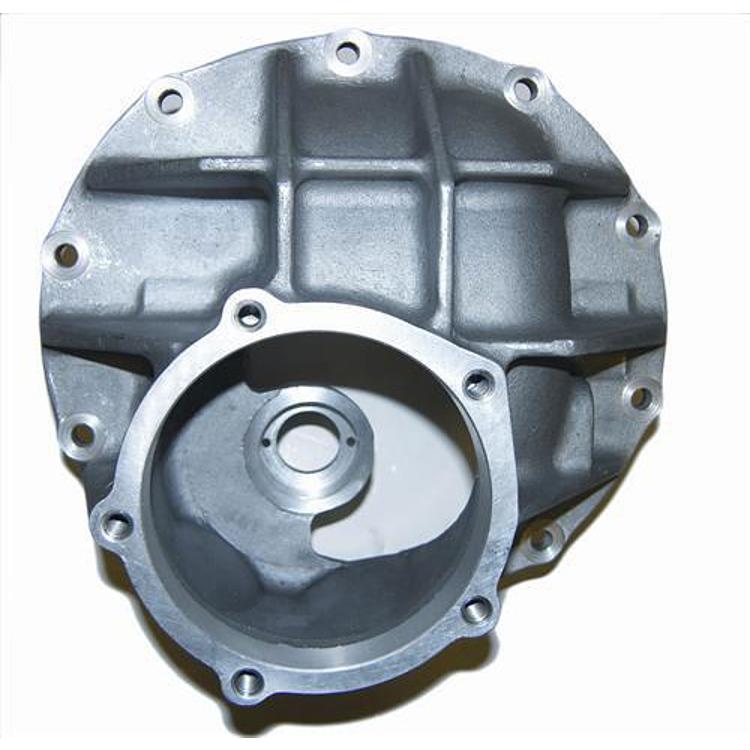

The G2 Ford 9 inch rear third member case, part number 66-2011BA, is an aluminum third member housing with a 3.062 inch bore. G2 says its third member cases are designed to handle ultra high horsepower engines and large tires.

Nodular iron is offered for maximum strength, while aluminum is chosen for maximum weight savings. No Ford model years are stated, and Ford 9 inch is an axle designation, so confirm fit before installation.

Key features

  • Aluminum case for maximum weight savings
  • 3.062 inch bore
  • Rear position
  • It is designed for high horsepower engines and large tires.

Aluminum or nodular iron cases

Third member cases carry the ring gear and differential, so they take the load of every torque pulse from the axle shafts. Aluminum cases save weight, which helps suspension travel and unsprung mass, but the material is softer under heavy shock loads. Nodular iron is heavier but resists deflection and fatigue better, which suits heavy towing or hard use.

The case material is only one part of the choice. Bore size, mounting pattern and housing design have to match the axle exactly, and the internal gears must be set up for the new case. Inspect the bearing bores and mounting faces for wear before reusing an old case.

  • Aluminum is lighter but softer under shock
  • Nodular iron is heavier and more resistant to flex
  • Match the bore to the axle before buying
  • Check bearing bores for wear before reuse

Specifications

Brand G2 Axle and Gear
Part number 66-2011BA
UPC 631410107869
Position Rear
Housing type Ford 9 inch
Bore 3.062 inch
Material Aluminum

Vehicle fitment

Match the 3.062 inch bore and housing to your axle before installing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A case is a housing, so the ring and pinion gears and differential must be fitted and set up by a qualified builder. Gear setup and break-in are professional tasks.

What’s included

It is the third member case itself. Not included: The ring and pinion gears and differential are not included.

SKU: G/266-2011BA Category:

Specification

Shipping weight 17.00 lbs
Package dimensions 18.00 × 12.00 × 12.00 in
brands

Questions & Answers

What is the bore size of the 66-2011BA?

The 66-2011BA has a 3.062 inch bore and is an aluminum third member case for the Ford 9 inch rear housing. Nodular iron is offered as the stronger material choice.

Is this a front or rear third member?

It is a rear unit for a Ford 9 inch housing. Front and rear positions are separate parts, so match the position to your axle before installing.

Will this 9 inch case fit my Ford?

No Ford years or models are listed, so fit is not confirmed. Compare the Ford 9 inch housing and bore to your axle, and confirm your vehicle's year, model and trim before ordering.

When is a stronger case worth choosing?

Heavy towing, large tires and frequent hard use put more load on the case, which is when a stronger material is worth considering. For light off-road use, an aluminum case is usually adequate if the axle matches.

Does a new case need new bearings?

Usually yes. Bearings are pressed into the case and wear with use, so inspect them and replace any worn bearing during the rebuild. Fresh seals are also a good idea.
