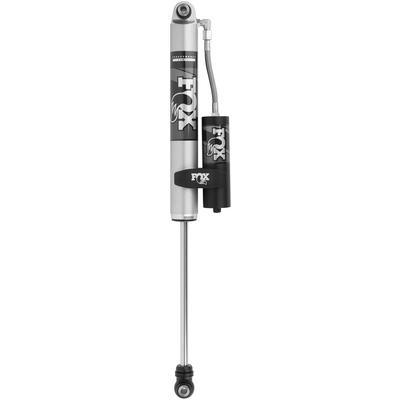

FOX Performance Series 2.0 Smooth Body Reservoir Shock Set for 4.5-6″ Lift – 985-24-230

FOX

$384.95In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:10 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear reservoir shock set for a 4.5 to 6 inch lift, fits 2020–2026 Jeep Gladiator
  • Billet reservoir clamp included
  • External reservoir for added oil and nitrogen volume
  • Eyelet top and bottom mounts, 2.0 in body
  • Part number FOX985-24-230

Description

Overview

The FOX Performance Series 2.0 Reservoir Smooth Body Shock Set, part number FOX985-24-230, is a rear set sized for a 4.5 to 6 inch lift on the 2020–2026 Jeep Gladiator. Each shock has eyelet mounts at both ends, a 2.0 in body and an external reservoir.

Rear shocks on a Gladiator with a lift this size take on a longer stroke and more load. The reservoir gives the damping extra oil and nitrogen volume, and the billet reservoir clamp that comes with the set holds it in place. The aluminum body is clear anodized to help it shed heat.

Rear shocks on a Gladiator with a 4.5 to 6 inch lift run at a longer stroke and carry the load of the bed and any cargo at the back of the truck. The reservoir gives each rear shock extra oil and nitrogen capacity, which FOX says supports consistent damping under those conditions. The billet clamp holds the reservoir, and the aluminum body is clear anodized to help it dissipate heat faster than a steel body.

A lift of this size changes the rear geometry, so compare the rear mounts and the 2.0 in body with your current shocks before ordering. This set fits the 2020 to 2026 Gladiator only.

Key features

  • Sized for a 4.5 to 6 inch lift.
  • Billet reservoir clamp included with the set.
  • External reservoir with additional oil and nitrogen capacity.
  • Clear anodized aluminum body that dissipates heat.
  • High flow damping piston with application-specific valving.

Rear shock wear and upkeep

Rear shocks on a lifted pickup work through a longer stroke and carry more of the weight at the back of the truck. Over time the seals, bushings and piston can wear, and the first sign is often a bouncy or floating rear end on washboard roads. A reservoir shock keeps extra oil and gas volume, so it can be checked by looking for leaks at the shaft seal and the reservoir fittings.

Good upkeep starts with the mounts. Loose eyelet hardware and worn bushings let the shock twist, which accelerates wear on the body and the seals. Clean the shaft after muddy runs, since grit can cut the seal. Replacing the rear shocks as a pair keeps the damping even from side to side.

  • Look for oil on the shaft and reservoir
  • Check eyelet bushings for cracks or play
  • Keep the shaft clean after muddy trail use
  • Tighten mounting hardware after the first drives

Specifications

Brand FOX
Part number FOX985-24-230
Shock series 2.0 Performance Series
Position Rear
Lift range 4.5 to 6 in
Top mount Eyelet
Bottom mount Eyelet
Body diameter 2.0 in
Shock type Reservoir
Charge Gas charged

Vehicle fitment

It fits the 2020–2026 Jeep Gladiator across its trim range, including Altitude, Launch Edition, Overland, Rubicon, Sport S and Willys Sport. Wrangler and other Jeep models are not included.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

A rear reservoir shock set with the billet reservoir clamp.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–202680th Anniversary, Altitude, High Altitude, Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is FOX985-24-230 a front or rear set?

It is a rear set. Its position is rear, and it comes with billet reservoir clamps and eyelet mounts. It is not a front set, so use the matching FOX885 part for the front.

Does this set fit a Wrangler JL with a 4-inch lift?

No. The set is sized for a 4.5 to 6 inch lift and fits the 2020 to 2026 Jeep Gladiator only. The Wrangler JL is not included, whatever the lift height.

Is the billet reservoir clamp included?

Yes. A billet reservoir clamp is included with the rear set and holds the external reservoir. Check the package contents against your installation before starting.

Is the body aluminum?

Yes. The body is aluminum with a clear anodized finish, which FOX says dissipates heat faster than a steel body. The 2.0 in body diameter is the figure to compare with your current rear shocks.

Should rear shocks be replaced in pairs?

Usually yes. Replacing both rear shocks at the same time keeps damping even from side to side and keeps the rear ride height balanced. A single worn shock can pull the axle and wear new parts faster than expected.
