Overview

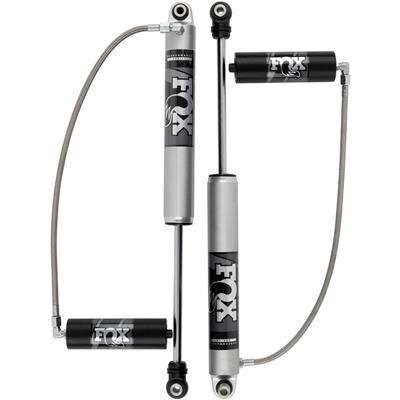

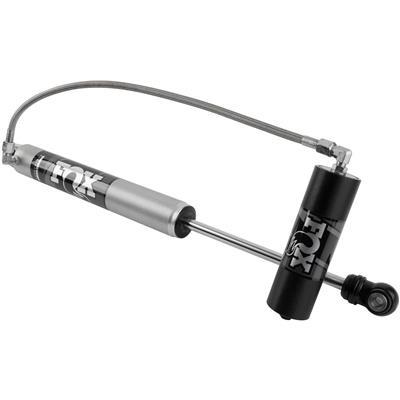

Part number FOX885-24-250 is a front reservoir shock set sized for a 4.5 to 6 inch lift on the 2020–2026 Jeep Gladiator. The shocks use aluminum bodies with eyelet mounts at both ends and an external reservoir.
At this lift height the front shocks cover a long travel range. The external reservoir adds oil and nitrogen capacity to keep the damping consistent. The clear anodized aluminum body helps the shock shed heat, and the damping piston uses valving matched to the application.
Front shocks on a 4.5 to 6 inch lift cover a longer stroke. Each external reservoir adds oil and nitrogen volume, which keeps damping steady over that travel. The clear anodized aluminum body sheds heat on long drives over rough ground, and the piston valving is matched to this application.
Front shocks on a lifted Gladiator take on more of the steering and braking loads, so confirm that your truck’s lift sits inside the stated range before ordering. The fitment is limited to the 2020 through 2026 Gladiator, so compare your model year too.
Key features
- Sized for a 4.5 to 6 inch lift.
- External reservoir with extra oil and nitrogen capacity.
- Clear anodized aluminum body with a metal-impact finish.
- High flow damping piston and valving matched to the application.
- Gas charged with a 2.0 in body diameter.
Choosing front shocks for a lift
A front shock on a lifted Gladiator does more work than a stock one. The steering, braking and cornering loads all pass through it, and a longer lift changes the angle the shock runs at. Before buying, measure your current lift height and compare it with the range this set is sized for, so the shock’s length and travel suit the suspension it will sit in.
Front shocks are often replaced alongside the bushings and bump stops that work with them. Worn eyelet bushings let the shock move off its line, which wears the eyelet and reduces control. Replacing the shock and the worn bushings together keeps the damping working as the designer intended.
- Measure your lift height before ordering
- Inspect eyelet bushings when fitting new shocks
- Check the reservoir hose clearance against the frame
- Re-check mounting bolts after the first few drives
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX885-24-250 |
| Shock series | 2.0 Performance Series |
| Position | Front |
| Lift range | 4.5 to 6 in |

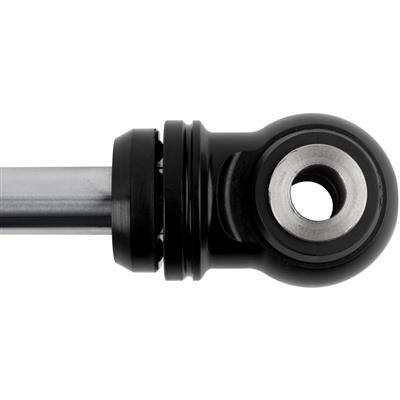

| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.0 in |
| Shock type | Reservoir |
| Charge | Gas charged |
Vehicle fitment
It fits the 2020–2026 Jeep Gladiator across its trim range, including Overland, Rubicon, Mojave and Willys Sport. Wrangler JL and earlier Jeep models are not included.
Confirm your vehicle’s year, model and trim before ordering.

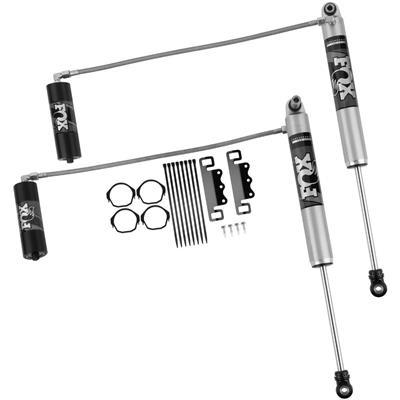

What’s included
A front reservoir shock set. Check the mounting fasteners against your installation before fitting.
