Overview
The FOX Performance Series 2.0 Reservoir Smooth Body Shock Set, part number FOX885-24-246, is a front shock set sized for a 2 to 3 inch lift on the 2020–2026 Jeep Gladiator. The shocks have eyelet mounts at both ends and a 2.0 in body with an external reservoir.
A front shock on a lifted Gladiator works through a longer range of motion. The reservoir adds oil and nitrogen capacity to help damping stay steady, and the aluminum body is clear anodized to help dissipate heat. The high flow piston uses valving matched to the application.
The title ties this set to a 2 to 3 inch lift, which places it between the stock-height and the larger-lift sets in the same line. Front shocks on a lifted Gladiator work through more travel, so the reservoir’s extra oil and nitrogen capacity is one of the reasons FOX gives for consistent damping at higher lift heights. The reservoir clamps hold each external reservoir in place on the front of the truck, so the set is complete for the front position.
Key features
- Sized for a 2 to 3 inch lift.
- External reservoir with added oil and nitrogen capacity.
- Clear anodized aluminum body that dissipates heat.
- Black anodized reservoir clamp CNC machined from 6061-T6 aluminum.
- High flow damping piston with application-specific valving.
Front travel on a lifted Gladiator
A front shock on a lifted Gladiator covers more travel than a stock shock, and it does so at a steeper angle. The reservoir gives the shock extra oil and nitrogen capacity, which supports consistent damping through that longer stroke. Heat builds faster when the shock works through more travel, so the clear anodized aluminum body helps the shock shed heat on long drives over rough ground.
A lift also changes the loads on the front end, so the shock should be checked alongside the bump stops, the steering components and the upper mounts. Look for worn eyelet bushings and cracked rubber, and make sure the reservoir clamps are tight after the first few trips. Confirm the fit for your vehicle’s year, model and trim before ordering, since a set that suits one lift height may not suit another.
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX885-24-246 |
| Shock series | 2.0 Performance Series |
| Position | Front |
| Lift range | 2 to 3 in |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.0 in |
| Shock type | Reservoir |
| Charge | Gas charged |
Vehicle fitment
It fits the 2020–2026 Jeep Gladiator across its trims, including Altitude, High Altitude, Mojave, Overland, Rubicon and Willys. Wrangler models do not fit this set.
Confirm your vehicle’s year, model and trim before ordering.

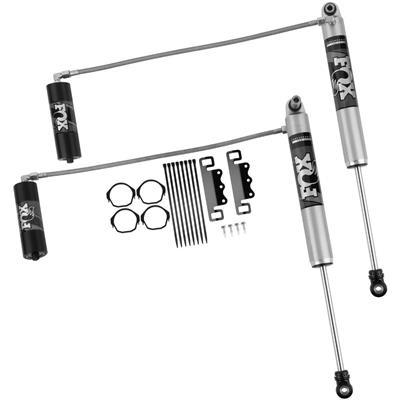

What’s included
A front reservoir shock set with reservoir clamps.
