Overview

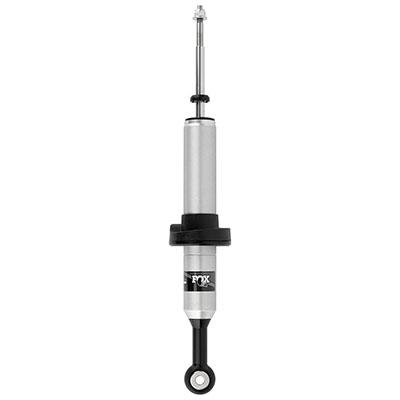

The FOX985-62-011 is a front Performance Series 2.0 snap ring coil-over IFP shock for the 2005 to 2015 Toyota Tacoma in Base, Pre Runner, TRD Pro and X-Runner models.
It is a simple bolt-on replacement designed for suspension travel and on- and off-road use.
The shock is a front coil-over design with a gas charge, a 2.0 inch body, an OEM top mount and an eyelet bottom mount. The lift range is 1 to 2, with the unit not shown.
FOX says direct replacement shocks come in hundreds of applications, from stock trucks to lifted ones, and are also sold as aftermarket kit replacements.
Key features
- Front coil-over design
- Snap ring adjustment.
- 2.0 inch body diameter
- OEM top mount and eyelet bottom mount
- Gas charged
- Lift range 1 to 2, unit not shown
Snap ring adjustment explained
A snap ring spring seat holds the spring in a set position, and moving the ring to a different groove changes preload and ride height. This type of adjustment is common on shocks meant for trail use, where the height can be set once for a given load and then left alone.
Before changing the ring, look at the spring and the seat together. Raising preload too far can make the suspension feel harsh and can stress the mounts. Keep the ring seated fully in its groove, and check that it has not slipped after rough trail sections.
- Mark the original ring position before removing the spring
- Inspect the snap ring for cracks or flattening
- Set both sides to the same groove
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-62-011 |
| Series | 2.0 Performance Series |
| Position | Front |
| Shock type | Coilover |
| Body diameter | 2.0 inches |
| Top mount | OEM |
| Bottom mount | Eyelet |
| Charge | Gas charged |
| Lift range | 1 to 2 (unit not shown) |
| Adjustment | Snap ring (per title) |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2005–2015 Toyota Tacoma in Base, Pre Runner, TRD Pro and X-Runner models.
The list covers Tacoma models from 2005 to 2015 only. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The snap ring provides an adjustable spring seat, so confirm how the adjustment works before fitting. Check the lift on your truck against the 1 to 2 range.
What’s included
One front snap ring coil-over shock.
