Overview

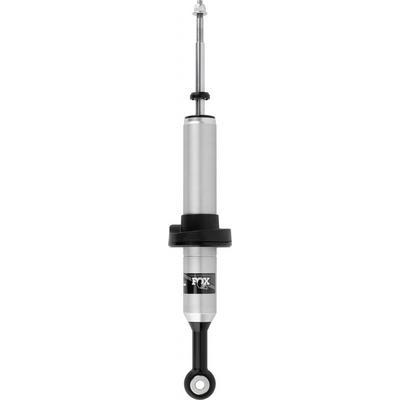

Part number FOX985-62-004 is a front coilover shock fitting 2007–2013 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. Its custom-molded spring seat lets the stock spring and mounting hardware stay in use.
A nitrogen-charged gas reservoir sits behind an internal floating piston, which keeps the gas separate from the shock oil. That separation prevents the oil mixing with nitrogen seen in a stock twin-tube shock, so the factory-tuned valving works as intended. The shock offers three preload settings for 0, 1 or 2 inches of lift.
The custom-molded spring seat is the reason the stock spring and mounting hardware can stay in use. Choosing the correct preload setting before installation is the main decision, because the setting determines how much lift the shock delivers. Confirm the setting with your installer before the shock is assembled on the truck.
Key features
- Custom-molded spring seat that lets the stock spring and mounting hardware be reused.
- Three predetermined preload settings for 0, 1 or 2 inches of lift.
- Internal floating piston keeps the nitrogen gas apart from the shock oil.
- Precision impact-extruded aluminum body that is light and rust resistant.
- OEM upper mount and eyelet lower mount on a 2.0 in body.
Setting preload before installation
The preload setting controls how much the coilover raises the front end, so it is the first decision in any install. Pick the setting for the height you want before the shock is assembled. Changing it later means taking the spring load off again, which is slower and less safe than setting it right the first time.
Because the stock spring stays in use, the coilover works with the factory geometry rather than replacing it. Check the spring seat and upper mount for wear during installation, and inspect the shock body for dents from road debris. A worn upper mount can knock or change the ride height on one side.
- Choose the preload setting before assembly
- Inspect the stock spring and seat for wear
- Check the upper mount for play after installing
- Have the front alignment checked after the install
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-62-004 |
| Shock series | 2.0 Performance Series |
| Position | Front |
| Top mount | OEM |
| Bottom mount | Eyelet |
| Body diameter | 2.0 in |
| Lift settings | 0, 1 or 2 in |
| Shock type | Coilover, IFP |
| Charge | Gas charged |
Vehicle fitment
It fits the 2007–2013 Chevrolet Silverado 1500 and 2007–2013 GMC Sierra 1500 across their trim levels. The 2500 HD and 3500 HD trucks and 2014 and newer 1500 trucks are not included.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The shock is a bolt-on unit that reuses the stock spring. Choose the preload setting that matches your intended lift, since the three settings are the only lift choices offered.
What’s included
One front coilover shock with the custom spring seat. The stock spring and mounting hardware are reused, not supplied.
