Fabtech 6 Inch Radius Arm Lift Kit w/Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks – K2030DL

Fabtech

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2008–2010 Ford F-250 Super Duty
  • 6-inch radius arm lift with replacement front coil springs
  • Rear block and U-bolt kit
  • Dirt Logic SS shocks included
  • Non-dually models only

Description

Overview

The Fabtech K2030DL is a 6-inch radius arm lift for the 2008–2010 Ford F-250 Super Duty. It uses replacement coil springs at the front in place of a coilover conversion, and a block and U-bolt kit at the rear, with Dirt Logic SS shocks included.

The radius arms have a full tubular structure with dimple die side plates, and an adjustable alignment cam at the axle sets caster. The listed tire and wheel combinations are 315/70R17 on 17×8 and 325/65R18 on 18×9.5 wheels. The kit is for non-dually models only.

Key features

  • Full tubular radius arms with dimple die side plates
  • Adjustable alignment cam at the axle
  • Replacement front coil springs
  • Block and U-bolt rear kit
  • Trac bar relocation bracket and pitman arm
  • Dirt Logic SS shocks

Choosing replacement coil springs

Replacement coil springs keep the stock coil-over-strut layout in place of a full coilover conversion. That simpler arrangement is easier to maintain, and it keeps the front components closer to their original design. The trade-off is that spring rate and ride height are set by the springs themselves, so the front stance should be measured after installation to confirm it matches the intended setup.

Radius arms on this kit need periodic checks at the bushings and the axle alignment cam, especially after off road use. When running 315/70R17 or 325/65R18 tires, look for rub points and make sure any minor trimming is complete before driving. Rear block and U-bolt hardware should be retightened after the first few drives, since the rear sits on blocks that can settle slightly.

  • Measure ride height after the front springs are installed
  • Check the U-bolts after the first few drives
  • Inspect radius arm bushings at each tire rotation

Specifications

Brand Fabtech
Part number K2030DL
UPC 674866096271
Lift height 6 inches (range 5 to 6.99 inches)
Suspension type Coilover radius arm
Front spring Replacement coil springs
Rear lift method Lift blocks and U-bolts
Tire and wheel fit 315/70R17 on 17×8, 325/65R18 on 18×9.5
Wheel backspacing 4 1/2-inch and 4 3/4-inch, with minor trimming
Applies to Non-dually models only

Vehicle fitment

It fits the 2008–2010 Ford F-250 Super Duty.

The list covers the F-250 Super Duty only. The F-350 Super Duty is not included, and dually models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Fabtech says minor trimming may be needed with the 315/70R17 and 325/65R18 tire sizes, so check the clearance against the wheels you plan to run.

What’s included

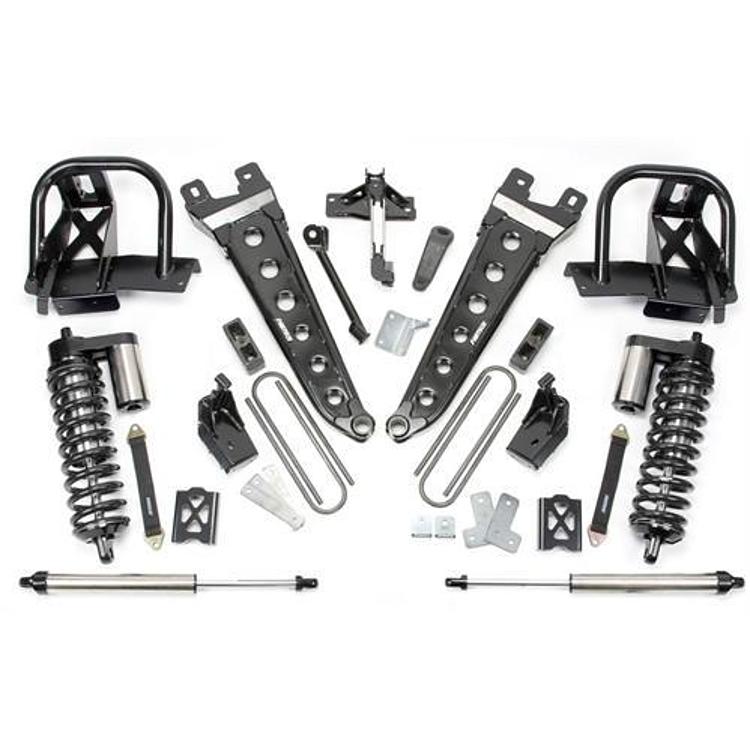

Radius arms, replacement front coil springs, the trac bar relocation bracket, a pitman arm, sway bar drops, the block and U-bolt kit and Dirt Logic SS shocks.

SKU: FABK2030DL Category:

Specification

Shipping weight 414.20 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2008–2010Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2030DL fit an F-250 Super Duty?

Yes. It fits the 2008–2010 Ford F-250 Super Duty, and it is for non-dually models only. Confirm the year and model before ordering.

How is the front lifted on the K2030DL?

The front uses replacement coil springs with the radius arm system. The rear uses a block and U-bolt kit, so the kit does not include the coilover conversion used on the K20301DL.

Are shocks included with the K2030DL?

Yes. Dirt Logic SS shocks are included with the kit, and the rear of the system uses them. The kit covers the 2008–2010 F-250 Super Duty only.

Do replacement coil springs wear out?

Coil springs hold their rate for a long time, but they can sag or crack under heavy loads. Check the front ride height at each service and look for cracks near the spring ends, and replace the springs if the stance drops noticeably.

What should be checked on the rear block setup?

Check the U-bolts for correct torque, the blocks for cracks, and the shock mounts for clearance. Rear blocks can settle slightly after installation, so recheck the fasteners after the first few drives and periodically afterward.
