Fabtech 6 Inch 4 Link Lift Kit w/Performance Shocks – K2054

Fabtech

Shop Fabtech Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Made for Super Duty trucks; confirm model year before ordering
  • 6-inch 4-link system with performance shocks
  • Bolt-on 4-link with 2-inch heavy wall links and 1-inch race style Uniballs
  • Replacement coil springs or Dirt Logic coilover conversion
  • Sway bar drop brackets, bump stop extensions and trac bar relocation bracket

Description

Overview

The Fabtech K2054 is a 6-inch 4-link lift with performance shocks, made for Super Duty trucks. It is a bolt-on 4-link system that offers wide articulation and wheel travel. The links are 2-inch diameter heavy wall tubing with race style 1-inch Uniballs, and 1/4-inch thick steel brackets secure the links to the frame without cutting or welding.

The front uses upper and lower link arms with coil springs. The 4-link system accepts either the replacement coil springs or the Dirt Logic adjustable coilover shock conversion. The rear is lifted with a block and U-bolt kit. A pitman arm corrects steering, and the system includes billet sway bar links, a trac bar relocation bracket and bump stop extensions.

Key features

  • 6-inch lift, range 5 to 6.99 inches
  • Bolt-on 4-link system without cutting or welding
  • 2-inch diameter heavy wall links
  • Race style 1-inch Uniballs
  • 1/4-inch thick steel frame brackets
  • Performance shocks included

Choosing the right setup

Choosing a 4-link lift means matching the arms, shocks and steering parts to how the truck is used. Heavier tires and dually wheels put more load on the axle and links, so check that the frame brackets and link mounts are tight after the first few drives. A stiffer shock setup can also change ride quality when the truck is loaded.

Steering geometry changes with a lift, which is why the pitman arm is part of the package. A trac bar relocation bracket and sway bar drops keep the axle centered and the sway bar working through the new range of travel. Keep the steering linkage, tie rod ends and ball joints in good condition, since worn steering parts make a lifted truck feel loose.

Signs that the links or joints need attention include clunking over bumps, uneven tire wear and steering wander. Inspect the Uniball joints and bushings at regular service intervals, and replace any part that shows play. Re-check the bump stop extensions after off-road use to make sure they are still seated.

  • Check the Uniball joints for play at each service
  • Re-check the frame brackets after the first few drives
  • Inspect the pitman arm and tie rod ends for wear

Specifications

Brand Fabtech
Part number K2054
UPC 70000471087
Lift height 6 inches (range 5 to 6.99 inches)
Suspension type 4-link
Front lift Upper and lower link arms with coil springs
Rear lift method Block and U-bolt kit
Steering correction Pitman arm
Tire 285/70R19.5 with OE dually wheels
Shocks Included

Vehicle fitment

It is designed for Super Duty trucks. Confirm fit for your vehicle’s year, model and trim before ordering.

The 285/70R19.5 tire is paired with OE dually wheels. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The 1/4-inch steel brackets attach the links to the frame without cutting or welding. A pitman arm is included for steering correction on the steering side.

What’s included

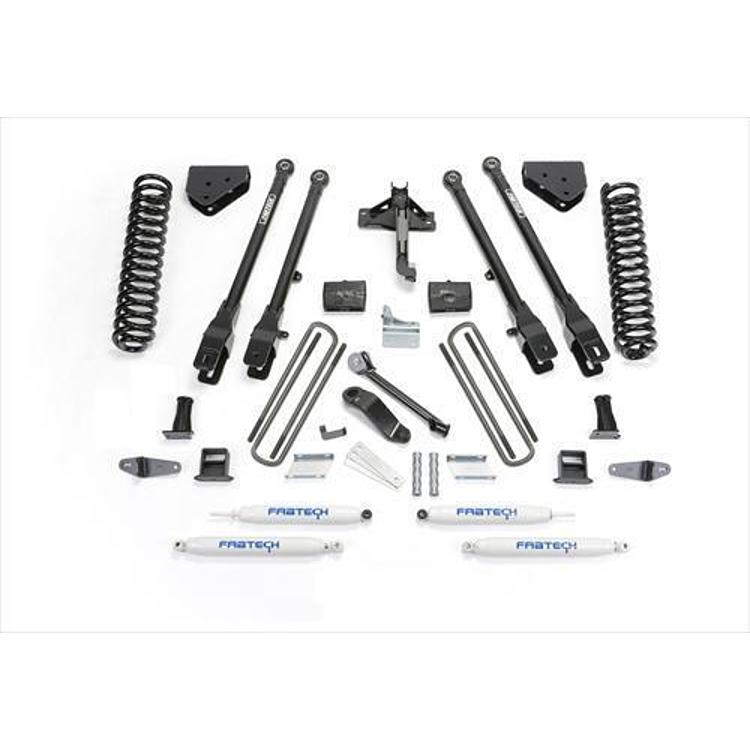

4-link upper and lower link arms, replacement coil springs or the coilover conversion option described, sway bar drop brackets, bump stop extensions, a trac bar relocation bracket, a pitman arm, a block and U-bolt kit and performance shocks.

SKU: FABK2054 Category:

Specification

Shipping weight 320.30 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which Super Duty trucks does the K2054 fit?

It is designed for Super Duty trucks. Confirm fit for your vehicle's year, model and trim before ordering, since fit depends on the exact truck.

Does the K2054 need welding or cutting?

No. The 1/4-inch thick steel brackets secure the 4-link to the frame without cutting or welding. Mounting is done with bolt-on hardware, so the frame does not need modification.

Are shocks included with the K2054?

Yes. Shocks come with the kit, and performance shocks are part of the package. The kit also includes sway bar drops, a trac bar relocation bracket and a pitman arm.

Should the steering be checked after installing a 4-link lift?

Yes. Have the steering alignment checked after the lift is installed, and look over the pitman arm, tie rod ends and drag link for play. Re-check the steering components after the first trail trips.
