Overview
The Dynatrac CR60-3X1104-A is a Free Spin hub conversion kit for Dana 60 axles. It replaces the factory unit bearings with fixed spindles and a larger stub axle, for 00-08 Dodge applications.
The conversion is intended for a weak point in Dodge Ram 4×4 trucks. It is for non-ABS applications only.
Key features
- Fixed spindles in place of factory unit bearings
- Replaceable wheel bearings
- 35 spline axle shafts
- Warn premium locking hubs
- Retains the factory wheel bolt pattern
- Larger stub axle than stock
- Non-ABS applications only
Hub conversion considerations
Converting factory unit bearings to fixed spindles changes how the front hub carries load, so the axle shaft, hub and bearing should be inspected as one system. A larger stub axle changes the bearing fit, and the wheel bearings need proper preload and lubrication. Check the hub seals and grease after the first few runs.
ABS equipped trucks use a sensor and reluctor at the hub, so a non-ABS kit is a different setup from the ABS version. Keep the front brakes and brake lines in good shape before and after the swap, and check that the axle shafts seat correctly in the spindle.
- Inspect hub seals after the first trips
- Check bearing preload after installation
- Confirm ABS setup before choosing the kit
Specifications
| Brand | Dynatrac |
|---|---|
| Part number | CR60-3X1104-A |
| UPC | 70000438548 |
| Axle type | Dana 60 |
| Axle shafts | 35 spline |
| Hubs | Warn premium locking hubs |
| Wheel bearings | Replaceable |
| Stub axle | Larger than stock |
| Application | Non-ABS only |
Vehicle fitment
Confirm the year, model, axle and ABS setup for your truck before ordering. A hub conversion depends on the axle and the truck’s ABS setup, so check both.
The kit is not for ABS-equipped trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Converting from factory unit bearings to fixed spindles means removing the hub assembly and working with the bearings and spindle. Secure and support the vehicle, and have an experienced shop handle the job if you are not comfortable with axle hub service.
What’s included

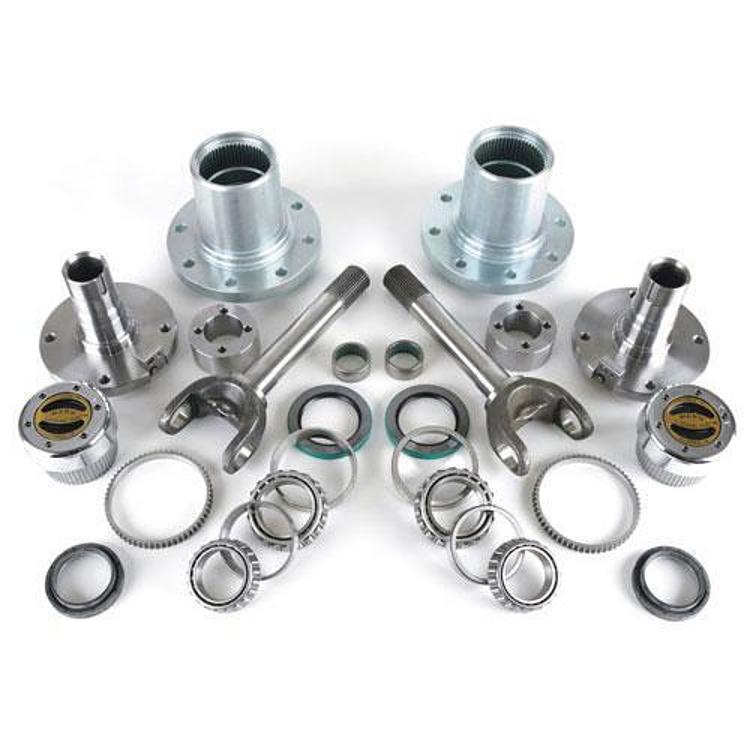

It includes a larger stub axle, serviceable wheel bearings, 35 spline axle shafts and Warn premium locking hubs.
