Currie Narrow 2.0 Inch Forged Johnny Joint with 1 Inch RH Threaded Stud – CE-9112N-13

Currie

Shop Currie Flex Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

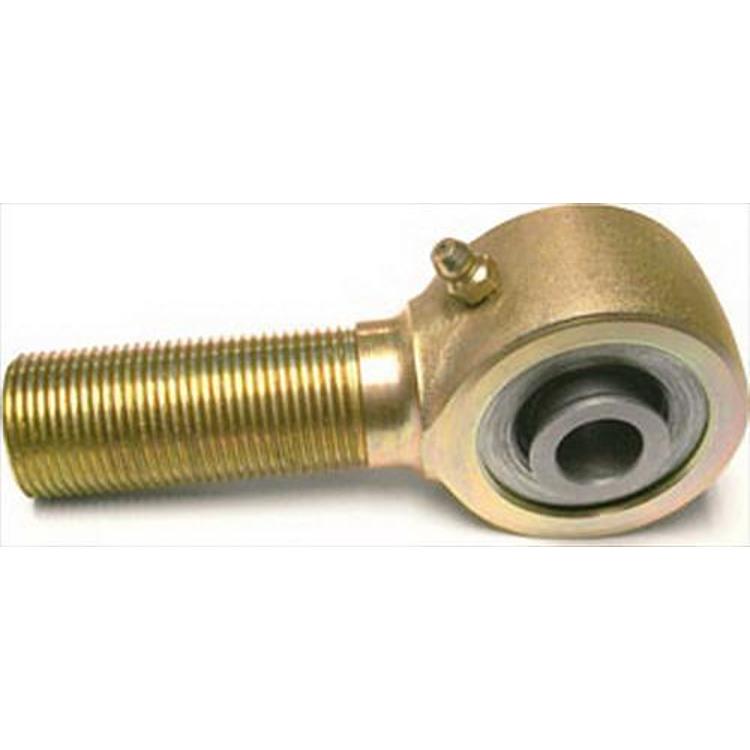

  • Currie CE-9112N-13 narrow 2 inch forged Johnny Joint with a 1 inch right-hand threaded stud
  • 1.600 inch mounting width and 14mm thru-bolt hole
  • Greaseable through the outer shell, gold zinc plated finish
  • Matching jam nut is CE-9113JN; no vehicle fitment is listed

Description

Overview

The Currie CE-9112N-13 is a narrow 2 inch forged Johnny Joint rod end with a 1 inch right-hand threaded stud, offered for universal custom builds. Currie originally designed this narrow joint for its JK front and rear track bars, and it is now available separately as a replacement or for custom work.

The forged rod end takes Johnny Joint internals made only for this narrow design. It has a 14mm thru-bolt hole, a 1.600 inch mounting width, and 2-1/4 inch of 1 inch-14 right-hand threads on the shank. The finish is gold zinc plating, and the joint is greaseable through its outer shell.

Key features

  • Narrow forged body with a 1.600 inch mounting width
  • Male rod end forging made for narrow Johnny Joint internals
  • 14mm thru-bolt hole
  • 2-1/4 inch of 1 inch-14 right-hand threads
  • Greaseable through the outer shell
  • Gold zinc plated finish
  • Serviceable finished joint

Narrow joints and track bar setups

A narrow Johnny Joint has a smaller overall body than a standard 2 inch joint, so it changes the clearance between the joint, the track bar bore and nearby brackets. Before ordering, measure the bore in the bracket and the space available around the stud, since a joint that is wider than the mounting can bind through travel. Because the internals are made for this narrow design, mixing in standard 2 inch internals can cause fit problems and early wear.

When changing a track bar end or arm joint, check the thread direction and length on the stud, and confirm the jam nut seats fully before the joint takes load. Re-check alignment after any joint change, since a small change in length moves the axle. Inspect the joint at each service for play, dry bushings and cracked seals, and replace it when movement becomes sloppy.

Specifications

Brand Currie
Part number CE-9112N-13
UPC 70000446663
Joint type Finished joint, forged
Mounting width 1.600 inch
Thru-bolt hole 14mm
Threads 2-1/4 inch of 1 inch-14, right hand
Finish Gold zinc plating
Serviceability Serviceable
Lubrication Greaseable through outer shell

Vehicle fitment

It is a universal part with no specific vehicle fitment. Currie originally designed the narrow body for JK front and rear track bars, so compare your track bar with that application before ordering.

Do not assume a track bar fit from the design history alone. Check fit against your vehicle’s year, model and trim before ordering.

Installation notes

The narrow joint uses internals made for this design, so use the matching narrow internals rather than standard 2 inch ones.

What’s included

A narrow forged Johnny Joint rod end with a 1 inch right-hand threaded stud and its Johnny Joint internals.

Not included: Jam nut CE-9113JN is a separate part and is not included.

SKU: CURCE-9112N-13 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 6.00 × 6.00 × 4.00 in
brands

Questions & Answers

Is the CE-9112N-13 the same as a standard 2 inch Johnny Joint?

No. The narrow joint uses internals made for this design, with a 1.600 inch mounting width and a 1 inch-14 right-hand stud. Check the mounting width before ordering.

Will this joint fit my Jeep track bar?

It has no specific vehicle fitment. Currie originally designed the narrow body for JK track bars, so compare your track bar against that application. Check fit against your vehicle's year, model and trim before ordering.

Which jam nut goes with this joint?

CE-9113JN is the matching jam nut for this narrow joint. It is a separate part, so add it to your order if your build needs one.

Can a narrow joint be used on a standard arm?

Usually not without checking. The narrow body and internals are built for a narrow mounting, so measure the bore and confirm the stud fits before buying. Mixing narrow internals with a standard body can lead to binding or a loose fit.
