Overview

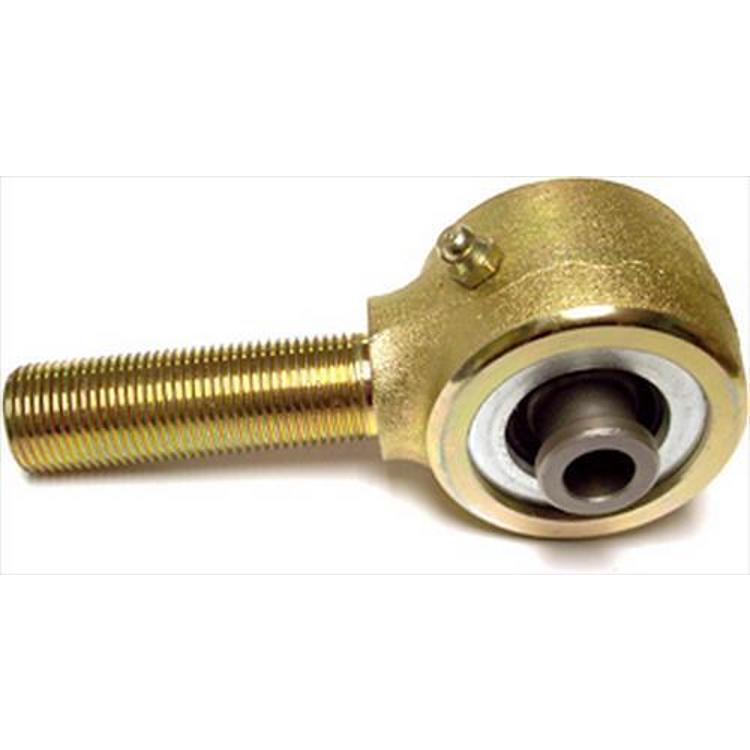

The Currie CE-9112SP is a 2 inch forged Johnny Joint rod end with a 3/4 inch right-hand threaded stud, for universal fabrication and for Currie adjustable upper control arms. It accepts the Johnny Joint internals from Currie’s CE-9112 2 inch joints, so it is a forged stud version of that joint.
The joint has a 2 inch outside diameter, a 2 inch mounting width and a 7/16 inch thru-bolt hole, with urethane bushings and a forged steel body. It accepts 7/16 inch greasable thru bolts, which are available separately, and it is greasable through its outer shell. The finish is gold zinc plating.
Key features
- Forged steel rod end with a 2 inch outside diameter
- Right-hand 3/4 inch-16 threaded shank
- Externally greased through a zerk fitting
- Urethane bushings with CE-9112 internals
- 7/16 inch thru-bolt hole
- Accepts 7/16 inch greasable thru bolts
- Gold zinc plated finish
Forged stud arms and adjustable uprights
Adjustable upper control arms rely on the joint at each end to pivot freely while the axle moves, so the joint’s bushings and grease condition matter as much as the stud. A forged stud joint like this one is usually threaded into an arm or sleeve and locked with a jam nut, so check that the threads are clean and fully engaged before the arm is loaded. Thread length matters because a short engagement can strip or loosen under load.
Grease the joint through the zerk fitting after installation and at regular service intervals, especially after water crossings or mud work. Look for play, torn boots or dry bushings, and replace worn parts before they damage the arm bore. When changing arm length or angle, check caster, pinion angle and axle movement, since the joint will see new loads.
Specifications
| Brand | Currie |
|---|---|
| Part number | CE-9112SP |
| UPC | 70000429152 |
| Joint type | Finished forged joint, serviceable |
| Outside diameter | 2 inch |
| Mounting width | 2 inch |
| Thru-bolt hole | 7/16 inch |
| Threaded shank | 3/4 inch-16, right hand |
| Thread length | 2-3/8 inch per features; 2-1/4 inch per description |
| Bushings | Urethane |
| Construction | Forged steel |
| Finish | Gold zinc plating |
Vehicle fitment
The CE-9112SP is universal fit and has no specific vehicle application. It suits custom builds and Currie adjustable upper control arms.
Check the 3/4 inch-16 stud and 7/16 inch bolt hole against your arm before ordering, and measure the thread engagement because the thread length is given two ways. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the thread engagement in your arm before final assembly, since the stud length should be verified against the arm before the joint is loaded.
What’s included
A forged Johnny Joint rod end with a 3/4 inch right-hand threaded stud and urethane bushings.
Not included: the 7/16 inch greasable thru bolts, which are available separately.
