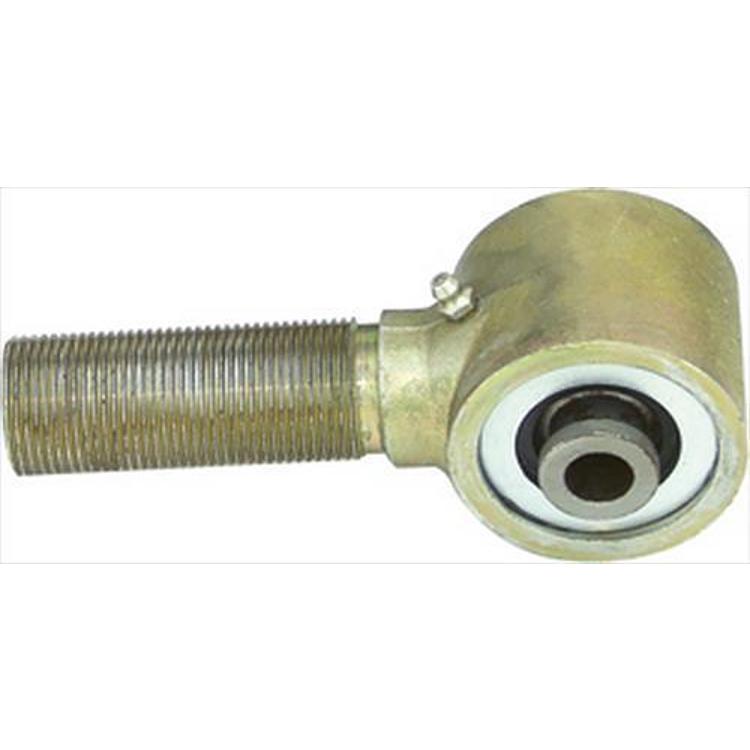

Currie 2.5 Inch Forged Johnny Joint with 1-1/4 Inch RH Threaded Stud – CE-9114-14

Currie

Shop Currie Flex Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9114-14 forged Johnny Joint, 2 1/2 in.
  • 1 1/4 in-12 right-hand threaded shank for Johnny Joint stud builds
  • 2.365 in. mounting width
  • Externally greased, sold without bolt
  • Gold zinc plating, sold each

Description

Overview

The Currie CE-9114-14 is a 2 1/2 in. forged Johnny Joint with a 1 1/4 in-12 right-hand threaded shank, made for builders who use Johnny Joints in adjustable control arms or their own fabricated arms. It is a male rod-end style forging that takes the internals of the CE-9112 2 in. Johnny Joints.

The joint is greasable through the outer shell and fits any Currie adjustable upper control arm, as well as universal builds where the builder makes the arm. Confirm fit for your vehicle’s year, model and trim before ordering.

Key features

  • Forged male rod-end style body that takes the internals of Currie’s CE-9112 2 in. Johnny Joints
  • Externally greased, with grease passing through the outer shell
  • Right-hand threaded shank for the joint stud
  • Mounting width of 2.365 in.
  • Accepts Currie’s greasable thru bolts, which are sold separately
  • Currie keeps jam nuts for these units on hand
  • Finished in gold zinc plating

Setting up a joint

A Johnny Joint works as a pivot that lets the control arm move while the axle articulates. The stud and shank carry the arm’s load, so the joint must match the arm’s mounting width, stud size and hole diameter before any welding or bolting begins.

Before installing, plan grease access. Because the joint is greased through the outer shell, position the arm so the fitting can be reached without disassembly. Use the thru bolt that matches the hole, and keep the jam nut snug against the stud so the joint does not work loose under load.

Once installed, grease the joint after the first trail runs and periodically after that. Check the stud, bolt and jam nut for loosening, and look for grease that will not purge, since that can signal wear inside the joint.

  • Check grease fitting access before final mounting
  • Match the bolt to the hole size
  • Inspect the stud and jam nut after the first trail runs

Specifications

Brand Currie
Part number CE-9114-14
UPC 70000662421
Joint type Johnny Joint, forged male rod end, externally greased
Joint size 2 1/2 in.
Mounting width 2.365 in.
Shank thread 1 1/4 in-12 right-hand threaded shank
Thru bolt hole 9/16 in. in the specifications
Finish Gold zinc plating
Sold as Each

The thru bolt hole is 9/16 in. Check the hole size and stud threads against your arm before ordering.

Vehicle fitment

It is intended for Currie adjustable upper control arms and fabricated arms. Check your arm’s load rating and stud size against the joint before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The joint is greasable through the outer shell. The thru bolt is not included, so source a bolt that matches the hole size you confirm. Check that the stud, bolt and jam nut suit your arm’s load before the vehicle is driven.

What’s included

One forged Johnny Joint, sold each, finished in gold zinc plating. The item is sold without bolt.

Not included: the thru bolt. Currie’s greasable thru bolts are sold separately, and Currie keeps jam nuts for these units on hand; neither is part of this item.

SKU: CURCE-9114-14 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 6.00 × 4.00 × 3.00 in
brands

Questions & Answers

Does the Currie CE-9114-14 fit a specific Jeep or other vehicle?

It is intended for Currie adjustable upper control arms and for fabricated arm builds. Confirm fit for your vehicle's year, model and trim before ordering, and check your arm's stud and hole sizes against the joint.

What is the Currie CE-9114-14?

It is a 2 1/2 in. forged Johnny Joint from Currie, with a male rod-end style body that takes the internals of Currie's CE-9112 2 in. Johnny Joints. It has a 1 1/4 in-12 right-hand threaded shank and a gold zinc plated finish.

Is the thru bolt included with this Johnny Joint?

No. The item is sold without bolt. Currie says its greasable thru bolts are sold separately, and it keeps the jam nuts for these units on hand.

Which thru bolt hole size does this joint use?

The thru bolt hole is 9/16 in. Confirm the hole size against your arm and bolt before ordering, since the stud threads and hole size must match your build.

How do I know when a Johnny Joint needs replacing?

Replace it when play becomes noticeable in the joint, when grease will no longer purge through the outer shell, or when the stud or shell shows cracks, bending or heavy wear. Regular greasing extends joint life.
