Overview

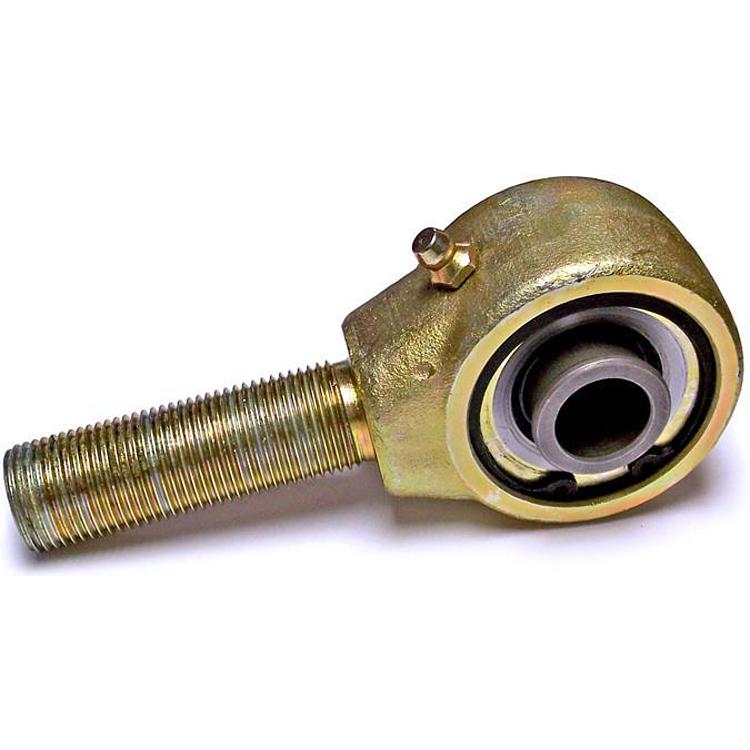

Part number CE-9112N75-13 identifies this Currie narrow forged Johnny Joint, a forged rod end with 40 degrees of overall articulation travel. It is a universal fit joint, so it is not tied to a single vehicle model.
Key features
- Narrow style design
- Forged rod end construction
- 40 degrees of overall articulation travel
- The design is a Currie exclusive.
Setting up a Johnny joint
A Johnny joint is a short rod end that lets a linkage pivot through a wide arc without binding. On a suspension or steering link, it takes the angle changes that come from wheel travel and steering input, so the joint is loaded through its full range each time the vehicle flexes. Articulation travel matters because the joint must clear surrounding parts at the far end of its arc, not only at ride height.
When choosing a joint, measure the mounting length, the bolt or stud size, and the space available for the arc before buying. Narrow body joints fit tight brackets, but they leave less room for thread engagement, so confirm the threaded section seats fully. Joints are often replaced alongside the tie rod ends or track bar hardware they connect to, since worn neighbors can shift loads onto a new joint. Check the boot, grease fitting and pivot for play at each service.
- Look for sideways play or looseness at the pivot
- Inspect for cracks, bent shanks or torn seals
- Re-check jam nuts after the first few trail runs
Specifications
| Brand | Currie |
|---|---|
| Part number | CE-9112N75-13 |
| UPC | 70000697872 |
| Articulation travel | 40 degrees, overall |
| Construction | Forged, narrow style |
Vehicle fitment
Universal fit means no specific vehicle, year or chassis code applies to this joint. Check clearance and mounting against your own build before ordering.
Confirm your vehicle’s year, model and trim before ordering.
