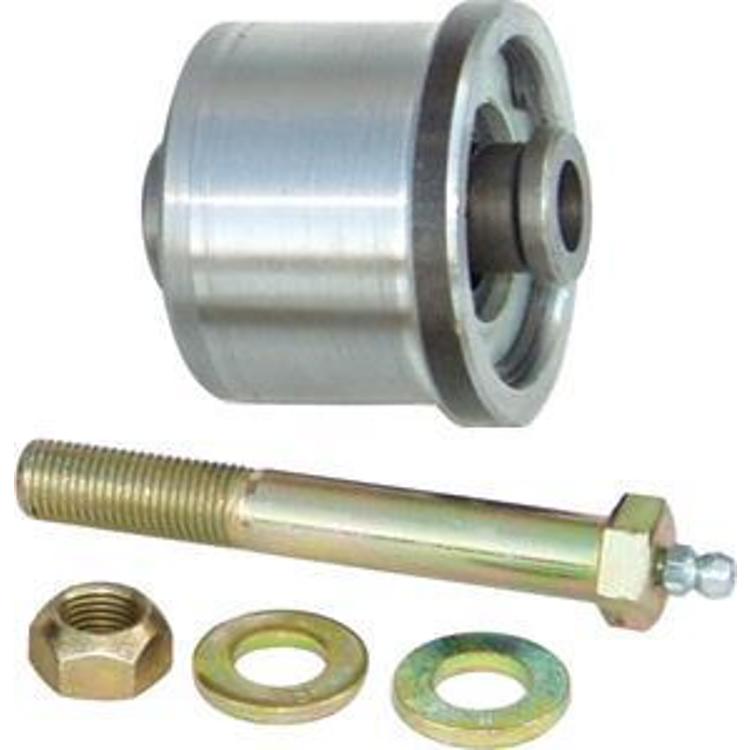

Currie Machined Johnny Joint – CE-9112M

Currie

Shop Currie Flex Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Machined Johnny Joint for custom fabricators
  • 7/16 in. bolt-fits housing casting
  • Universal fit; not tied to one vehicle

Description

Overview

The Currie CE-9112M is a machined Johnny Joint built for fabricators who make their own suspension components. Its fit is universal, so the joint is not matched to one vehicle and suits custom builds.

The main dimension is the 7/16 in. bolt-fits housing casting. Measure the housing and work out overall size and articulation before you design a link around it.

Key features

  • Machined Johnny Joint construction
  • Designed for fabricators building their own suspension components
  • 7/16 in. bolt-fits housing casting
  • Universal fit

Fabricating around the joint

Fabricating around a machined Johnny joint puts the design work in your hands. Start with the load the arm will carry, then set the housing position so the joint pivots near the centerline of the link. Keep the fastener engagement in mind early, because thin material around the housing can crack under repeated loads.

Welding near a machined housing can change the metal around it, so plan the sequence to limit heat and check for distortion afterward. Test fit the joint in the arm before final welding, and confirm it moves freely through its intended travel. Joints in load paths should be inspected on a regular schedule, with attention to play at the ball.

  • Sketch the load path before cutting
  • Test fit the joint before final welds
  • Keep a record of your fabrication dimensions

Specifications

Brand Currie
Part number CE-9112M
UPC 70000486676
Style Machined Johnny Joint
Housing fit Bolt-fits housing casting, 7/16 in.
Fitment listed Universal fit

Vehicle fitment

The joint is universal fit and is not tied to one vehicle. Compatibility depends on how you build the arm and mount the housing, not on a model year.

No Jeep generation, chassis code or year range applies to this joint. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Fastener engagement in the housing and the joint’s clearance inside the arm are set by the fabrication, so check both before final assembly. Joints in a load path should be inspected regularly for wear.

What’s included

The quantity and any included hardware are not confirmed. Check the package contents against your build before starting.

Not included: The housing casting, arm and fasteners are not part of this joint.

SKU: CURCE-9112M Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 6.00 × 6.00 × 4.00 in
brands

Questions & Answers

What is the Currie CE-9112M?

The Currie CE-9112M is a machined Johnny Joint for fabricators building their own suspension components. It has a 7/16 in. bolt-fits housing casting and universal fit, with no vehicle tied to it.

Does the CE-9112M fit a Wrangler or other Jeep?

No Jeep or other model is tied to this joint. Universal fit means your arm design, housing and mounting decide whether the joint suits your build, so check those before ordering.

What dimensions should I check on the CE-9112M?

The housing casting is 7/16 in. bolt-fits; overall joint size, ball size and articulation should be measured on your design before fabricating.

Should I use a shim or spacer inside the arm?

Use a spacer only when your design needs it to set clearance or alignment, and make sure it does not push the joint out of its intended position. Check the fit by hand before tightening. A spacer should never be used to force a joint that does not seat naturally.
