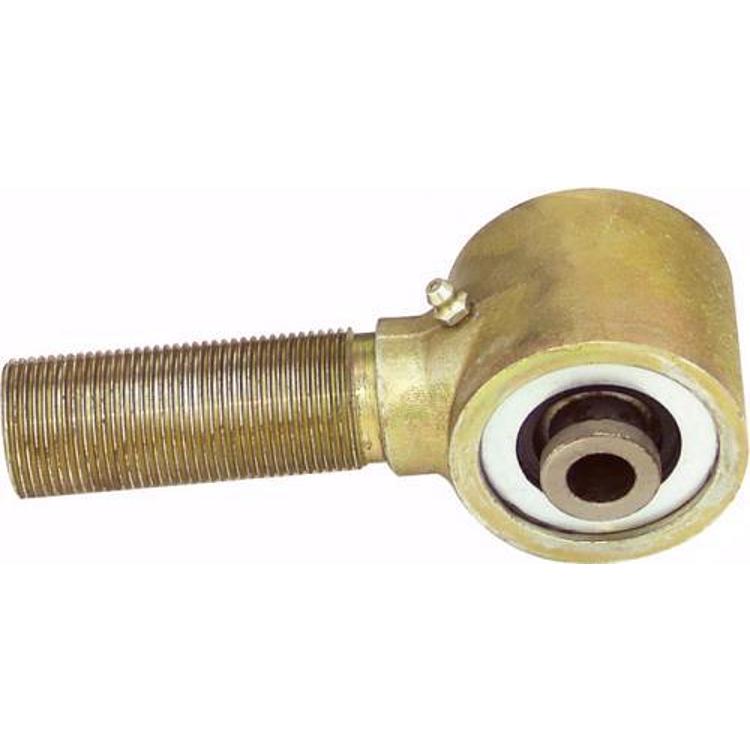

Currie Forged Johnny Joint – CE-9114-26

Currie

Shop Currie Flex Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Forged Johnny Joint, 2.5 in. listed size
  • 100% rebuildable and field serviceable
  • 1 1/4 in. RH thread, .625 in. hole, 2.625 in. ball
  • Universal fit

Description

Overview

The Currie CE-9114-26 is a forged Johnny Joint, a high angle joint for custom suspension builders. It does not transmit road noise and clunk. It measures 2.5 in. with a 1 1/4 in. RH thread and a .625 in. hole.

The joint is 100% rebuildable and field serviceable, so it can be rebuilt on the trail or in the shop. It is a universal fit, so the thread and ball must match the parts it connects to.

Key features

  • Forged construction
  • High angle joint for custom suspension builds
  • Listed by Currie as not transmitting road noise and clunk
  • 100% rebuildable and field serviceable
  • Listed size of 2.5 in.

Choosing a high angle joint

A high angle joint lets a link run at steep angles where a standard rod end would bind. On a custom arm it usually sees the most movement, so measure the bore, thread and ball before the arm is cut. Set the length and thread engagement to suit the arm, and leave clearance for full travel at both ends of the stroke.

Joints like this wear through the ball and bushing over time. Check for play by moving the link by hand with the vehicle supported, and look for grit, dried grease or torn seals. Because the joint can be rebuilt, keep a matched spare ball and bushing on hand so a worn joint can be swapped without rebuilding the arm. Retighten the jam nut after the first few trail runs, since a loose joint is often the first sign of trouble.

Specifications

Brand Currie
Part number CE-9114-26
UPC 700007240061
Construction Forged
Size 2.5 in.
Thread 1 1/4 in. RH
Hole .625 in.
Ball 2.625 in.
Rebuildable Yes, 100%

Vehicle fitment

It is a universal fit, so no specific model or year range applies. Confirm your vehicle’s year, model and trim before ordering, and check that the arm and housing suit the 1 1/4 in. RH thread and 2.625 in. ball.

No vehicle is covered by name. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the thread and hole fit the arm before assembly, and check articulation clearance on the built link. Because the joint is field serviceable, plan access for periodic inspection once the arm is built.

What’s included

The joint itself, with its 1 1/4 in. RH thread and 2.625 in. ball. The arm, tube and hardware are separate items.

Not included: The arm or tube the joint threads into is a separate item.

SKU: CURCE-9114-26 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 6.00 × 4.00 × 3.00 in
brands

Questions & Answers

What is the Currie CE-9114-26 used for?

It is a forged Johnny Joint for custom suspension builds where a high angle joint is needed. It does not transmit road noise and clunk. It has a 2.5 in. size and a 1 1/4 in. RH thread.

Can this Johnny Joint be rebuilt?

Yes. The joint is 100% rebuildable and field serviceable. Rebuild steps are not covered here, so follow standard service and inspection practice for suspension joints.

Does it fit a specific Jeep model?

It is a universal fit, so no specific model is covered. Fit depends on the arm, housing and thread used in the build, and the ball size must suit your parts.

How often should a high angle Johnny Joint be inspected?

Inspect it after the first few trail runs and then at regular service intervals. Look for play, grit in the seals and any binding through full articulation. Early checks catch wear before it affects the arm.
