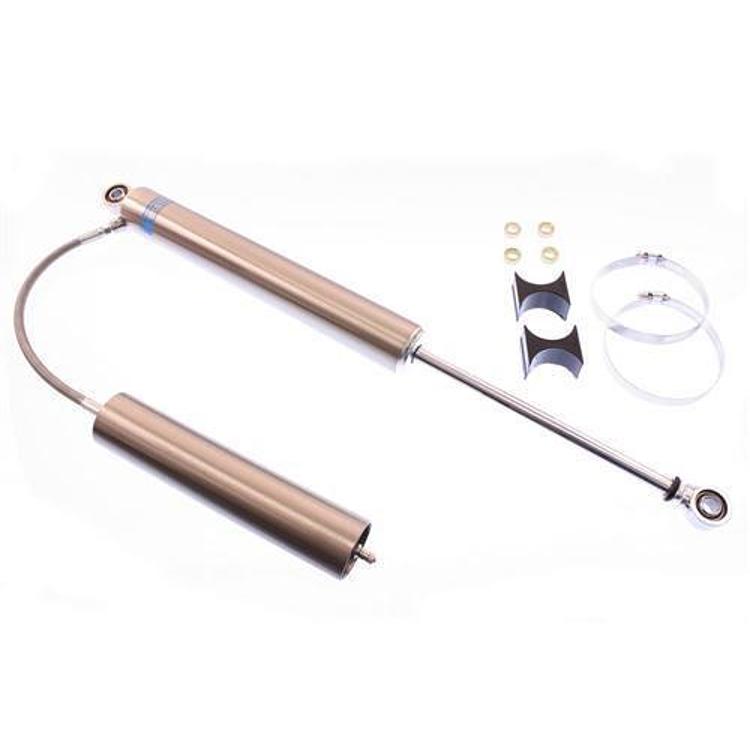

Bilstein 7100 Series Reservoir Shock Absorber – AK7110R01

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein AK7110R01, 7100 Series reservoir shock absorber
  • Gas monotube design with a 2 inch body and Schrader valve
  • Owner rebuildable with a choice of valvings
  • Fitment must be confirmed by year, model and trim; the label reads universal fit only.

Description

Overview

The Bilstein AK7110R01 is a reservoir shock absorber in Bilstein’s 7100 Series, built with a 2 inch gas pressure monotube body. The 7100 suits stock trucks, prerunner trucks, sand buggies and other recreational off-road vehicles.

The series is owner rebuildable, offers a choice of valvings, and uses a dividing piston on Schrader valve models. Match the exact part number to your application before buying. A universal fit label does not confirm a vehicle match.

Key features

  • Gas pressure monotube construction
  • Self-adjusting deflecting disc valving
  • High-flow piston that reduces harshness
  • Schrader valve with dividing piston
  • Completely owner rebuildable
  • Choice of valvings offered on the 7100 Series

Mounting a reservoir shock

A reservoir shock needs room for two parts: the shock body and the separate reservoir, which is connected by a hose. Pick a mounting spot where the reservoir stays clear of tires, brake lines and suspension travel, and where the hose can run without sharp bends. Plan the hose route before drilling or bolting anything, since a kinked or pinched hose can restrict damping.

Keep the gas charged body away from heat sources such as exhaust pipes, and check that the reservoir is shielded from rock strikes. Once mounted, cycle the suspension through its full travel and watch the hose for rubbing. Retighten mounting hardware after the first few trail runs, since new brackets often settle.

  • Route the hose with gentle bends
  • Keep clearance from exhaust and tires
  • Recheck bolts after the first few runs

Specifications

Brand Bilstein
Part number AK7110R01
UPC 790832510623
Series 7100 Series
Body diameter 2 inch
Construction Gas pressure monotube
Valving Self-adjusting deflecting disc
Valve Schrader valve with dividing piston
Reservoir Reservoir version (per title)
Fitment label Universal fit

Vehicle fitment

Confirm fit by year, model and mounting dimensions before ordering, since no year, model or chassis code is tied to AK7110R01. A universal label is not a truck, Jeep or buggy match, so measure your mounting points before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The reservoir needs its own mounting spot and a hose route that stays clear of the tires and suspension travel. Keep the gas charged body away from heat.

What’s included

One reservoir shock absorber. Check the package contents for mounting hardware and reservoir hose before starting.

SKU: BILAK7110R01 Category:

Specification

Shipping weight 21.64 lbs
Package dimensions 37.00 × 7.00 × 2.00 in
brands

Questions & Answers

What is the Bilstein AK7110R01?

It is a Bilstein 7100 Series reservoir shock absorber with a 2 inch gas pressure monotube body. Bilstein designed the series for stock trucks, prerunners, sand buggies and recreational off-road use.

Is the AK7110R01 rebuildable?

Yes. The 7100 is completely owner rebuildable and offers a choice of valvings, so the body and valving can be serviced over its life.

Which vehicles fit this reservoir shock?

Confirm the year, model and mounting dimensions for your vehicle before choosing it, since no vehicle is tied to this part number. The universal fit label is not a model match, so measure your mounting points first.

Can a reservoir shock be serviced if its valving is changed?

Yes, service is possible when the design allows it, and valving can be changed as part of a rebuild. Replace worn seals at the same time and inspect the hose ends and reservoir mounts before reassembly.
