Overview

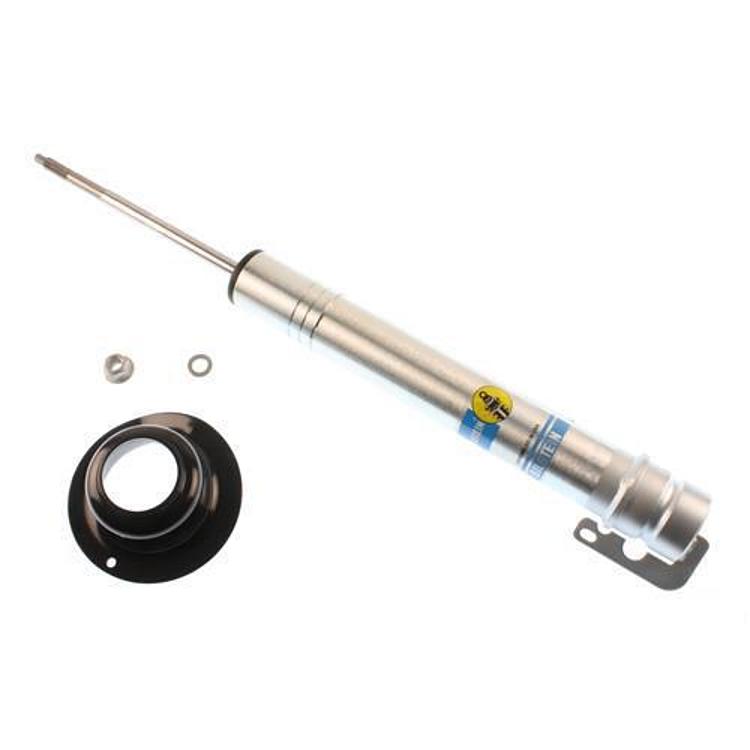

The Bilstein 24-225793 is a front ride height adjustable 5100 Series shock absorber for coilover-style front suspensions. It fits 2005 Jeep Grand Cherokee (WJ) and 2006–2010 Jeep Grand Cherokee (WK) models.
The monotube shock has a 46mm digressive piston with self-adjusting deflective disc valving. Snap-ring grooves in the body let you pick a spring seat position for the height you want, which Bilstein describes as providing increased wheel travel and improved handling.
Key features
- Snap-ring grooves for adjustable spring seat positions
- Lift range of 0.75 to 2 in. per the lift height field
- Description cites 0 to 2.5 in. of front end lift depending on application
- 46mm digressive piston and self-adjusting deflective disc valving
- Monotube design
- Zinc-plated finish
Setting spring seat height
On a coilover-style front shock, the spring seat position sets how much the truck sits, so the groove you pick should be decided before the spring is loaded. Gas charged monotube dampers keep control steady when the suspension cycles through a larger range, but they only work as intended when the spring and the shock are matched. Measure the current front ride height before you change anything.
Front alignment, caster and steering geometry all shift as the height changes, so schedule an alignment check after installing. Look at the upper mounts, bump stops and sway bar links while the wheels are off the ground. Wear in those parts can make a new shock feel loose, so inspect them before you drive on rough terrain.
- Mark the original spring seat position before adjusting
- Check bump stops for cracks or compression
- Recheck the height after the first few drives
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-225793 |
| UPC | 651860714004 |
| Shock series | 5100 Series Ride Height Adjustable |
| Position | Front |
| Fitment type | Direct fit |
| Lift height | 0.75 to 2 in. |
| Collapsed length | 13.35 in. |
| Extended length | 19.20 in. |
| Finish | Zinc plated |
| Charge type | Gas charged |
Vehicle fitment
Covered trims are the Laredo and Limited for the 2005 Jeep Grand Cherokee (WJ), and the 65th Anniversary Edition, Laredo, Limited and Overland for the 2006–2010 Jeep Grand Cherokee (WK).
Years outside 2005–2010 are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Choose the snap-ring groove that gives the lift you want, then check spring compatibility and front alignment after installing. Have a qualified installer set the height on a coilover-style front suspension.
What’s included
Check the package contents against your installation before starting.
