Bilstein 5100 Series Ride Height Adjustable Shock Absorber – 24-186698

Bilstein

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front ride height adjustable shock for trucks and SUVs with OE coilover-style front suspension
  • Corrects factory nose-down rake and supports up to 2.75 in of front lift with OE springs
  • Collapsed length 15.37 in, extended length 20.83 in
  • Fits 2004–2008 Ford F-150 and 2006–2008 Lincoln Mark LT

Description

Overview

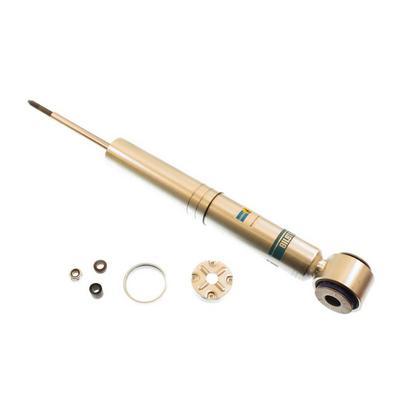

The Bilstein 5100 Series Ride Height Adjustable 24-186698 is a front shock absorber for the 2004–2008 Ford F-150 and the 2006–2008 Lincoln Mark LT. It is a zinc-plated monotube shock with a 46mm snap-ring grooved body, and it is intended to replace the factory front shock on a truck with OE coilover-style front suspension.

The OE spring seat sits in one of the body grooves, which adds preload to the factory spring and brings the front end level with the rear. The shock installs as a factory-style replacement, so no lift kit, spacers or strut extensions are needed to raise the front.

The grooves give up to 2.75 inches of front lift with OE springs, depending on the application. The design also gives more wheel travel, which leaves room for a larger tire such as a 33-inch tire.

Key features

  • Snap-ring grooves in the body set the spring seat for up to 2.75 in of front lift
  • Repositions the OE spring seat to level a nose-down front end
  • Monotube gas-pressure construction
  • Stem upper mount and eye lower mount with a 20.3mm eye
  • 14mm shaft diameter and zinc-plated finish
  • Designed as a practical alternative to strut extensions or spring pre-load spacers

Choosing a spring seat groove

The spring seat groove sets how much the front end rises, so it is worth choosing the groove before the shock goes on the truck. A higher groove adds more preload to the factory spring, which changes how the truck settles at the front. Decide on the amount of lift you want, then check that the springs you keep are in good condition, since worn springs will not hold the new height well.

A front lift changes the geometry, and the mounts do not move with the body. Inspect the bushings and spring perch for cracks after the first few drives, and retorque the mounting hardware once the ride height settles.

  • Measure the front ride height before removing the old shock
  • Check tie rod ends and ball joints for play during the install
  • Recheck the front alignment after the first short drive

Specifications

Brand Bilstein
Part number 24-186698
Shock series 5100 Series (ride height adjustable)
Position Front
Shock type Monotube, coilover (gas-pressure)
Body 46mm ID snap-ring grooved
Front lift Up to 2.75 in with OE springs
Collapsed length 15.37 in
Extended length 20.83 in
Travel 5.46 in
Upper mount Stem
Lower mount Eye, 20.3mm
Shaft diameter 14mm
Finish Zinc plated
Reservoir No
Boot Not included

Vehicle fitment

It fits the 2004–2008 Ford F-150 and the 2006–2008 Lincoln Mark LT. The F-150 fit covers the 2004 through 2008 model years of that generation, and the Mark LT fit covers 2006 to 2008.

Ford F-150 models from 2009 onward, Ford Expedition models and Lincoln Navigator models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One front shock absorber. The boot is not included.

Installation notes

Because the lift and the nose-down correction both come from the spring seat position, measure the front ride height before and after installation. Check the front end alignment once the seat is set, since a changed ride height alters the camber and caster.

Fitment

VehicleYearsTrims
Ford F-1502004–2008FX2, Harley-Davidson Edition, King Ranch, Lariat, Limited, STX, THE 60TH ANNIVERSARY EDITION, XL, XLT
Lincoln Mark LT2006–2008Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-186698 fit a 2006 Ford F-150?

Yes. It fits the 2004 to 2008 Ford F-150, so a 2006 model is covered. Confirm the truck has coilover-style front suspension before ordering.

How much front lift does this shock provide?

Up to 2.75 inches with OE springs, depending on the application. The lift is set by choosing the spring seat groove, so the amount you gain depends on the groove you choose and the springs you keep.

Does the 24-186698 include a boot?

No. The boot is not included, so the shock arrives without one. If your current shock has a boot, plan to move it over or buy one separately before the install.

What should I inspect on the old front shock before replacing it?

Look for oil seepage around the shaft seal, a dented body, and a shaft that feels rough or uneven when pushed by hand. Worn bushings and a sagging spring seat are also common reasons to replace the unit alongside the shock.

Do front shocks need to be replaced in pairs?

Replacing both front shocks together is the usual approach, because a single new unit can damp differently from a worn one. Matched units help the truck track straight and keep the front end level side to side.
