Overview

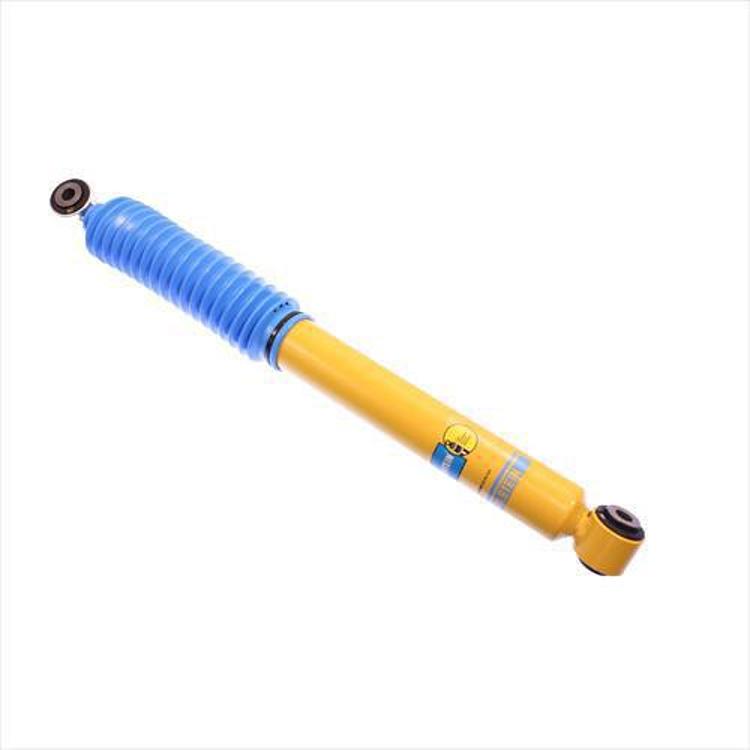

The Bilstein 4600 Series shock absorber, part number 24-185967, is a 2-inch monotube gas-charged shock for the 2004–2015 Nissan Titan in the LE, S, SE, SL, SV and XE trims. It comes in yellow with boots included and has no external reservoir.
The monotube gas-charged design moves heat from the oil into the outer surface of the shock body, where it dissipates more efficiently. A dividing piston lets the oil expand as temperatures climb, which limits aeration (foaming) and viscosity loss, so damping stays full as heat builds.
Key features
- Patented monotube gas-charged design that carries heat from the oil to the shock body surface.
- Dividing piston lets oil expand as heat builds, which Bilstein says limits foaming and viscosity loss.
- Tube made with a special extrusion method for a tight peak-to-valley tolerance and consistent wall thickness.
- Seamless monotube body that Bilstein credits with superior tube strength and heat dissipation.
- Piston head allows compression and rebound damping to be tuned independently.
- Uses a simpler build with fewer components than many twin tube and road sensing shocks.
- Yellow finish, boots included, and no reservoir.
Replacing in pairs
Replacing shocks in pairs is a practical way to keep both sides of the truck damping alike. A new shock beside a worn one can make the ride feel lopsided over bumps and during cornering. Compare the mounting ends on both sides before starting so you can plan any extra hardware in one trip.
Heat matters for this design, especially on long descents or when towing. Warm oil thins and foams, which reduces damping, so a shock that runs hot will feel softer than expected. Support the truck on stands rather than relying on a jack alone, and inspect the shaft seal and boot after the first few drives.
- Compare mounting ends on both sides
- Plan for towing and long descents
- Inspect the shaft seal after first drives
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-185967 |
| UPC | 651860565262 |
| Shock series | 4600 Series |
| Type | Monotube |
| Charge | Gas charged (gas pressure) |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots included | Yes |
Vehicle fitment
The manufacturer fitment list places this shock on the 2004–2015 Nissan Titan in the LE, S, SE, SL, SV and XE trims. Confirm your vehicle’s year, model and trim before ordering.
Other Nissan models and Titan years outside 2004–2015 fall outside this fitment.
Installation notes
Compare the new shock’s mounting ends with the original before you begin, and support the truck on stands rather than a jack alone.
What’s included
Boots are included. Check the contents against your original shock before installation, including any mounting hardware you need.
