Overview
The Bilstein 5160 Series front reservoir shock absorber, part number 25-187656, is a gas-charged mono tube shock for 2007–2018 Jeep Wrangler (JK) vehicles, covering the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims and the Unlimited versions.
This reservoir version installs in the stock shock mounting location, with no cutting or welding. The remote reservoir adds oil capacity and aids heat dissipation, and the digressive valving system delivers full damping capability immediately. The lift range is 1.5 to 3 in., so check it against your current lift before choosing this front unit.
Key features
- Digressive valving system with full damping capability right away
- Remote reservoir that boosts shock oil volume and heat dissipation
- Floating dividing piston in the reservoir for more shaft movement
- Reservoir mounting set up for each vehicle application
- Zinc plated Triple-C Technology finish with easy care
- Upper stem mount and 12.1mm lower eye mount
Front suspension considerations
On a Jeep Wrangler JK, the front shock controls axle movement on uneven trails and helps keep steering steady on the road. Front articulation puts the shock through large changes in angle, so the mounts and bushings need to move freely without binding. A reservoir design helps the shock keep damping consistent during repeated hard use, such as rock crawling or long grades.
When replacing front shocks, inspect the steering stabilizer, track bar and control arm bushings, since worn parts change how the new unit loads. Check the reservoir clearance against the tire and frame, and keep the reservoir clear of trail debris. Dust boots protect the shaft from grit, so inspect the shaft for pitting if the seal is damaged.
- Check the track bar and steering stabilizer
- Confirm reservoir clearance through full steering lock
- Inspect the shaft for pitting or scoring
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187656 |
| UPC | 651860644127 |
| Shock series | 5160 Series |
| Position | Front |
| Collapsed length | 14.53 in. |
| Extended length | 24.7 in. |
| Travel length | 10.17 in. |
| Lower mount | Eye 12.1mm |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | Yes |
| Finish | Zinc plated |
| Hydraulic / gas charged | Gas charged |
| Lift range | 1.5 to 3 in. |
| Boot included | No |
| Includes | Upper mount kit and reservoir mount kit |
| Sold as | Each |
Vehicle fitment
Bilstein’s front-position fitment for this shock is the 2007–2018 Jeep Wrangler (JK) in the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, plus the Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S and Unlimited X trims.
TJ, LJ and JL Wrangler models are not covered by this fitment, and neither are JK years before 2007 or after 2018. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This front unit includes an upper mount kit and a reservoir mount kit, plus detailed instructions. Set the reservoir up with those instructions, since the mounting configuration varies by vehicle application.
What’s included

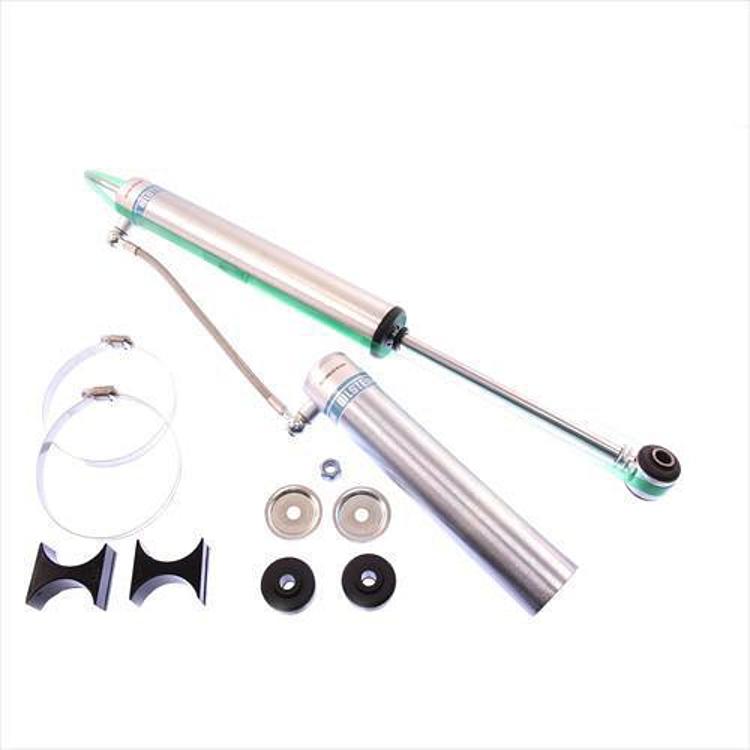

One 5160 Series front reservoir shock with the upper mount kit and reservoir mount kit.
Not included: a dust boot; this front shock does not come with one.
