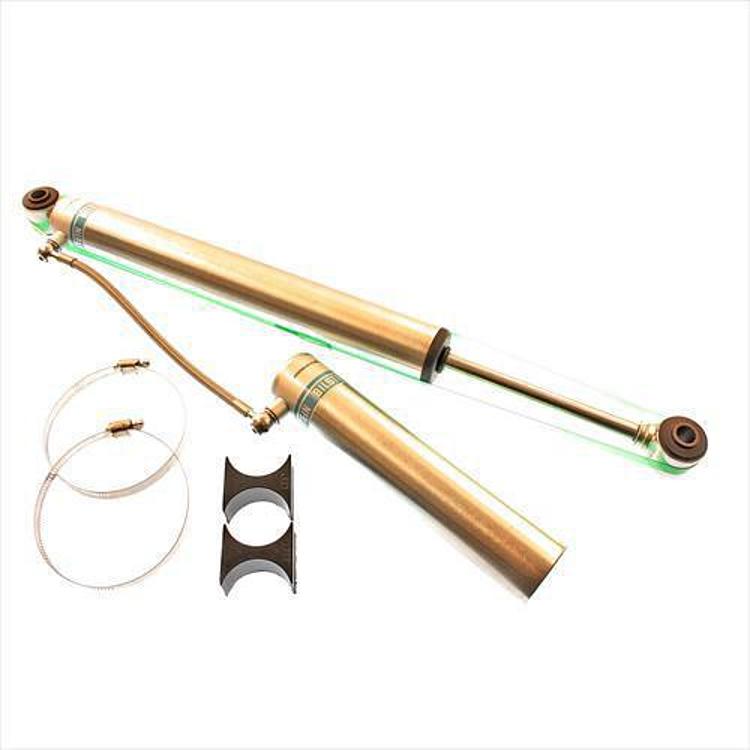

Bilstein 5160 Series Reservoir Shock Absorber – 25-177428

Bilstein

Shop GMC Sierra 1500 Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear reservoir shock for 1999–2006 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups, with 2007 Classic models on the manufacturer list
  • Bilstein 5160 Series, part number 25-177428, eye mounts at both ends, 13.11 in. travel
  • Collapsed length 18.27 in., extended length 31.38 in., mono tube body with remote reservoir
  • Reservoir mount kit included; no boot

Description

Overview

The Bilstein 25-177428 is a rear reservoir shock absorber from the 5160 Series for 1999–2006 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups, with 2007 Classic models also on the manufacturer list. It is rated for vehicles with a 4 inch lift and uses an eye mount at both the upper and lower ends, with 13.11 in. of travel between an 18.27 in. collapsed length and a 31.38 in. extended length.

The body is a 46mm ID smooth body with a mono tube design and a remote reservoir. The reservoir gives the shock more oil capacity for heat dissipation and damping sensitivity. The digressive valving produces full damping as soon as the shock moves, and the floating dividing piston in the reservoir allows more shaft movement. The design suits both off-road and on-road driving.

Key features

  • Eye mounts at both ends, each 14.4mm
  • 13.11 in. travel length between collapsed and extended lengths
  • Remote reservoir with floating dividing piston
  • Digressive valving for immediate full damping
  • Reservoir mounting configuration designed for each vehicle application
  • Triple-C Technology zinc plated finish

Eye mounts and hardware

Eye-type mounts depend on the bolt or pin size fitting the eye’s bore, so hardware matters as much as the shock itself. Before ordering replacement bushings or sleeves, measure the eye bore and check that the bolt fits without slop. A sleeve that is too thin for the bore can allow the shock to shift under load.

Rear shock mounts take heavy loads from the axle and bed, so bushing condition affects control and noise. Replace bushings that show cracks, flattened rubber or side play. When a reservoir is involved, check that the hose and reservoir do not touch the frame or driveshaft at full travel, then tighten fasteners after the first few drives.

  • Measure eye bore before installing
  • Replace cracked or flattened bushings
  • Check hose clearance at full extension
  • Recheck fasteners after the first drives

Specifications

Brand Bilstein
Part number 25-177428
UPC 651860663791
Series 5160 Series
Position Rear
Collapsed length 18.27 in.
Extended length 31.38 in.
Travel length 13.11 in.
Lower mount Eye 14.4mm
Upper mount Eye 14.4mm
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Reservoir Yes
Charge Gas charged
Finish Zinc plated
Lift height 4 in. lift
Boot included No
Mounting parts included Reservoir mount kit

Vehicle fitment

The manufacturer fitment list for this rear shock covers 1999–2006 Chevrolet Silverado 1500 (Base, Hybrid, LS, LT, WT and Z71), 2007 Chevrolet Silverado 1500 Classic (Hybrid, LS, LT and WT), 1999–2006 GMC Sierra 1500 (Base, HT, Hybrid, SL, SLE, SLT and WT) and 2007 GMC Sierra 1500 Classic (Hybrid, SL, SLE, SLT and WT). The 2007 Classic entries are the only model years after 2006 on the list.

Chevrolet Tahoe, Suburban and Avalanche, GMC Yukon and Yukon XL, and 2500 or 3500 series trucks are not on this list, so don’t assume they match. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The eye-type mounts at both ends must match the 14.4mm eye sizes in the specifications, so check your existing hardware before removing the original shock. The reservoir attaches with the included reservoir mount kit. Support the axle securely before you start, and follow the detailed instructions that come with the shock.

What’s included

Bilstein 5160 Series rear reservoir shock absorber, reservoir mount kit, and detailed instructions.

Not included: A boot.

SKU: BIL25-177428 Category:

Specification

Shipping weight 4.62 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15001999–2006Base, Hybrid, LS, LT, WT, Z71
Chevrolet Silverado 1500 Classic2007Hybrid, LS, LT, WT
GMC Sierra 15001999–2006Base, HT, Hybrid, SL, SLE, SLT, WT
GMC Sierra 1500 Classic2007Hybrid, SL, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-177428 fit a 2005 Chevrolet Silverado 1500?

Yes, the manufacturer fitment list includes 1999–2006 Chevrolet Silverado 1500 models in Base, Hybrid, LS, LT, WT and Z71 trims, which covers 2005. Confirm your vehicle's year, model and trim before ordering, since Tahoe and Suburban models are not on this list.

Is this a rear shock?

Yes. The position is rear. It uses an eye mount at both the upper and lower ends, with 14.4mm eyes, and the reservoir mounts with the reservoir mount kit included in the package.

What are the collapsed, extended and travel lengths?

The collapsed length is 18.27 in., the extended length is 31.38 in., and the travel length is 13.11 in. The shaft is 14mm, and the body is a 46mm ID smooth body with a mono tube design.

Does the Bilstein 25-177428 include a boot?

No. The shock is supplied without a boot. The package includes the reservoir mount kit and detailed instructions for installation.

What should I check on eye mounts before installing?

Measure the eye bore and the bolt or pin diameter, then check that the bushings are not cracked, flattened or loose. A snug fit without side play helps the shock control movement correctly.
