Bilstein 5160 Series Reservoir Shock Absorber – 25-242379

Bilstein

Shop Toyota Tacoma Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2005–2018 Toyota Tacoma per the manufacturer fitment list
  • Rear left position, direct fit, 0 to 1.5 in. lift range
  • Gas charged mono tube design with remote reservoir
  • Collapsed length 14.22 in, extended length 24.06 in, travel 9.84 in

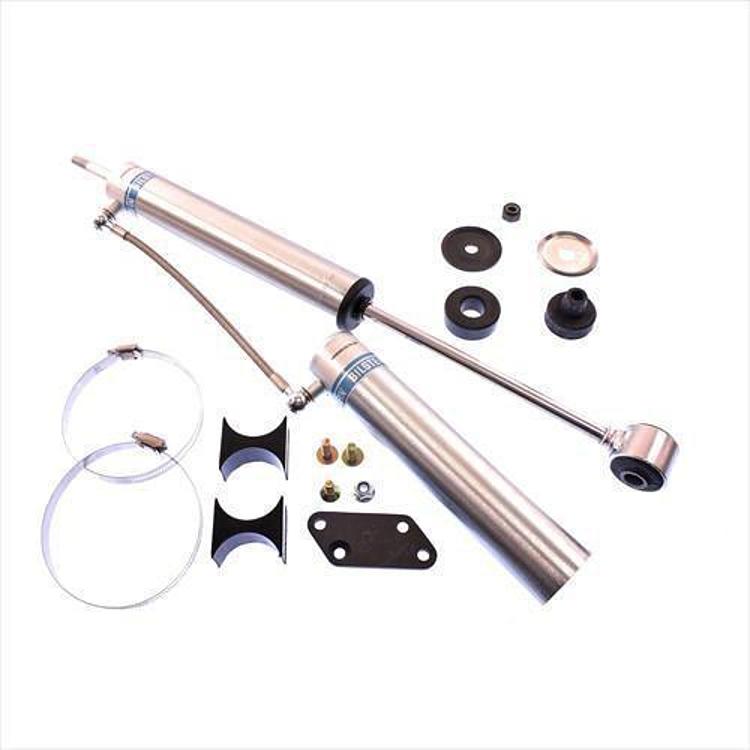

  • Upper mount kit and reservoir mount kit included

Description

Overview

The Bilstein 25-242379 is a rear left 5160 Series reservoir shock absorber for the 2005–2018 Toyota Tacoma. It mounts in the stock shock location with no cutting or welding required. It is a gas charged, mono tube shock with a remote reservoir, rated for 0 to 1.5 inches of lift.

The 5160 Series is a reservoir shock for pickups and SUVs, built for off-road and on-road use. The remote reservoir adds shock oil capacity for greater heat dissipation and damping sensitivity, and the floating dividing piston inside the reservoir allows more wheel travel and shaft movement.

Key features

  • Remote reservoir increases shock oil capacity for greater heat dissipation and damping sensitivity
  • Digressive valving system that produces full damping capability right away
  • Mono tube internal design
  • Floating dividing piston located in the reservoir for increased wheel travel
  • Reservoir mounting configuration designed for each vehicle application
  • Triple-C Technology finish for easy care and lasting appearance

Installing a reservoir shock

A reservoir shock mounts with extra hardware that has to be routed and secured carefully. Before lifting the truck, lay out the upper mount kit, reservoir mount kit and instructions, and check that the reservoir can sit clear of the frame, brake lines and wheel well at full compression.

Keeping the reservoir away from heat and debris matters. Position it where road spray and mud are not packed against it, and use the mounting points the kit provides rather than improvised brackets. A reservoir that rubs against a tire or frame will wear through its finish and can be damaged over time.

  • Test full compression and extension by hand before final tightening
  • Check the threaded stem and nut for correct seating
  • Keep the reservoir hose free of kinks and sharp edges

Specifications

Brand Bilstein
Part number 25-242379
UPC 651860750262
Shock series 5160 Series
Position Rear left
Fitment type Direct fit
Lift height 0 to 1.5 in.
Collapsed length 14.22 in.
Extended length 24.06 in.
Travel length 9.84 in.
Lower mount Eye, 12.1mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Hydraulic / gas charged Gas charged
Reservoir Yes
Finish Zinc plated
Boot included No

Vehicle fitment

It fits the 2005–2018 Toyota Tacoma in the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims. This part is for the rear left position only.

Years before 2005 and from 2019 onward fall outside this fit, and other Toyota models are not included.

Installation notes

The shock installs in the stock shock mounting location with no cutting or welding. Follow the included instructions for the reservoir mount. Support the vehicle safely on jack stands before removing the original shock.

What’s included

Upper mount kit and reservoir mount kit, along with detailed instructions.

Not included: Dust boot, since the shock is listed with no boot included.

SKU: BIL25-242379 Category:

Specification

Shipping weight 7.75 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2018Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-242379 fit a 2005 Toyota Tacoma?

Yes, the manufacturer fitment list includes the 2005–2018 Toyota Tacoma, with the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims. Confirm your year, model and trim before ordering.

Does this shock fit a Tacoma from 2019 or later?

No. This fit covers only 2005 to 2018 Toyota Tacoma models, so later generations are not covered. Confirm year, model and trim against your truck before ordering.

Is the Bilstein 25-242379 a left or right shock?

It is the rear left position. This part covers one side only, so confirm which side your vehicle needs before ordering.

What lift range does this shock cover?

It is rated for 0 to 1.5 inches of lift. The shock measures 14.22 inches collapsed and 24.06 inches extended, with 9.84 inches of travel.

Are the mounting parts included with this Bilstein shock?

Yes. The upper mount kit and reservoir mount kit are included, along with detailed instructions. A dust boot is not included.

What signs show a Tacoma rear reservoir shock is wearing out?

Oil beading on the shock body or reservoir, a rear end that keeps bouncing after bumps, and uneven rear tire wear are the usual signs. Compress the shock by hand; a slow or uneven return suggests internal wear.

Should a reservoir shock's bushings be replaced during service?

Yes, when the rubber shows cracking, flattening or tearing, replacing it is wise. Worn bushings allow extra movement that can change how the reservoir and shaft align, which speeds wear on the new shock.
