Overview

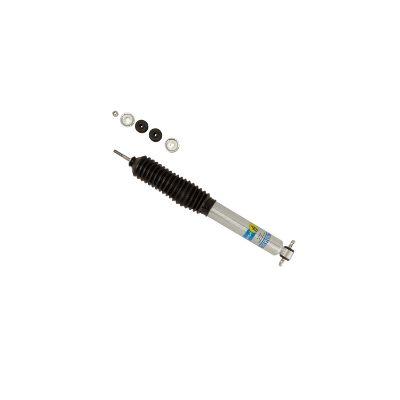

The Bilstein 5100 Series 24-293099 is a front shock absorber for the 2004–2006 Jeep Wrangler Unlimited (LJ) and the 1997–2006 Jeep Wrangler (TJ). It is rated for a front lifted height of 0 to 2 inches and is sold individually.
The shock has a 46mm zinc-plated smooth body and a monotube design. Its collapsed length is 13.06 inches and its extended length is 20.94 inches. The piston is digressive, so damping responds to changing road conditions, and each unit is tuned for its application. Front and rear units are sold separately, so match the position to the wheel you are replacing.
Key features
- Front lifted height of 0 to 2 in
- Zinc-plated 46mm smooth body
- Monotube design with a digressive piston
- Collapsed length 13.06 in and extended length 20.94 in
Front shocks on a Wrangler
On a solid-axle Wrangler the front shocks control how the axle moves over bumps and during hard braking. They work with the track bar and steering stabilizer to keep the front end composed. Off-road, they handle repeated compression when the axle articulates over rocks and ruts, which wears seals and bushings faster than pavement does. A worn front shock can cause wander, wheel hop on washboard roads and a loose feeling at highway speed.
When replacing a front shock, check the steering stabilizer, track bar ends and control arm bushings at the same time, since worn parts there can make a new shock feel less effective. Match the unit to the wheel you are replacing and inspect the eyelet bushings for cracking. Signs the old shock is worn include oil on the body, a bouncy front end after bumps and uneven front tire wear.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-293099 |
| Shock series | 5100 Series |
| Position | Front |
| Front lifted height | 0 to 2 in |
| Body diameter | 46mm |
| Collapsed length | 13.06 in |
| Extended length | 20.94 in |
| Shock type | Monotube |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2004 through 2006 Jeep Wrangler Unlimited (LJ) and the 1997 through 2006 Jeep Wrangler (TJ).
Wrangler models from 2007 onward and other Jeep models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Part 24-293099: one front shock absorber, sold individually.
